LED PCR CLASSIC STICK LAMP

Choose your product version

8.5W 827 Frosted E14

8.5W 827 Frosted E27

8.5W 827 Frosted E27

8.5W 840 Frosted E14

9.5W 827 Frosted E14

9.5W 827 Frosted E14

9.5W 827 Frosted E27

9.5W 840 Frosted E14

9.5W 840 Frosted E27

9.5W 840 Frosted E27

9.5W 865 Frosted E14

9.5W 865 Frosted E27

NEW

11W 827 FROSTED E27

NEW

11W 840 FROSTED E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Star Classic Stick 60 8.5W 827 Frosted E14 E14 8.5 W 220…240 V 15000 h 806 lm 60 W 200 ° No
LED Star Classic Stick 60 8.5W 827 Frosted E27 E27 8.5 W 220…240 V 15000 h 806 lm 60 W 200 ° No
LED Star Classic Stick 60 8.5W 827 Frosted E27 E27 8.5 W 220…240 V 15000 h 806 lm 60 W 200 ° No
LED Star Classic Stick 60 8.5W 840 Frosted E14 E14 8.5 W 220…240 V 15000 h 806 lm 60 W 200 ° No
LED Star Classic Stick 75 9.5W 827 Frosted E14 E14 9.5 W 220…240 V 15000 h 1055 lm 75 W 200 ° No
LED Star Classic Stick 75 9.5W 827 Frosted E14 E14 9.5 W 220…240 V 15000 h 1055 lm 75 W 200 ° No
LED Star Classic Stick 75 9.5W 827 Frosted E27 E27 9.5 W 220…240 V 15000 h 1055 lm 75 W 200 ° No
LED Star Classic Stick 75 9.5W 840 Frosted E14 E14 9.5 W 220…240 V 15000 h 1055 lm 75 W 200 ° No
LED Star Classic Stick 75 9.5W 840 Frosted E27 E27 9.5 W 220…240 V 15000 h 1055 lm 75 W 200 ° No
LED Star Classic Stick 75 9.5W 840 Frosted E27 E27 9.5 W 220…240 V 15000 h 1055 lm 75 W 200 ° No
LED Star Classic Stick 75 9.5W 865 Frosted E14 E14 9.5 W 220…240 V 15000 h 1055 lm 75 W 200 ° No
LED Star Classic Stick 75 9.5W 865 Frosted E27 E27 9.5 W 220…240 V 15000 h 1055 lm 75 W 200 ° No
LED STICK 95 11W 11W 827 FROSTED E27 E27 11 W 220…240 V 15000 h 1470 lm 95 W 240 ° No
LED STICK 95 11W 11W 840 FROSTED E27 E27 11 W 220…240 V 15000 h 1470 lm 95 W 240 ° No


LED Star Classic Stick 60 8.5W 827 Frosted E27

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Attractive lamp appearance
View all details
Product data sheet
Go to Predecessor product data

PRODUCT DETAILS

Electrical data

Nominal wattage 8.5 W
Construction wattage 8.50 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 60 W
Nominal current 60 mA
Type of current AC
Inrush current 7,04 A
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Max. lamp number on MCB B10 A 30
Max. lamp number on MCB B16 A 36
Total harmonic distortion 104.40 %
Power factor λ > 0.50

Photometrical data

Luminous flux 806 lm
Luminous efficacy 94 lm/W
Lumen main.fact.at end of nom.life time 0.93
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 200 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 118.00 mm
Diameter 37.00 mm
Maximum diameter 37 mm
Product weight 28.00 g

Temperatures & operating conditions

Ambient temperature range -40…+40 °C
Maximum temperature at tc test point 90 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.93

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class F 1)
Energy consumption 9.00 kWh/1000h
Type of protection IP20
Standards CE, UKCA, EAC
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

ILCOS DRSGT/F-7/827-230-E27-41
Order reference LEDSSTICK60 8,5

LOGISTICAL DATA

Temperature range at storage -40…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0.00 W
Claim of equivalent power Yes
Length 118.00 mm
Height 37.00 mm
Width 37.00 mm
Chromaticity coordinate x 0.4578
Chromaticity coordinate y 0.4101
R9 Colour rendering index 2.3
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.9125
LED light source replaces a fluorescent light source No
EPREL ID 1402980,523290,1838210,2190100
Model number AC31132,AC17504,AC55960,AC69376

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Attractive lamp appearance
Areas of application
  • All domestic rooms, especially where the lamps are visible
  • Wherever compact and efficient lamps are needed
  • Where the lamps need to last a long time or have to withstand frequent on/off switching
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to conventional lamps
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075059153 Folding box
1		 41 mm x 49 mm x 155 mm 44.00 g 0.31 dm³
4058075059160 Shipping box
10		 226 mm x 111 mm x 131 mm 489.00 g 3.29 dm³
4058075585775 Shipping box
6		 144 mm x 111 mm x 131 mm 327.00 g 2.09 dm³
Declarations of conformity
LED Stick lamp PDF (161.1 KB)
Declarations of conformity
LED CLASSIC / LED STIC K PDF (289.93 KB)
Declarations of conformity
Declaration of conform ity CE FTL Sticks PDF (309.56 KB)
PRODUCT DATASHEET
LEDSSTICK60 8W/827 230 VFRE2710X1ICEOSRAM PDF (215.65 KB)
PRODUCT DATASHEET
STSTICK60FR8W2700KE27e n PDF (284.97 KB)
Product datasheet -> old version of product
LEDStarClassicStick608 W827FrostedE27en PDF (280.76 KB)
Product image: white background, diagonal with OSRAM logo
LED STICK E27 FROSTED OSRAM JPG (1.07 MB)
Product image: white background, diagonal
LED STICK E27 FROSTED DIM OSRAM JPG (1.07 MB)
Product image: white background, diagonal
LED STICK Lamp TIF (1.16 MB)
Product image: white background, upright, OSRAM logo
LED STICK E27 FROSTED DIM OSRAM JPG (1.05 MB)
Product line drawing with letters
LED STICK Lamp SVG (8.63 KB)
Product line drawing with numbers
LED STICK E27 FROSTED OSRAM SVG (12.61 KB)
Product line drawing, front, no dimensions
LED STICK Lamp SVG (5.46 KB)

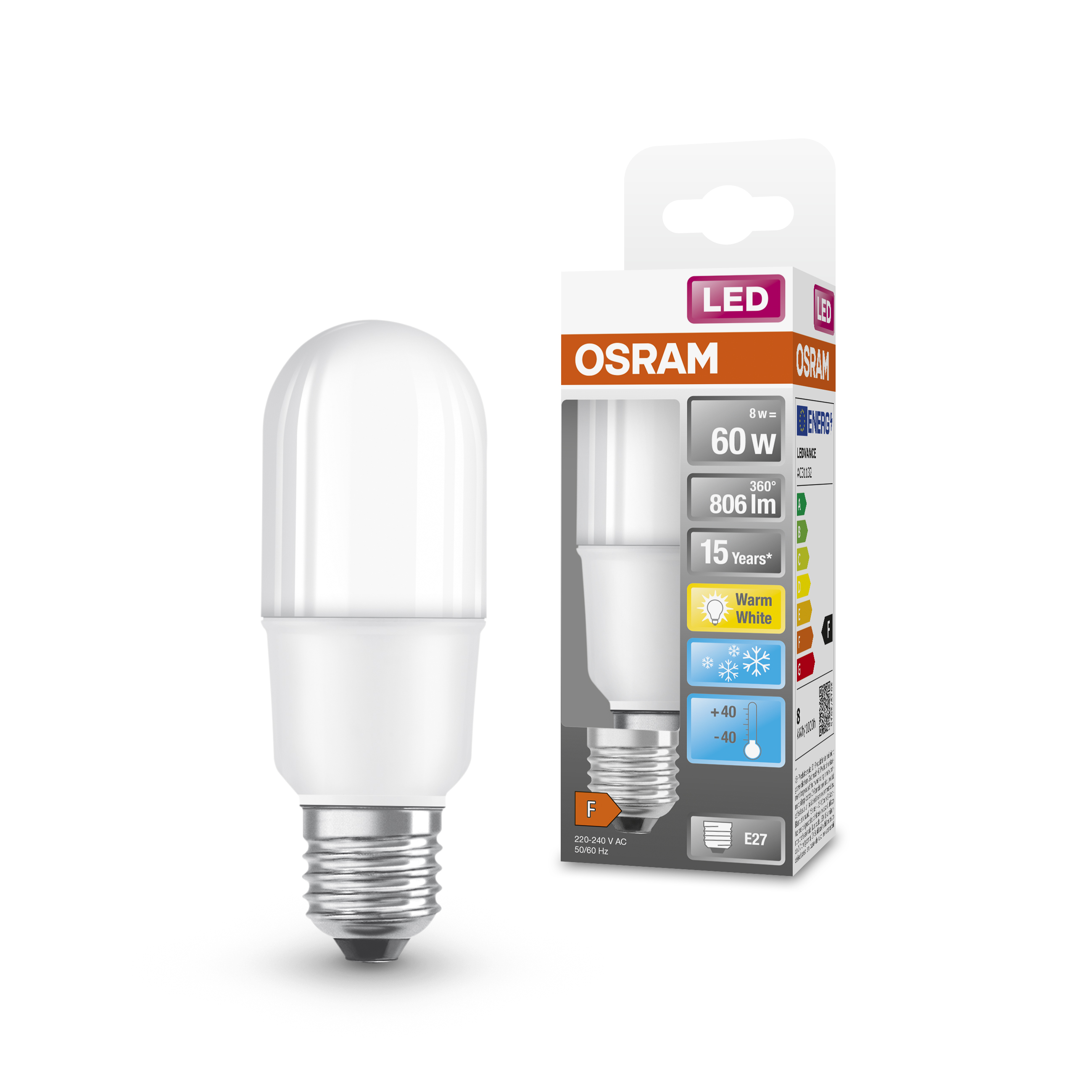

Combo Shot = Product Beauty Shot + Packaging Image
LED ST STICK 60 8.0W 8 27 FR E27 MiCh JPG (1.05 MB)

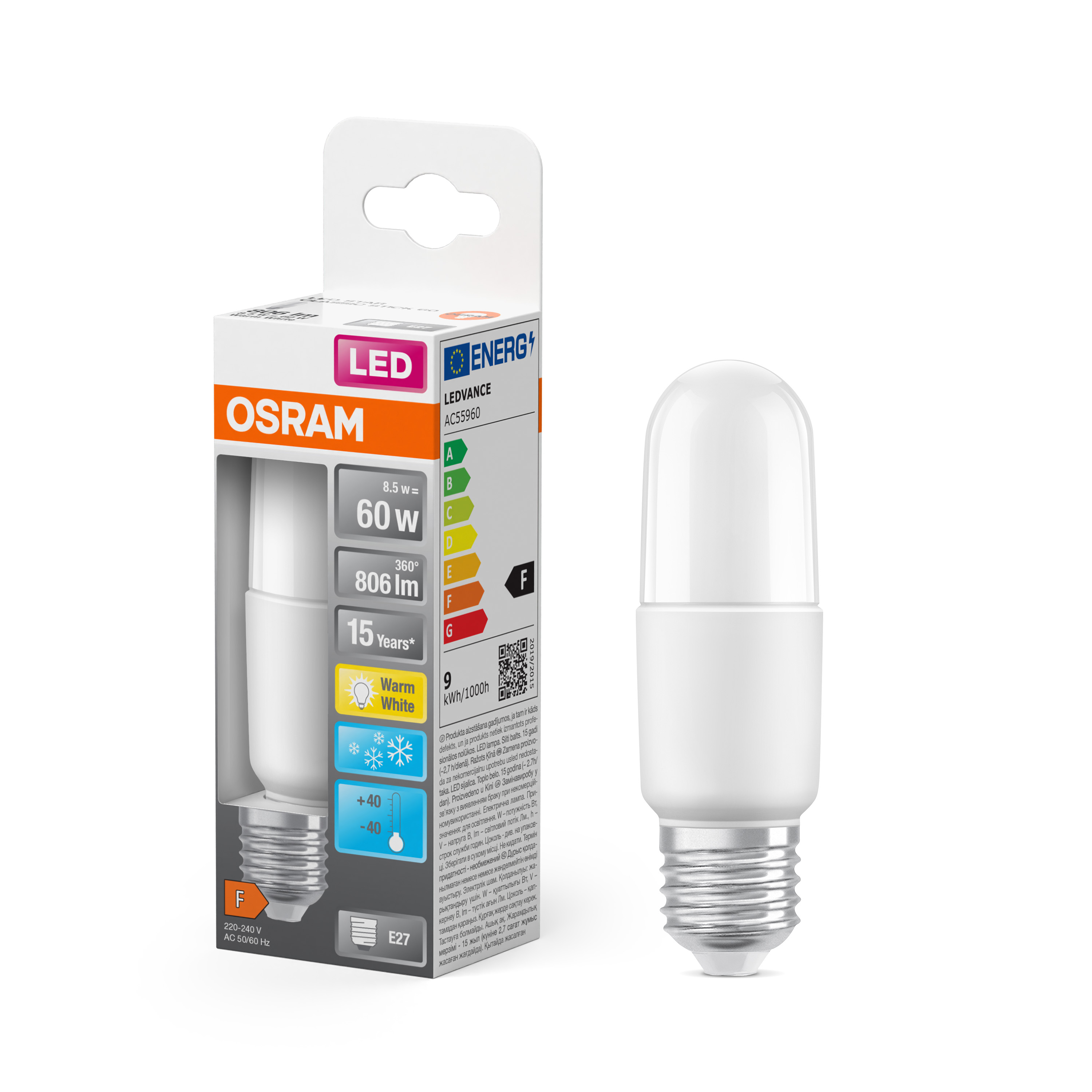

Combo Shot = Product Beauty Shot + Packaging Image
FC1 LED ST STICK 60 8W 827 FR E27 JPG (647.14 KB)

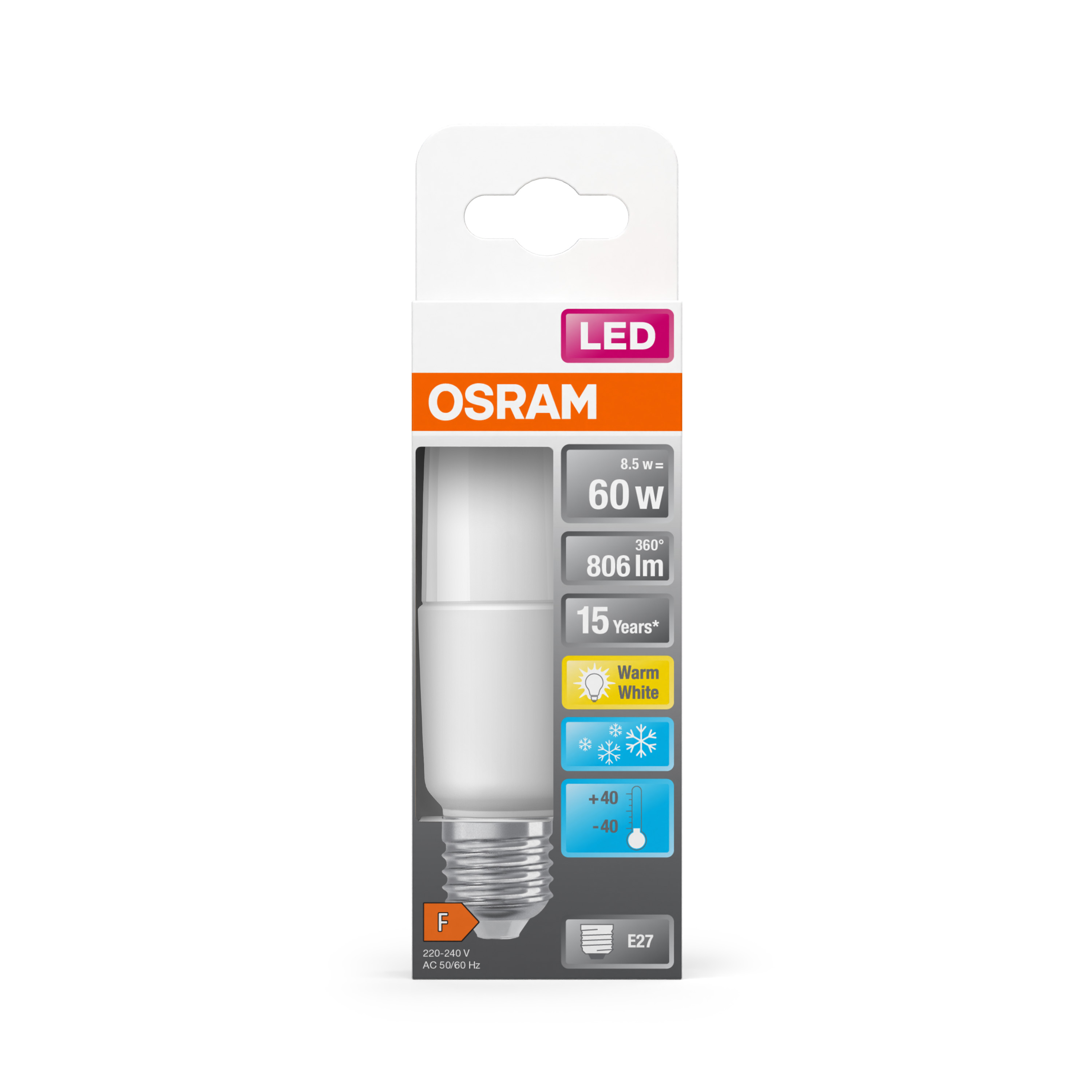

Packaging image, frontal
LED ST STICK 60 8.0W 8 27 FR E27 MiCh Front TIF (477.91 KB)

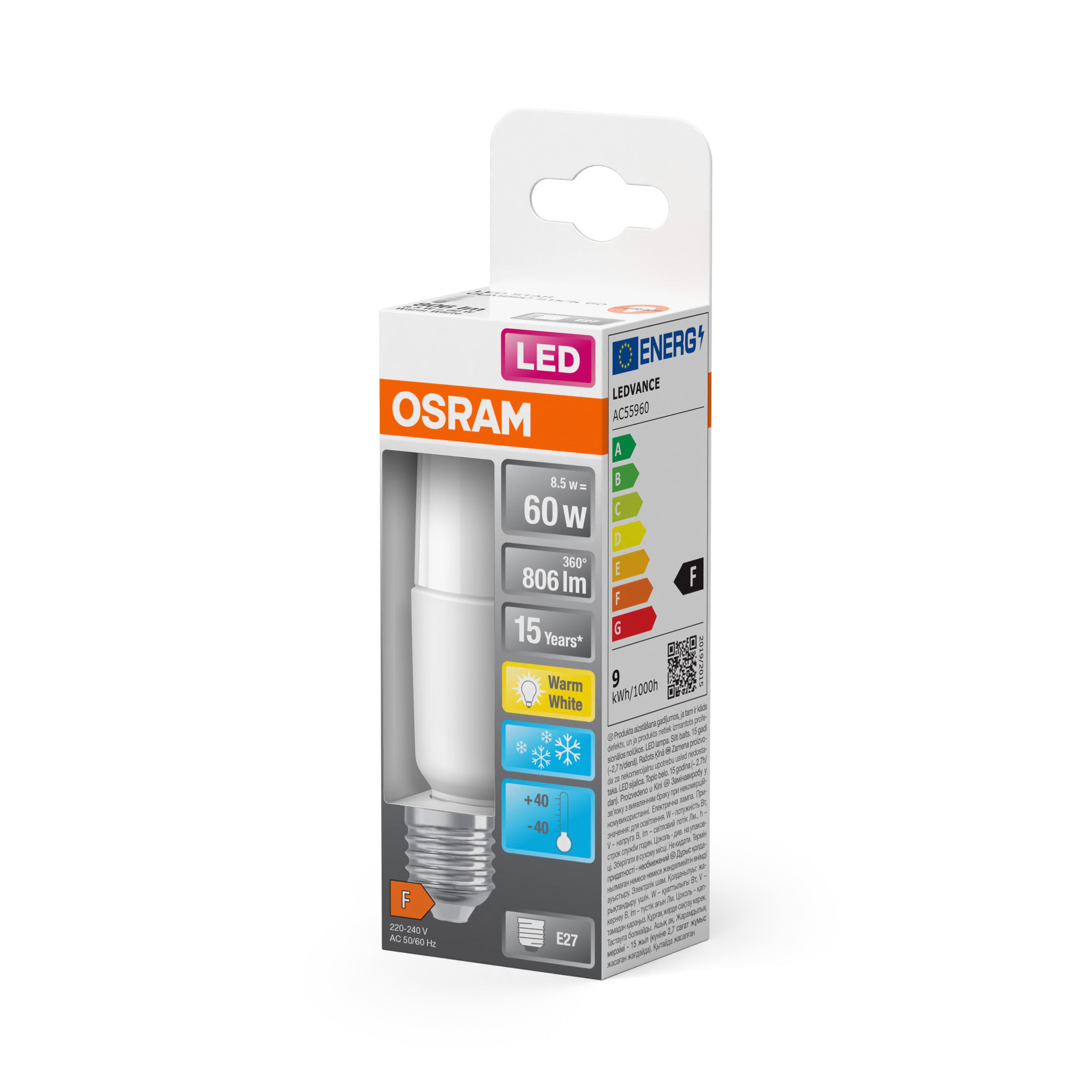

Packaging image, spacial
LED ST STICK 60 8.0W 8 27 FR E27 MiCh Side TIF (590.35 KB)
Energy label
EL-4058075059153-AC311 32 PDF (21.66 KB)
Energy label
EL-4058075059153-AC175 04 PDF (21.33 KB)
Energy label
EL-4058075059153-AC559 60 PDF (21.33 KB)
Energy label
EL-4058075059153-AC693 76 PDF (21.61 KB)
Logos and pictos
F left SVG (1.83 KB)
Logos and pictos
F left BW SVG (1.07 KB)
Logos and pictos
F right SVG (1.81 KB)
Logos and pictos
F right BW SVG (1.06 KB)
IES file (IES)
LEDSSTICK60 8W 827 FR OSRAM IES (30.39 KB)
Spectral power distribution
LISO spectral power di stribution 2700K CRI80 v1 PNG (110.19 KB)
EAN STK number EFO number
4058075059153 4730982 3760247
