Choose your product version
| Product description | Base (standard designation) | Nominal wattage | Nominal voltage | Nominal lamp life time | Nominal luminous flux | Claimed equiv. conventional lamp power | Beam angle | Dimmable |
|---|---|---|---|---|---|---|---|---|
| LED Star Classic Stick 60 8.5W 827 Frosted E14 | E14 | 8.5 W | 220…240 V | 15000 h | 806 lm | 60 W | 200 ° | No |
| LED Star Classic Stick 60 8.5W 827 Frosted E27 | E27 | 8.5 W | 220…240 V | 15000 h | 806 lm | 60 W | 200 ° | No |
| LED Star Classic Stick 60 8.5W 827 Frosted E27 | E27 | 8.5 W | 220…240 V | 15000 h | 806 lm | 60 W | 200 ° | No |
| LED Star Classic Stick 60 8.5W 840 Frosted E14 | E14 | 8.5 W | 220…240 V | 15000 h | 806 lm | 60 W | 200 ° | No |
| LED Star Classic Stick 75 9.5W 827 Frosted E14 | E14 | 9.5 W | 220…240 V | 15000 h | 1055 lm | 75 W | 200 ° | No |
| LED Star Classic Stick 75 9.5W 827 Frosted E14 | E14 | 9.5 W | 220…240 V | 15000 h | 1055 lm | 75 W | 200 ° | No |
| LED Star Classic Stick 75 9.5W 827 Frosted E27 | E27 | 9.5 W | 220…240 V | 15000 h | 1055 lm | 75 W | 200 ° | No |
| LED Star Classic Stick 75 9.5W 840 Frosted E14 | E14 | 9.5 W | 220…240 V | 15000 h | 1055 lm | 75 W | 200 ° | No |
| LED Star Classic Stick 75 9.5W 840 Frosted E27 | E27 | 9.5 W | 220…240 V | 15000 h | 1055 lm | 75 W | 200 ° | No |
| LED Star Classic Stick 75 9.5W 840 Frosted E27 | E27 | 9.5 W | 220…240 V | 15000 h | 1055 lm | 75 W | 200 ° | No |
| LED Star Classic Stick 75 9.5W 865 Frosted E14 | E14 | 9.5 W | 220…240 V | 15000 h | 1055 lm | 75 W | 200 ° | No |
| LED Star Classic Stick 75 9.5W 865 Frosted E27 | E27 | 9.5 W | 220…240 V | 15000 h | 1055 lm | 75 W | 200 ° | No |
| LED STICK 95 11W 11W 827 FROSTED E27 | E27 | 11 W | 220…240 V | 15000 h | 1470 lm | 95 W | 240 ° | No |
| LED STICK 95 11W 11W 840 FROSTED E27 | E27 | 11 W | 220…240 V | 15000 h | 1470 lm | 95 W | 240 ° | No |
| Nominal wattage | 9.5 W |
| Construction wattage | 9.50 W |
| Nominal voltage | 220…240 V |
| Operating mode | AC Mains |
| Claimed equiv. conventional lamp power | 75 W |
| Nominal current | 68 mA |
| Type of current | AC |
| Inrush current | 7,04 A |
| Operating frequency | 50…60 Hz |
| Mains frequency | 50…60 Hz |
| Max. lamp number on MCB B10 A | 30 |
| Max. lamp number on MCB B16 A | 36 |
| Total harmonic distortion | 107 % |
| Power factor λ | > 0.50 |
| Luminous flux | 1055 lm |
| Luminous efficacy | 111 lm/W |
| Lumen main.fact.at end of nom.life time | 0.93 |
| Light color (designation) | Cool Daylight |

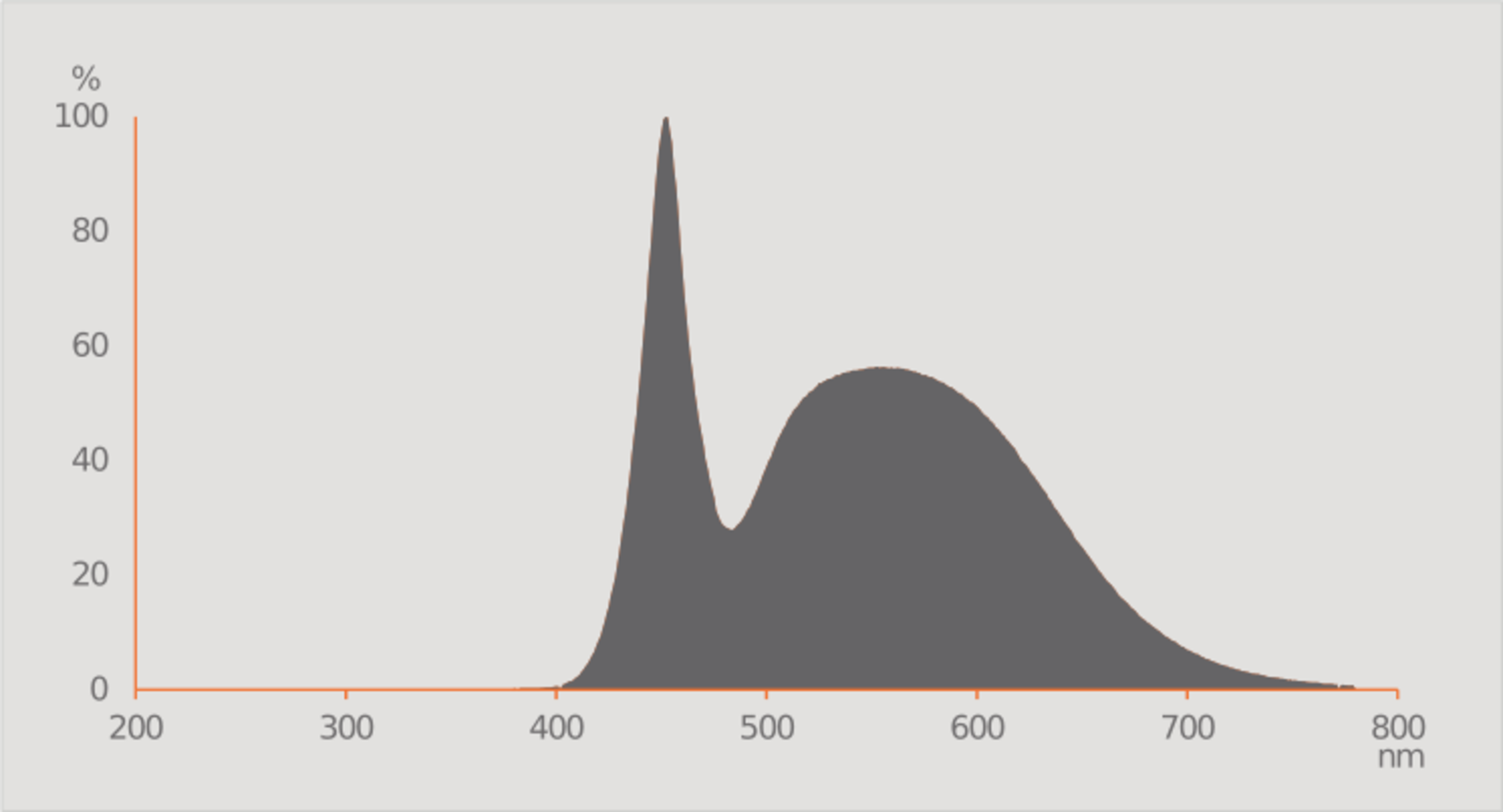

| Color temperature | 6500 K |
| Color rendering index Ra | 80 |
| Light color | 865 |
| Standard deviation of color matching | ≤6 sdcm |
| Flickering metric (Pst LM) | 1.0 |
| Stroboscope effect metric (SVM) | 0.4 |
| Beam angle | 200 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
| Overall length | 120.00 mm |
| Diameter | 37.00 mm |
| Maximum diameter | 37 mm |
| Product weight | 25.00 g |
| Ambient temperature range | -20…+40 °C |
| Maximum temperature at tc test point | 90 °C |
| Lifespan L70/B50 at 25 °C | 15000 h |
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.93 |
| Base (standard designation) | E14 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Frosted |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
| Dimmable | No |
| Energy efficiency class | E 1) |
| Energy consumption | 10.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE, UKCA, EAC |
| Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
| Order reference | LEDSSTICK75 9,5 |
| Temperature range at storage | -40…+80 °C |
| Lighting technology used | LED |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Light source cap-type (or other electric interface) | E14 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Standby power | 0.00 W |
| Claim of equivalent power | Yes |
| Length | 120.00 mm |
| Height | 37.00 mm |
| Width | 37.00 mm |
| Chromaticity coordinate x | 0.3123 |
| Chromaticity coordinate y | 0.3283 |
| R9 Colour rendering index | 2.4 |
| Beam angle correspondence | SPHERE_360 |
| Survival factor | 0.90 |
| Displacement factor | 0.978 |
| LED light source replaces a fluorescent light source | No |
| EPREL ID | 1403078,523298,1838217,2190096 |
| Model number | AC31140,AC25573,AC55967,AC69383 |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075466272 | Folding box 1 |
41 mm x 49 mm x 155 mm | 43.00 g | 0.31 dm³ |
| 4058075586192 | Shipping box 6 |
144 mm x 111 mm x 131 mm | 280.00 g | 2.09 dm³ |
| 4058075466289 | Shipping box 10 |
226 mm x 111 mm x 131 mm | 616.00 g | 3.29 dm³ |
