LED TUBE T5 HF

Choose your product version

549 mm 7W 830

549 mm 7W 840

849 mm 10W 830

849 mm 10W 840

1149 mm 16W 830

1149 mm 16W 840

1149 mm 26W 830

1149 mm 26W 840

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED TUBE T5 HF HE14 549 mm 7W 830 G5 7 W 40…70 V 30000 h 900 lm 14 W 190 ° No
LED TUBE T5 HF HE14 549 mm 7W 840 G5 7 W 40…70 V 30000 h 1000 lm 14 W 190 ° No
LED TUBE T5 HF HE21 849 mm 10W 830 G5 10 W 50…90 V 30000 h 1350 lm 21 W 190 ° No
LED TUBE T5 HF HE21 849 mm 10W 840 G5 10 W 50…90 V 30000 h 1500 lm 21 W 190 ° No
LED TUBE T5 HF HE28 1149 mm 16W 830 G5 16 W 110…160 V 30000 h 2160 lm 28 W 190 ° No
LED TUBE T5 HF HE28 1149 mm 16W 840 G5 16 W 110…160 V 30000 h 2400 lm 28 W 190 ° No
LED TUBE T5 HF HO54 1149 mm 26W 830 G5 26 W 50…90 V 30000 h 3600 lm 54 W 190 ° No
LED TUBE T5 HF HO54 1149 mm 26W 840 G5 26 W 50…90 V 30000 h 4000 lm 54 W 190 ° No


LED TUBE T5 HF HE21 849 mm 10W 830

Product benefits
  • No bending thanks to glass technology
  • Quick, simple and safe replacement without rewiring
  • High luminous flux for sophisticated lighting tasks
  • Also suitable for operation at low temperatures
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 10 W
Construction wattage 10.00 W
Nominal voltage 50…90 V
Operating mode Electronic control gear (ECG)
Nominal current 193 mA
Type of current AC
Inrush current 12 A
Operating frequency 25…75 kHz
Mains frequency 25…75 kHz
Max. lamp number on MCB B10 A 17
Max. lamp number on MCB B16 A 28
Total harmonic distortion 15 %
Power factor λ > 0.80

Photometrical data

Luminous flux 1350 lm
Luminous efficacy 135 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra 80
Light color 830
Standard deviation of color matching ≤5 sdcm
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 190 °
Warm-up time (60 %) ‹ 2.00 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 863.00 mm
Length with base excl. base pins/connection 849.00 mm
Diameter 18.50 mm
Tube diameter 16 mm
Maximum diameter 19 mm
Product weight 106.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C 1)
Maximum temperature at tc test point 70 °C
Performance temp. acc. to IEC 62717 60 °C 2)

1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire
2) Tp rated. Tp point coincides with Tc point - marked on device

Lifespan

Lifespan L70/B50 at 25 °C 30000 h
Number of switching cycles 200000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G5
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 10.00 kWh/1000h
Type of protection IP20
Standards CE, UKCA, EAC
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDTUBE T5 HF H

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) G5
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Networked standby power for CLS 0 W
Claim of equivalent power No
Length 863.00 mm
Height 18.50 mm
Width 18.50 mm
Chromaticity coordinate x 0.434
Chromaticity coordinate y 0.403
R9 Colour rendering index 80
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor 0.9
LED light source replaces a fluorescent light source No
EPREL ID 1407635,1317791,2209918
Model number AC44159,AC38764,AC70947

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • No bending thanks to glass technology
  • Quick, simple and safe replacement without rewiring
  • High luminous flux for sophisticated lighting tasks
  • Also suitable for operation at low temperatures
Areas of application
  • General illumination within ambient temperatures from -20…+45 °C
  • Offices, public buildings
  • Supermarkets and department stores
  • Industry
Product features
  • Retrofit replacement of existing T5 lamps on HF ballast installations
  • Lamp tube made of glass with splinter protection e.g. for food industry applications
  • High color consistency: ≤ 5 sdcm
  • Lifetime up to 30,000 h
  • Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
  • Type of protection: IP20
  • Compatible with many common electronic control gears (see also compatibility list)
Legal advice
  • When used to replace a T5 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
  • Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
  • The operating temperature range of LED tube is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
  • Not suitable for emergency lighting.
References / Links
  • For current information see www.ledvance.com/osram-led-tube
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075823853 Sleeve
1		 910 mm x 46 mm x 17 mm 138.00 g 0.71 dm³
4058075823860 Shipping box
10		 933 mm x 232 mm x 46 mm 1699.00 g 9.96 dm³
User instruction / safety instructions
PDF (2.89 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
LED TUBE T5 HF PDF (391.36 KB)
Declarations of conformity
LEDTUBE PDF (247.47 KB)
Product datasheet -> old version of product
LEDTUBET5HFHE21849mm10 W830en PDF (437.12 KB)
Product image: white background, diagonal with OSRAM logo
T5 OSRAM SubstiTube TIF (146.04 MB)
Product image: white background, diagonal
LED TUBE T5 AC HF JPG (877.8 KB)
Product image: white background, horizontal, OSRAM logo
T5 LED tube TIF (72.64 MB)
Product image: white background, horizontal, OSRAM logo
T5 OSRAM SubstiTube ho rizontal JPG (122.66 KB)
Product image: white background, horizontal
LED TUBE T5 AC HF JPG (653.78 KB)
Product image: white background, upright, OSRAM logo
T5 LED tube TIF (72.64 MB)
Product image: white background, upright
LED TUBE T5 AC HF JPG (654.05 KB)
Product line drawing with letters
LED TUBE T5 AC HF SVG (13.26 KB)
Product line drawing with numbers
LEDTUBE T5 HF_AC 849mm SVG (16.48 KB)
Product line drawing - technical
LEDTUBE T5 HF_AC SVG (7.5 KB)

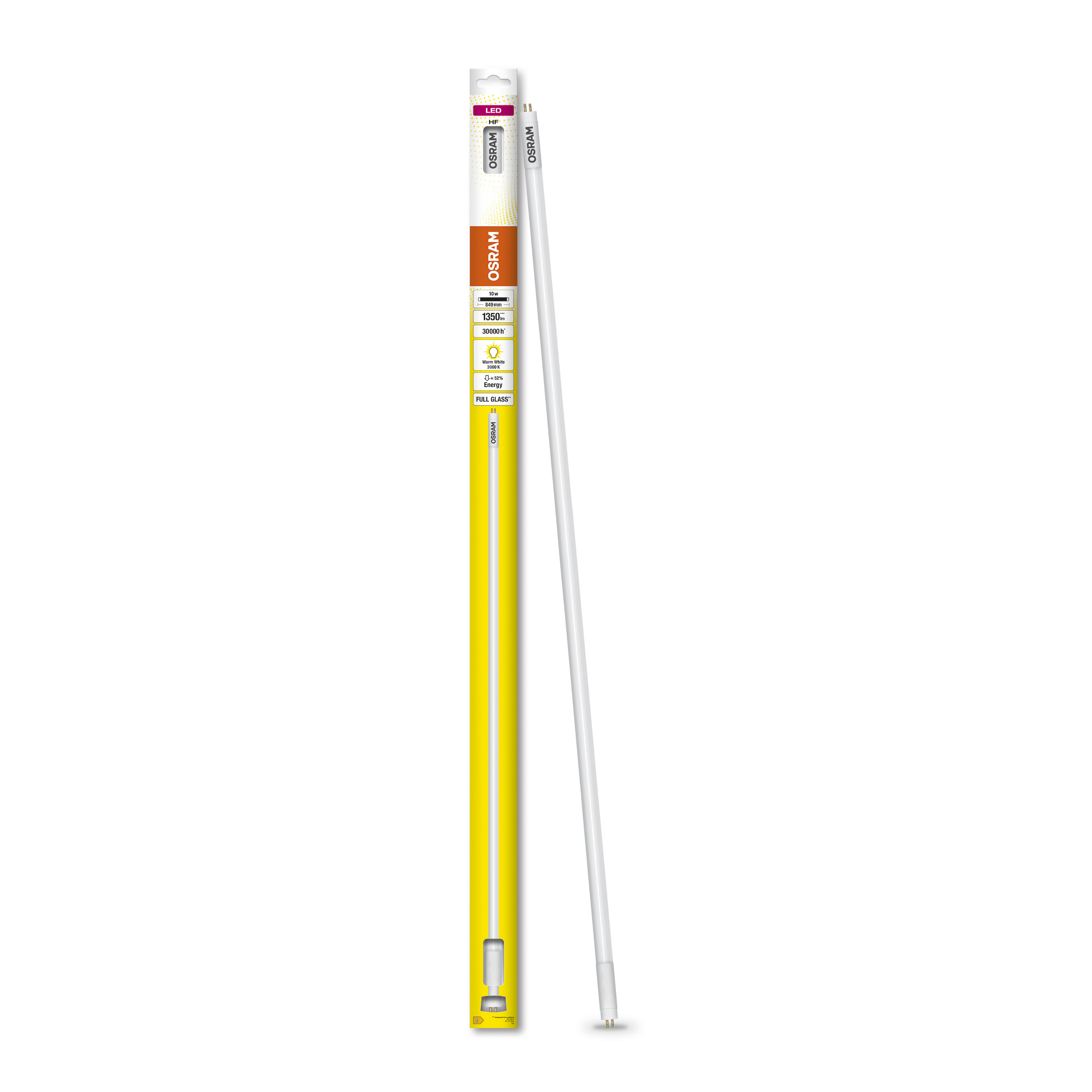

Combo Shot = Product Beauty Shot + Packaging Image
LEDTUBE T5 HF HE21 849 10W 830 G5 MiCh JPG (750.7 KB)

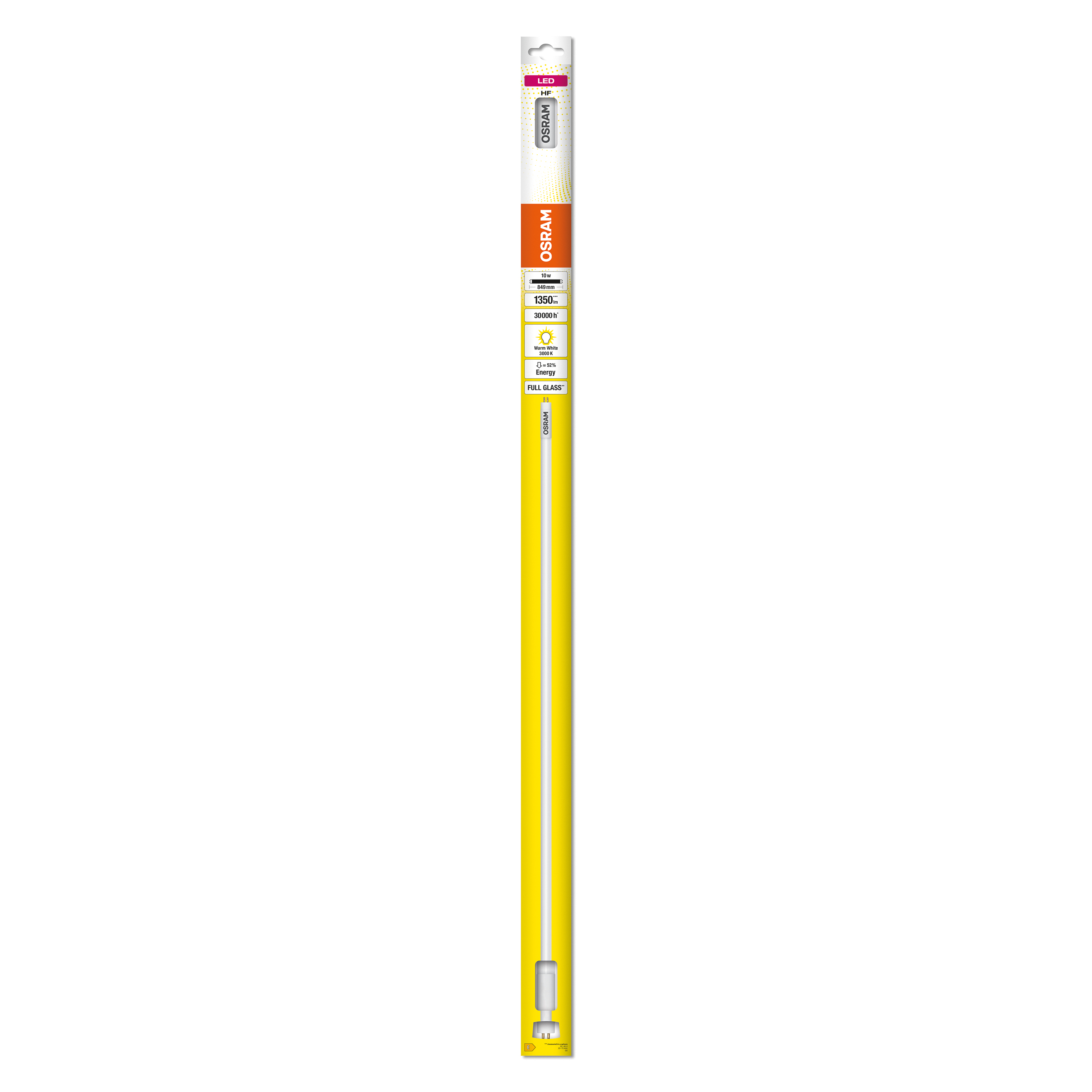

Packaging image, frontal
LEDTUBE T5 HF HE21 849 10W 830 G5 MiCh JPG (893.66 KB)

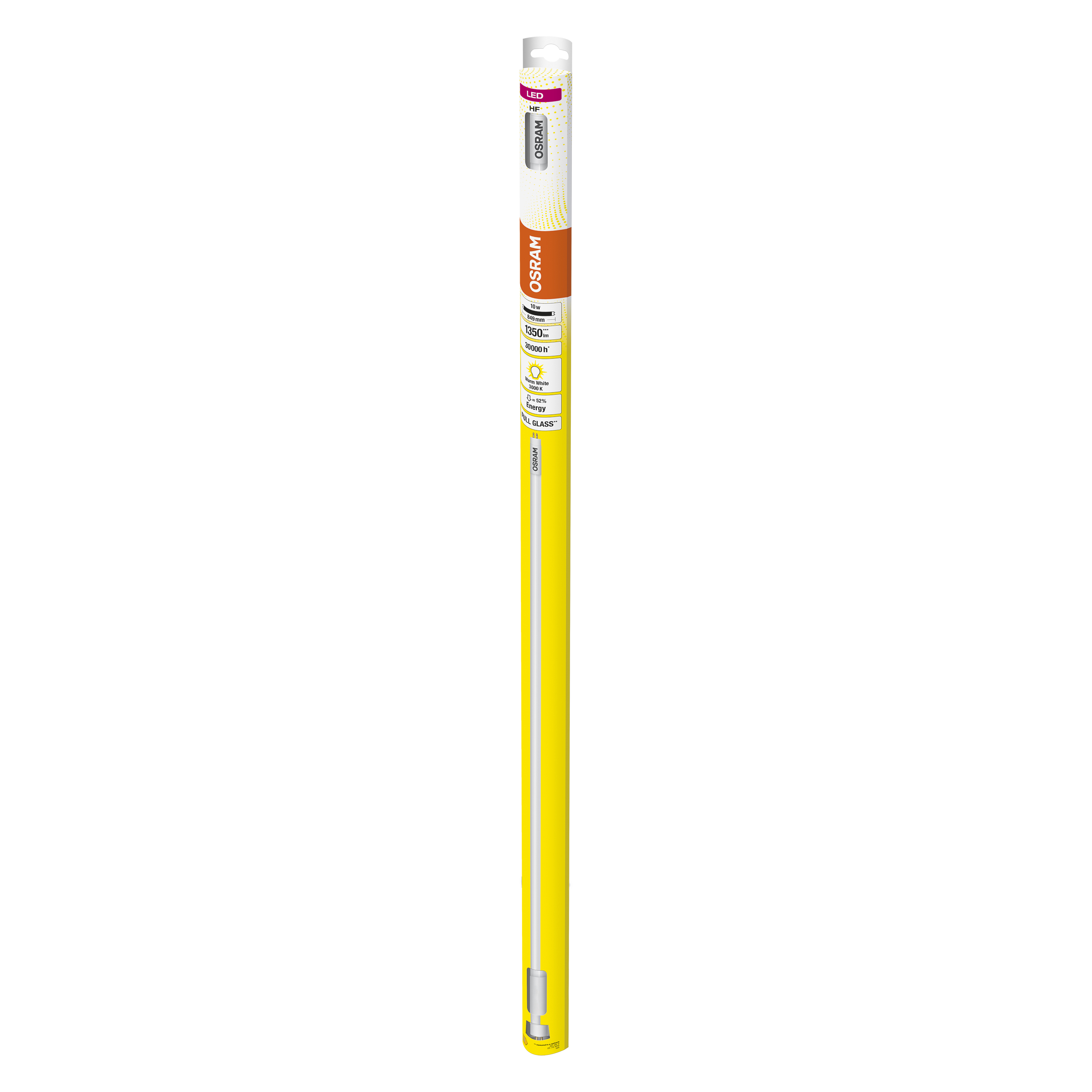

Packaging image, spacial
LEDTUBE T5 HF HE21 849 10W 830 G5 MiCh JPG (849.69 KB)
Energy label
EL-4058075823853-AC387 64 PDF (21.97 KB)
Energy label
EL-4058075823853-AC709 47 PDF (21.27 KB)
Logos and pictos
E left SVG (1.9 KB)
Logos and pictos
E left BW SVG (1.07 KB)
Logos and pictos
E right SVG (1.86 KB)
Logos and pictos
E right BW SVG (1.07 KB)
IES file (IES)
LEDTUBE T5 HF HE21 849 10W 830 OSRAM IES (14.42 KB)
IES file (IES)
LEDTUBE T5 HF HE21 849 11W 830 OSRAM IES (14.43 KB)
LDT file (Eulumdat)
LEDTUBE T5 HF HE21 849 10W 830 OSRAM LDT (10.98 KB)
LDT file (Eulumdat)
LEDTUBE T5 HF HE21 849 11W 830 OSRAM LDT (12.05 KB)

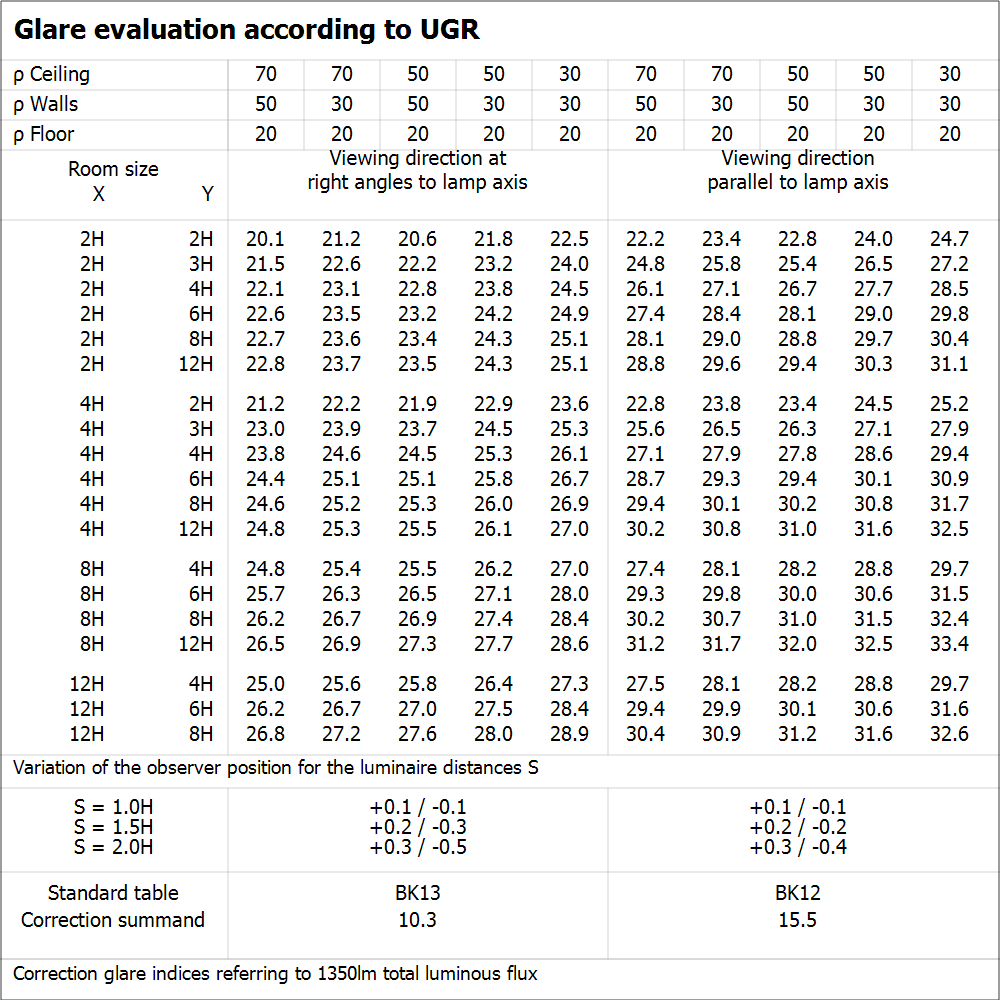

UGR file (UGR table)
