Product description | Base (standard designation) | Nominal wattage | Nominal voltage | Nominal lamp life time | Nominal luminous flux | |||
---|---|---|---|---|---|---|---|---|
LED TUBE T5 HF HE14 549 mm 7W 830 | G5 | 7 W | 40…70 V | 30000 h | 1000 lm | |||
LED TUBE T5 HF HE14 549 mm 7W 840 | G5 | 7 W | 40…70 V | 30000 h | 1050 lm | |||
LED TUBE T5 HF HE21 849 mm 10W 830 | G5 | 11 W | 50…90 V | 30000 h | 1550 lm | |||
LED TUBE T5 HF HE21 849 mm 10W 840 | G5 | 11 W | 50…90 V | 30000 h | 1700 lm | |||
LED TUBE T5 HF HE28 1149 mm 16W 830 | G5 | 16 W | 110…160 V | 30000 h | 2160 lm | 28 W | 190 ° | No |
LED TUBE T5 HF HE28 1149 mm 16W 840 | G5 | 16 W | 110…160 V | 30000 h | 2400 lm | 28 W | 190 ° | No |
LED TUBE T5 HF HO54 1149 mm 26W 830 | G5 | 26 W | 50…90 V | 30000 h | 3600 lm | 54 W | 190 ° | No |
LED TUBE T5 HF HO54 1149 mm 26W 840 | G5 | 26 W | 50…90 V | 30000 h | 4000 lm | 54 W | 190 ° | No |
Nominal wattage | 7 W |
Construction wattage | 7.00 W |
Nominal voltage | 40…70 V |
Operating mode | Electronic control gear (ECG) |
Nominal current | 185 mA |
Type of current | AC |
Inrush current | 12 A |
Operating frequency | 25…75 kHz |
Mains frequency | 25…75 kHz |
Max. lamp number on MCB B10 A | 17 |
Max. lamp number on MCB B16 A | 28 |
Total harmonic distortion | 20 % |
Luminous flux | 1050 lm |
Luminous efficacy | 150 lm/W |
Light color (designation) | Cool White |
Color temperature | 4000 K |
Color rendering index Ra | 80 |
Light color | 840 |
Rated LLMF at 6,000 h | 0.90 |
Flickering metric (Pst LM) | 1 |
Stroboscope effect metric (SVM) | 0.4 |
Overall length | 563.00 mm |
Length with base excl. base pins/connection | 549.00 mm |
Diameter | 18.50 mm |
Tube diameter | 16 mm |
Product weight | 77.00 g |
Ambient temperature range | -20…+45 °C 1) |
Maximum temperature at tc test point | 70 °C |
Performance temp. acc. to IEC 62717 | 50 °C 2) |
1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire
2) Tp rated. Tp point coincides with Tc point - marked on device
Lifespan L70/B50 at 25 °C | 30000 h |
Base (standard designation) | G5 |
Mercury-free | Yes |
Design / version | Frosted |
Energy efficiency class | D 1) |
Type of protection | IP20 |
Standards | CE, UKCA, EAC |
Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Order reference | LEDTUBE T5 HF H |
Temperature range at storage | -20…+80 °C |
Lighting technology used | LED |
Non-directional or directional | NDLS |
Mains or non-mains | NMLS |
Light source cap-type (or other electric interface) | G5 |
Connected light source (CLS) | No |
Color-tuneable light source | No |
Envelope | No |
High luminance light source | No |
Anti-glare shield | No |
Correlated colour temperature type | SINGLE_VALUE |
Standby power | 0 W |
Networked standby power for CLS | 0 W |
Claim of equivalent power | No |
Length | 563.00 mm |
Height | 18.50 mm |
Width | 18.50 mm |
Chromaticity coordinate x | 0.382 |
Chromaticity coordinate y | 0.38 |
R9 Colour rendering index | 80 |
Beam angle correspondence | SPHERE_360 |
Survival factor | 0.9 |
Displacement factor | 0.9 |
LED light source replaces a fluorescent light source | No |
EPREL ID | 1407638,1317789,2209924 |
Model number | AC44163,AC38768,AC70938 |
Quantity of precious metals | Contains at least 10 mg |
Quantity of rare earths | Contains at least 1 mg |
Minimum rate of recycled material in packaging | 80 % 1) |
Minimum percentage of recycled content in the product | 0 % 1) |
Product recyclability | Mostly recyclable product 1) |
Packaging recyclability | Mostly recyclable packaging 1) |
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
---|---|---|---|---|

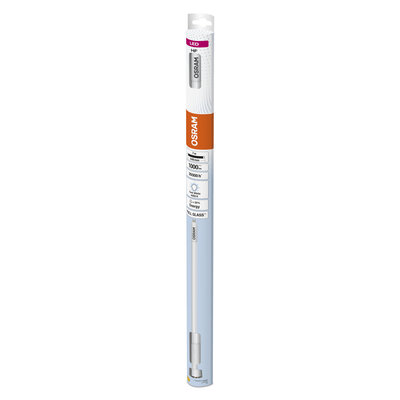

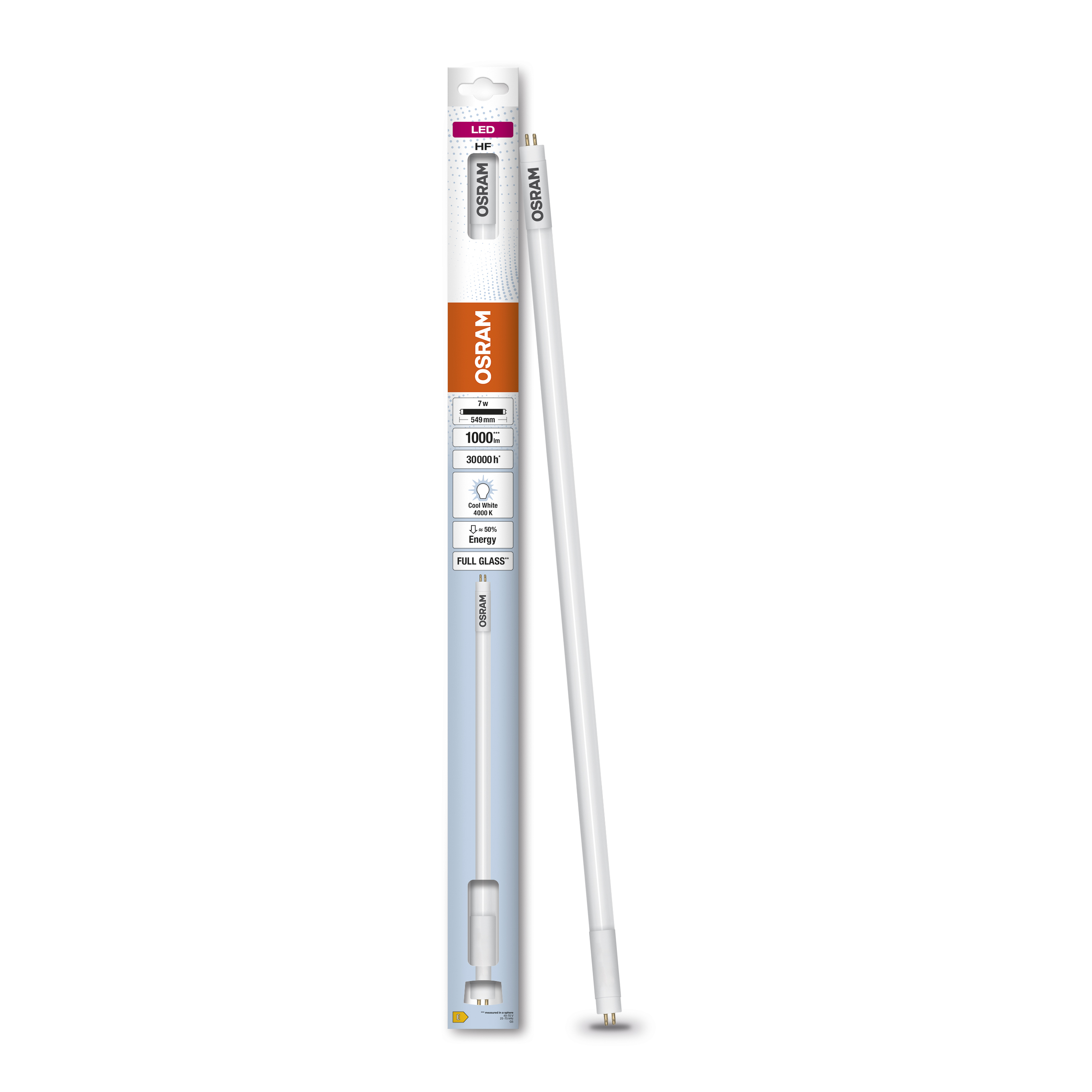

4058075823914 | Sleeve 1 |
620 mm x 46 mm x 17 mm | 99.00 g | 0.48 dm³ |
4058075823921 | Shipping box 10 |
641 mm x 232 mm x 48 mm | 1211.00 g | 7.14 dm³ |
