HID LED Highbay Universal P

Choose your product version

14000 LM 105W 840 E40

21000 LM 150W 840 E40

25000 LM 160W 840 E40

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
HID LED HIGHBAY UNIVERSAL P 14000 LM 105W 840 E40 E40 105 W 220…240 V 50000 h 14000 lm 250 W 100 ° No
HID LED HIGHBAY UNIVERSAL P 21000 LM 150W 840 E40 E40 150 W 220…240 V 50000 h 21000 lm 400 W 100 ° No
HID LED HIGHBAY UNIVERSAL P 25000 LM 160W 840 E40 E40 160 W 220…240 V 50000 h 25000 lm 400 W 100 ° No


HID LED HIGHBAY UNIVERSAL P 14000 LM 105W 840 E40

Product benefits
  • Direct replacement for traditional HID lamps thanks to CCG and ignitor compatibility
  • Operation on AC mains for highest energy efficiency possible
  • Energy savings of up to 68 % when replacing traditional HQI lamps
  • Effective thermal management for wide operating temperature range
  • Low maintenance costs thanks to long lifetime
  • Instant 100 % light, no warm-up time
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 105 W
Construction wattage 105.00 W
Nominal voltage 220…240 V
Operating mode CCG, AC Mains, ignitor
Claimed equiv. conventional lamp power 250 W
Nominal current 500 mA
Type of current AC
Inrush current 4.56 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 12
Max. lamp number on MCB B10 A - CCG without compensation 10
Max. lamp number on MCB B10 A - CCG with compensation 9
Max. lamp number on MCB B16 A 19
Max. lamp number on MCB B16 A - CCG without compensation 14
Max. lamp number on MCB B16 A - CCG with compensation 9
Total harmonic distortion 20 %
Power factor λ > 0.90
Surge capability (L-N) 4 kV

Photometrical data

Luminous intensity 6636 cd
Luminous flux 14000 lm
Nominal useful luminous flux 90° 14000 lm
Luminous efficacy 133 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra 80
Light color 840
Standard deviation of color matching ≤6 sdcm
Rated peak intensity 6636 cd
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0,4

Light technical data

Beam angle 100 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 263.00 mm
Diameter 250.00 mm
Product weight 1400.00 g

Temperatures & operating conditions

Ambient temperature range -40…+50 °C 1)
Maximum temperature at tc test point 90 °C

1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire

Lifespan

Lifespan L70/B50 at 25 °C 50000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E40
Mercury content 0.0 mg
Mercury-free Yes

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 105.00 kWh/1000h
Type of protection IP40
Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference HID LED HB UN P

LOGISTICAL DATA

Temperature range at storage -40…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional DLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E40
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0.00 W
Claim of equivalent power No
Length 263.00 mm
Height 250.00 mm
Width 250.00 mm
Chromaticity coordinate x 0.382
Chromaticity coordinate y 0.38
R9 Colour rendering index 1
Beam angle correspondence WIDE_CONE_120
Survival factor 0,90
Displacement factor 0.9
LED light source replaces a fluorescent light source No
EPREL ID 1160649
Model number AC41484,AC41484

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Direct replacement for traditional HID lamps thanks to CCG and ignitor compatibility
  • Operation on AC mains for highest energy efficiency possible
  • Energy savings of up to 68 % when replacing traditional HQI lamps
  • Effective thermal management for wide operating temperature range
  • Low maintenance costs thanks to long lifetime
  • Instant 100 % light, no warm-up time
Areas of application
  • LED alternative for applications requiring a high luminous flux
  • Industrial and storage facilities
  • Outdoor applications only in suitable luminaires
Product features
  • Type of protection: IP40
  • High surge protection: up to 4 kV (L-N)
Equipment / Accessories
  • Safety sling for lamp included
Safety advice
  • The bulb may be larger and heavier than the replaced bulb. Before installation it must be checked, if the luminaire and especially the holder is capable of carrying the weight of the lamp. Safety sling has to be installed.
  • To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
  • Only suitable for temperatures of up to 50 °C inside of the luminaire.
  • Not suitable for operation with electronic control gear.
  • All electrical connections must be made by a qualified person.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075780385 Folding box
1		 255 mm x 255 mm x 320 mm 1720.00 g 20.81 dm³
4058075780392 Shipping box
4		 530 mm x 530 mm x 348 mm 8554.00 g 97.75 dm³
User instruction / safety instructions
HID LED HIGHBAY UNIVER SAL PDF (3.21 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
CE Declaration HID LED HB UN Ledvance PDF (284.41 KB)
Product image: white background, diagonal with LEDVANCE logo
HID LED Highbay UN 840 E40 JPG (2.9 MB)

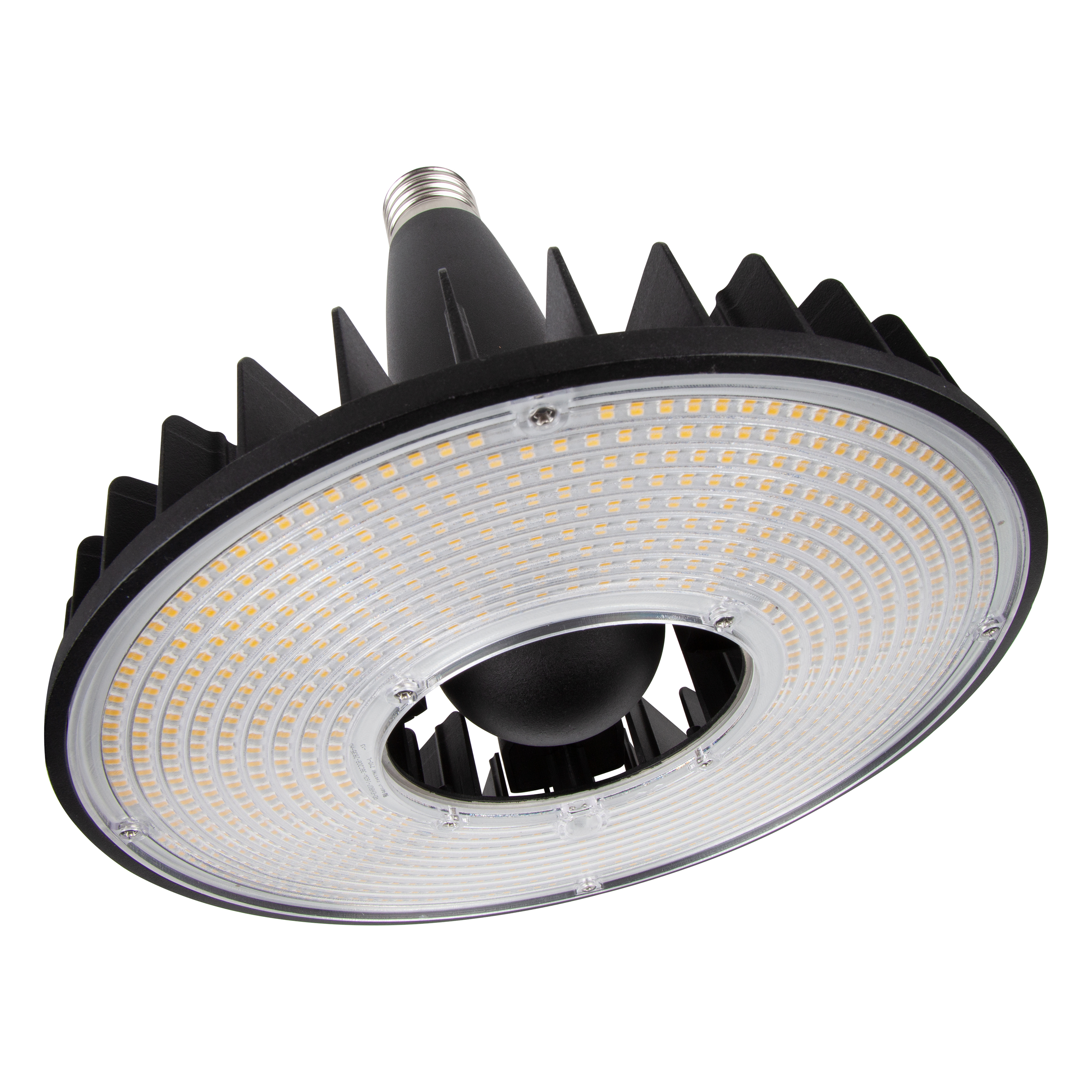

Product image: white background, diagonal
HID LED Highbay UN 840 E40 JPG (2.9 MB)
Product image: white background, horizontal, LEDVANCE logo
HID LED Highbay UN 840 E40 JPG (4.16 MB)
Product image: white background, horizontal
HID LED Highbay UN 840 E40 JPG (4.16 MB)

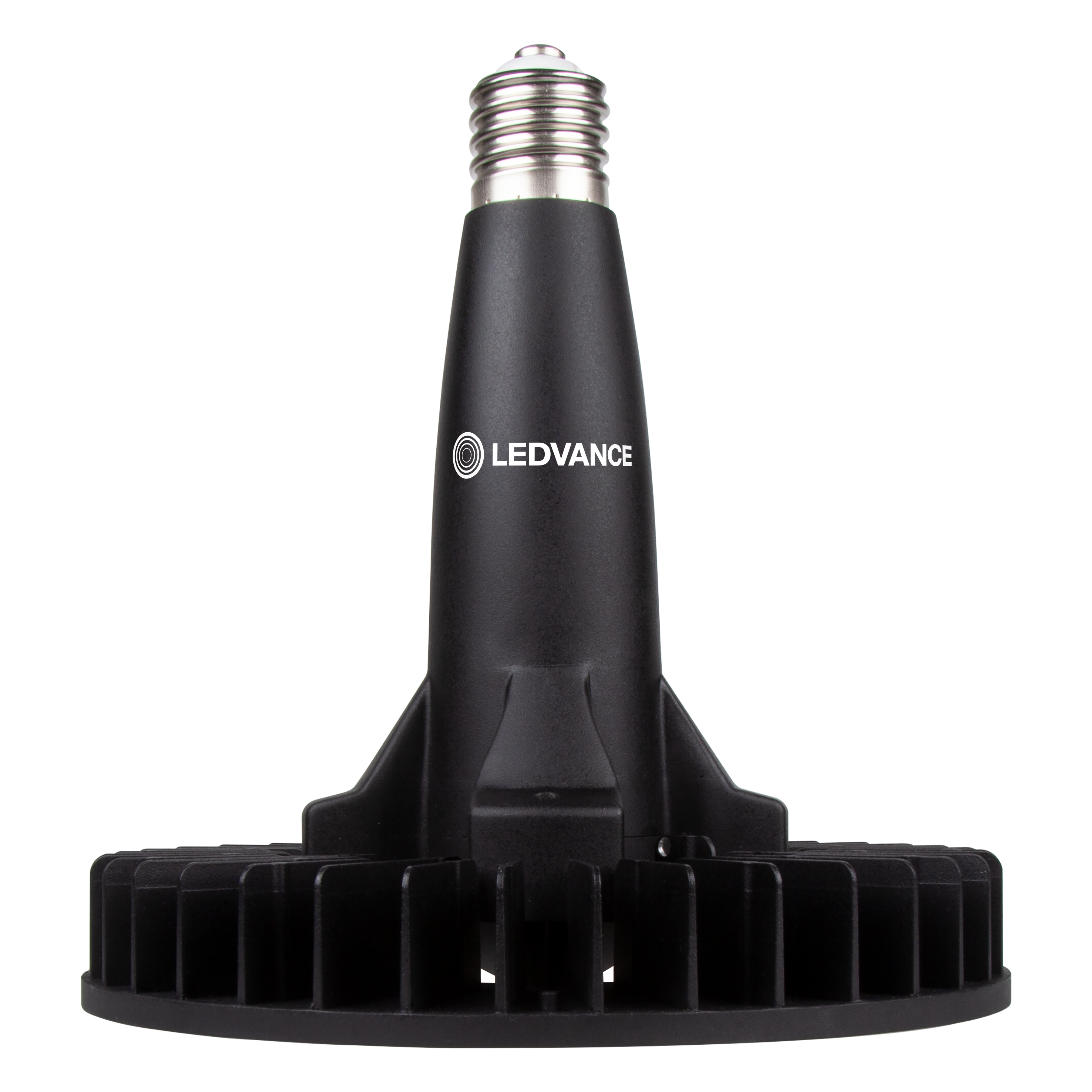

Product image: white background, upright LEDVANCE logo
HID LED Highbay UN 840 E40 JPG (1.47 MB)
Product image: white background, upright
HID LED Highbay UN 840 E40 JPG (1.46 MB)
Product line drawing with letters
HID LED Highbay UN 840 E40 SVG (26.2 KB)
Product line drawing with numbers
HID LED Highbay UN 840 E40 SVG (33.25 KB)
Product line drawing - technical
HID LED Highbay UN 840 E40 SVG (22.02 KB)
Energy label
EL-4058075780385-AC414 84 PDF (21.49 KB)
Logos and pictos
E left SVG (1.9 KB)
Logos and pictos
E left BW SVG (1.07 KB)
Logos and pictos
E right SVG (1.86 KB)
Logos and pictos
E right BW SVG (1.07 KB)
IES file (IES)
HID LED HB 105W-840 23 0VUN E40 IES (6.5 KB)
LDT file (Eulumdat)
HID LED HB 105W 840 23 0VUN E40 LDT (7.13 KB)
UGR file (UGR table)
HID LED HB 105W-840 23 0VUN E40 PNG (56.98 KB)
Light distribution curve type cone
HID LED HB 105W-840 23 0VUN E40 SVG (16.78 KB)
Light distribution curve type polar
HID LED HB 105W-840 23 0VUN E40 SVG (17.23 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 4000K PNG (116.83 KB)
EAN SEG number STK number EFO number ELDAS number
4058075780385 8297894 4803000 3764917 941812330
