PARATHOM CLASSIC A

Choose your product version

4W 827 Frosted E27

40 4 W/2700 K E27

4W 840 Clear E27

4W 840 Frosted E27

6.5W 827 Clear E27

6.5W 827 Frosted E27

60 6.5 W/4000 K E27

6.5W 840 Frosted E27

6.5W 840 Clear E27

60 FR 7 W/2700 K B22d

60 CL 7 W/2700 K B22d

60 7 W/2700 K E27

60 7 W/2700 K E27

60 7 W/4000 K E27

75 7.5 W/2700 K E27

75 7.5 W/2700 K E27

7.5W 827 Frosted E27

7.5W 827 Clear E27

75 7.5 W/4000 K E27

75 7.5 W/4000 K E27

7.5W 840 Frosted E27

75 7.5 W/4000 K E27

100 10 W/2700 K E27

100 10 W/2700 K E27

11W 827 Frosted E27

100 11 W/2700 K E27

100 11 W/4000 K E27

11W 840 Clear E27

150 16 W/2700 K E27

150 16 W/4000 K E27

17W 827 Frosted E27

17W 840 Frosted E27

24W 827 Frosted E27

24W 840 Frosted E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Classic A 40 P 4W 827 Frosted E27 E27 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
P CLAS A 40 4 W/2700 K E27 E27 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED Classic A 40 Filament P 4W 840 Clear E27 E27 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED Classic A 40 P 4W 840 Frosted E27 E27 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED Classic A 60 Filament P 6.5W 827 Clear E27 E27 6.5 W 220…240 V 15000 h 806 lm 60 W 300 ° No
LED Classic A 60 P 6.5W 827 Frosted E27 E27 6.5 W 220…240 V 15000 h 806 lm 60 W 300 ° No
P CLAS A 60 6.5 W/4000 K E27 E27 6.5 W 220…240 V 15000 h 806 lm 60 W 300 ° No
LED Classic A 60 P 6.5W 840 Frosted E27 E27 6.5 W 220…240 V 15000 h 806 lm 60 W 300 ° No
LED Classic A 60 Filament P 6.5W 840 Clear E27 E27 6.5 W 220…240 V 15000 h 806 lm 60 W 300 ° No
P CLAS A 60 FR 7 W/2700 K B22d B22d 7 W 220…240 V 15000 h 806 lm 60 W 300 ° No
P CLAS A 60 CL 7 W/2700 K B22d B22d 7 W 220…240 V 15000 h 806 lm 60 W 300 ° No
P CLAS A 60 7 W/2700 K E27 E27 7 W 220…240 V 15000 h 806 lm 60 W 300 ° No
P RF CLAS A 60 7 W/2700 K E27 E27 7 W 220…240 V 15000 h 806 lm 60 W 300 ° No
P CLAS A 60 7 W/4000 K E27 E27 7 W 220…240 V 15000 h 806 lm 60 W 300 ° No
P CLAS A 75 7.5 W/2700 K E27 E27 7.5 W 220…240 V 15000 h 1055 lm 75 W 300 ° No
P CLAS A 75 7.5 W/2700 K E27 E27 7.5 W 220…240 V 15000 h 1055 lm 75 W 300 ° No
LED Classic A 75 P 7.5W 827 Frosted E27 E27 7.5 W 220…240 V 15000 h 1055 lm 75 W 300 ° No
LED Classic A 75 Filament P 7.5W 827 Clear E27 E27 7.5 W 220…240 V 15000 h 1055 lm 75 W 300 ° No
P CLAS A 75 7.5 W/4000 K E27 E27 7.5 W 220…240 V 15000 h 1055 lm 75 W 300 ° No
P CLAS A 75 7.5 W/4000 K E27 E27 7.5 W 220…240 V 15000 h 1055 lm 75 W 300 ° No
LED Classic A 75 P 7.5W 840 Frosted E27 E27 7.5 W 220…240 V 15000 h 1055 lm 75 W 300 ° No
P CLAS A 75 7.5 W/4000 K E27 E27 7.5 W 220…240 V 15000 h 1055 lm 75 W 300 ° No
P CLAS A 100 10 W/2700 K E27 E27 10 W 220…240 V 15000 h 1521 lm 100 W 300 ° No
P CLAS A 100 10 W/2700 K E27 E27 10 W 220…240 V 15000 h 1521 lm 100 W 300 ° No
LED Classic A 100 P 11W 827 Frosted E27 E27 11 W 220…240 V 15000 h 1521 lm 100 W 300 ° No
P CLAS A 100 11 W/2700 K E27 E27 11 W 220…240 V 15000 h 1521 lm 100 W 300 ° No
P CLAS A 100 11 W/4000 K E27 E27 11 W 220…240 V 15000 h 1521 lm 100 W 300 ° No
LED Classic A 100 Filament P 11W 840 Clear E27 E27 11 W 220…240 V 15000 h 1521 lm 100 W 320 ° No
P CLAS A 150 16 W/2700 K E27 E27 16 W 220…240 V 15000 h 2500 lm 150 W 330 ° No
P CLAS A 150 16 W/4000 K E27 E27 16 W 220…240 V 15000 h 2500 lm 150 W 330 ° No
LED Classic A 150 P 17W 827 Frosted E27 E27 17 W 220…240 V 15000 h 2452 lm 150 W 330 ° No
LED Classic A 150 P 17W 840 Frosted E27 E27 17 W 220…240 V 15000 h 2452 lm 150 W 330 ° No
LED Classic A 200 P 24W 827 Frosted E27 E27 24 W 220…240 V 15000 h 3452 lm 200 W 320 ° No
LED Classic A 200 P 24W 840 Frosted E27 E27 24 W 220…240 V 15000 h 3452 lm 200 W 320 ° No


LED Classic A 200 P 24W 840 Frosted E27

Product benefits
  • Lamps with innovative LED "filament" technology
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • Lower energy consumption than incandescent or halogen lamps
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
View all details
Product data sheet
Go to LEDVANCE successor product

PRODUCT DETAILS

Electrical data

Nominal wattage 24 W
Construction wattage 24.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 200 W
Nominal current 200 mA
Type of current AC
Inrush current 0,36 A
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Max. lamp number on MCB B10 A 30
Max. lamp number on MCB B16 A 50
Power factor λ > 0.50

Photometrical data

Luminous flux 3452 lm
Nominal useful luminous flux 90° 3452 lm
Luminous efficacy 143 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra 80
Light color 840
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 320 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 162.00 mm
Diameter 95.00 mm
Maximum diameter 95 mm
Product weight 90.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 75 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Design / version Frosted

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class D 1)
Energy consumption 24.00 kWh/1000h
Type of protection IP20
Standards CE, EAC
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDPCLA200 24W/

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0.0
Networked standby power for CLS 0.0
Claim of equivalent power Yes
Length 162.00 mm
Height 95.00 mm
Width 95.00 mm
Chromaticity coordinate x 0.458
Chromaticity coordinate y 0.410
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.70
LED light source replaces a fluorescent light source No
EPREL ID 692686
Model number AC35013

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lamps with innovative LED "filament" technology
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • Lower energy consumption than incandescent or halogen lamps
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Professional LED lamps for line voltage
  • Beam angle: up to 300°
  • Not dimmable
  • Base: E27
  • Lifetime up to 15,000 h
  • Lamp made of glass
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075619135 Folding box
1		 95 mm x 95 mm x 167 mm 126.00 g 1.51 dm³
4058075619142 Shipping box
4		 201 mm x 201 mm x 174 mm 656.00 g 7.03 dm³
Declarations of conformity
LED CLA CLB CLP T26 C L GLOBE125 PDF (306.54 KB)

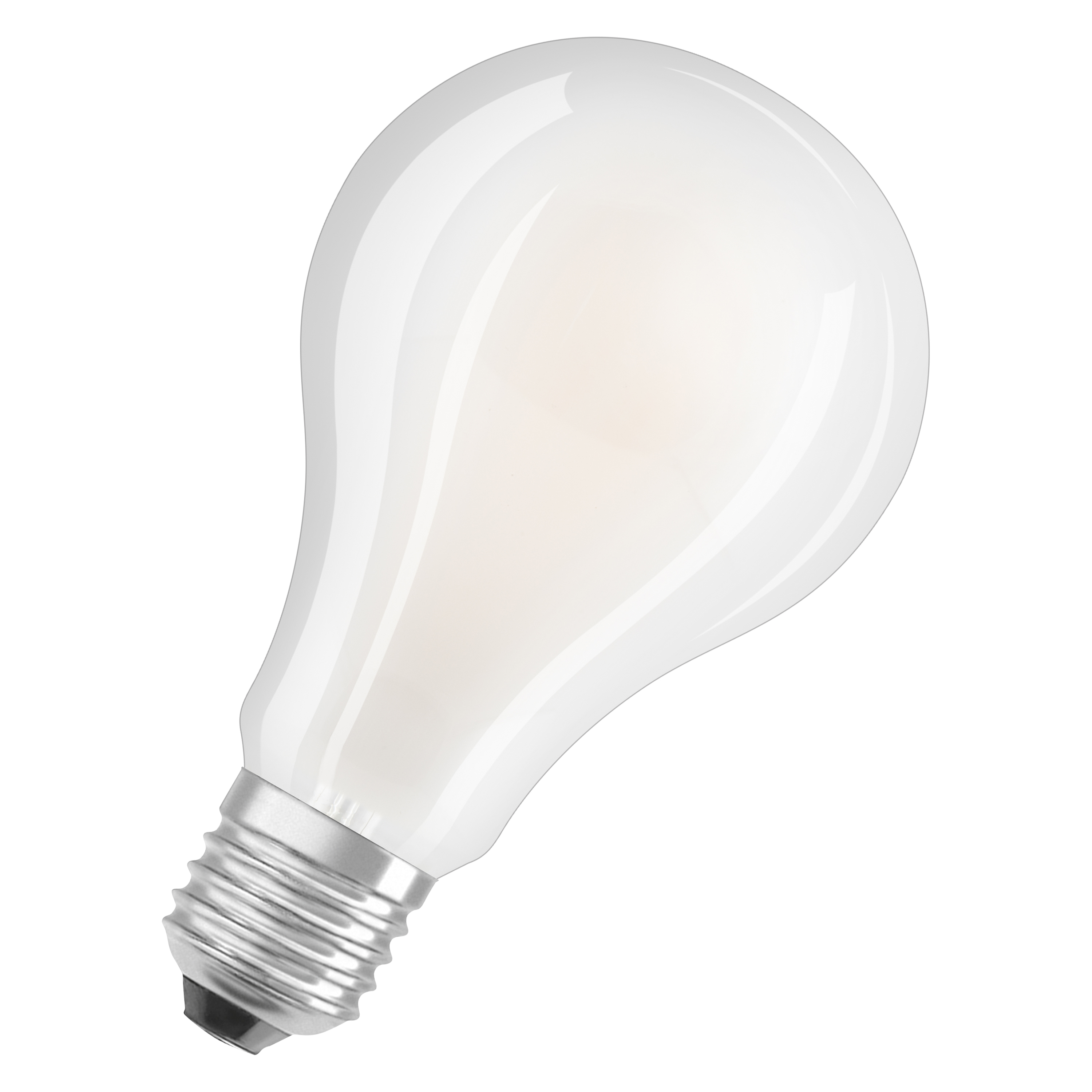

Product image: white background, diagonal with OSRAM logo
LED CL A200 GLFR E27 JPG (1.32 MB)
Product image: white background, diagonal
LED CL A200 GLFR E27 JPG (1.32 MB)
Product image: white background, upright, OSRAM logo
LED CL A200 GLFR E27 JPG (1.22 MB)
Product image: white background, upright
LED CL A200 GLFR E27 JPG (1.21 MB)
Product line drawing with letters
LED CL A200 GLFR E27 SVG (82.02 KB)
Product line drawing with numbers
LED CL A200 GLFR E27 SVG (83.25 KB)
Product line drawing - technical
LED CL A200 GLFR E27 SVG (80.42 KB)
Energy label
EL-4058075619135-AC350 13 PDF (21.4 KB)
Logos and pictos
D left SVG (1.8 KB)
Logos and pictos
D left BW SVG (1.07 KB)
Logos and pictos
D right SVG (1.77 KB)
Logos and pictos
D right BW SVG (1.07 KB)
Spectral power distribution
LISO spectral power di stribution 4000K CRI80 v1 PNG (117.92 KB)
EAN SEG number STK number ELDAS number
4058075619135 8296782 4731823 941809080
