OSRAM DULUX LED D/E HF & AC MAINS

Choose your product version

6W 830 G24Q-1

6W 840 G24Q-1

7W 830 G24Q-2

7W 840 G24Q-2

10W 830 G24Q-3

10W 840 G24Q-3

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
DULUX LED D/E13 HF & AC MAINS 6W 830 G24Q-1 G24q-1 6 W 220…240 V 30000 h 600 lm 13 W 120 ° No
DULUX LED D/E13 HF & AC MAINS 6W 840 G24Q-1 G24q-1 6 W 220…240 V 30000 h 660 lm 13 W 120 ° No
DULUX LED D/E18 HF & AC MAINS 7W 830 G24Q-2 G24q-2 7 W 220…240 V 30000 h 700 lm 18 W 120 ° No
DULUX LED D/E18 HF & AC MAINS 7W 840 G24Q-2 G24q-2 7 W 220…240 V 30000 h 770 lm 18 W 120 ° No
DULUX LED D/E26 HF & AC MAINS 10W 830 G24Q-3 G24q-3 10 W 220…240 V 30000 h 990 lm 26 W 120 ° No
DULUX LED D/E26 HF & AC MAINS 10W 840 G24Q-3 G24q-3 10 W 220…240 V 30000 h 1100 lm 26 W 120 ° No


DULUX LED D/E13 HF & AC MAINS 6W 830 G24Q-1

Product benefits
  • Easy installation
  • Low energy consumption
  • Easy relamping thanks to compact design
  • Operation directly on 230 V AC mains possible
View all details
Product data sheet
Go to LEDVANCE successor product

PRODUCT DETAILS

Electrical data

Nominal wattage 6 W
Construction wattage 6.00 W
Nominal voltage 220…240 V
Operating mode ECG, AC Mains 1)
Claimed equiv. conventional lamp power 13 W
Nominal current 28 mA
Type of current AC
Inrush current 3 A
Suitable for DC input Yes
Input voltage DC 186…260 V 2)
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 320
Max. lamp number on MCB B16 A 510
Total harmonic distortion ≤ 30 %
Power factor λ > 0.90

1) Check ECG compatibility at ledvance.com/compatibility
2) Permitted voltage range

Photometrical data

Luminous flux 600 lm
Nominal useful luminous flux 90° 600 lm
Luminous efficacy 100 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra 80
Light color 830
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 120 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 142.80 mm
Diameter 33.00 mm
Tube diameter 33,0 mm
Maximum diameter 33 mm
Product weight 85.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C 1)
Maximum temperature at tc test point 70 °C

1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire

Lifespan

Lifespan L70/B50 at 25 °C 30000 h
Number of switching cycles 200000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G24q-1
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class F 1)
Energy consumption 6.00 kWh/1000h
Type of protection IP20
Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference DULUX LED D/E13

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) G24q-1
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Claim of equivalent power No
Length 142.80 mm
Height 33.00 mm
Width 33.00 mm
Chromaticity coordinate x 0.433
Chromaticity coordinate y 0.403
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.90
LED light source replaces a fluorescent light source No
EPREL ID 604650,1412839,2206805
Model number AC35184,AC47828,AC71185

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Easy installation
  • Low energy consumption
  • Easy relamping thanks to compact design
  • Operation directly on 230 V AC mains possible
Areas of application
  • Supermarkets and department stores
  • Walkways and corridors
  • Hotels, restaurants
Product features
  • LED replacement for conventional compact fluorescent lamps for use in ECG luminaires or on AC mains
  • Single-ended four-pin plug-in G24q base
  • Rotatable base around its longitudinal axis (± 90°)
  • Lifetime up to 30,000 h
  • Type of protection: IP20
  • Mercury-free lamps
Safety advice
  • Always check the latest update of the compatibility list available on www.ledvance.com/ecg-compatibility.
  • Not suitable for operation with conventional control gear.
  • The operating temperature range of DULUX LED is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
  • All electrical connections must be made by a qualified person.
  • Not suitable for emergency lighting.
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075558663 Folding box
1		 37 mm x 49 mm x 152 mm 99.00 g 0.28 dm³
4058075558670 Shipping box
10		 203 mm x 110 mm x 166 mm 1160.00 g 3.71 dm³
User instruction / safety instructions
OSRAM DULUX D/E LED PDF (3.47 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
DULUX LED PDF (385.17 KB)
Declarations of conformity
LEDTUBE PDF (261.24 KB)
PRODUCT DATASHEET
DULUXDELEDHF&ACMains6W 3000Kde PDF (172.12 KB)
Product datasheet -> old version of product
DULUXLEDDE13HF&ACMAINS 6W830G24Q1en PDF (208.08 KB)

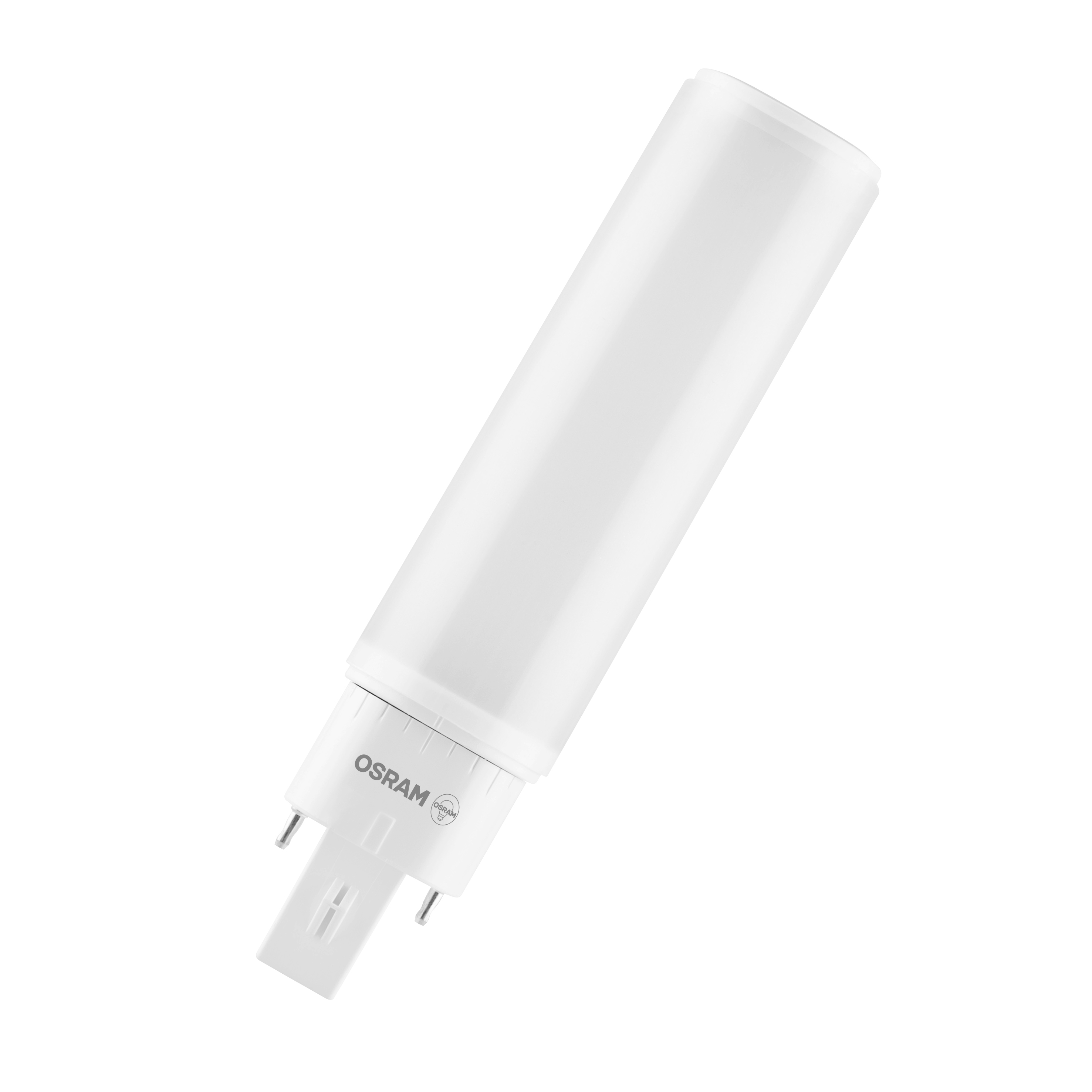

Product image: white background, diagonal with OSRAM logo
DULUX LED DE13 HF G24Q -1 JPG (842.01 KB)
Product image: white background, diagonal
DULUX LED D/E HF 6W JPG (833.56 KB)
Product image: white background, upright, OSRAM logo
DULUX LED DE13 HF G24Q -1 JPG (816.11 KB)
Product image: white background, upright
DULUX LED D/E HF 6W JPG (808.73 KB)
Product line drawing with letters
DULUX LED D/E HF 6W SVG (27.85 KB)
Product line drawing with numbers
DULUX LED D/E HF 6W JPG (208.46 KB)
Product line drawing - technical
DULUX LED D/E HF 6W SVG (21.68 KB)
Combo Shot = Product Beauty Shot + Packaging Image
DULUX LED DE13 HF 6W 8 30 G24q-1 MiCh JPG (1.16 MB)
Packaging image, frontal
DULUX LED DE13 HF 6W 8 30 G24q-1 MiCh JPG (1.59 MB)
Packaging image, spacial
DULUX LED DE13 HF 6W 8 30 G24q-1 MiCh JPG (1.6 MB)
Catalog info 6
LIFETIME CURVE TC_DULU X LED DE 6W 13W SVG (37.51 KB)
Energy label
EL-4058075558663-AC351 84 PDF (21.93 KB)
Energy label
EL-4058075558663-AC478 28 PDF (21.66 KB)
Energy label
EL-4058075558663-AC711 85 PDF (21.66 KB)
Logos and pictos
F left SVG (1.83 KB)
Logos and pictos
F left BW SVG (1.07 KB)
Logos and pictos
F right SVG (1.81 KB)
Logos and pictos
F right BW SVG (1.06 KB)
IES file (IES)
DULUXDE13LED 6W830230 VHFG24Q-1 IES (40.08 KB)
LDT file (Eulumdat)
DULUXDE13LED 6W830230 VHFG24Q-1 LDT (35.98 KB)
Light distribution curve type polar
DULUXDE13LED 6W830230 VHFG24Q-1 SVG (20.41 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 3000K PNG (115.07 KB)
Application pictures
Recessed Ceiling Light ing in Hallway warm wh ite cropped JPG (4.94 MB)
EAN SEG number STK number EFO number ELDAS number
4058075558663 8296237 4930464 3766247 941807260
