LED TUBE T8 HF V

Choose your product version

600 mm 8W 840

600 mm 8W 865

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED TUBE T8 HF V 600 mm 8W 840 G13 8 W 25…40 V 30000 h 900 lm 18 W 190 ° No
LED TUBE T8 HF V 600 mm 8W 865 G13 8 W 25…40 V 30000 h 900 lm 18 W 190 ° No


LED TUBE T8 HF V 600 mm 8W 840

Product benefits
  • No bending thanks to glass tube
  • Energy savings of up to 55 % (compared to T8 fluorescent lamp)
  • Quick, simple and safe replacement without rewiring
  • Very high resistance to switching loads
  • Also suitable for operation at low temperatures
View all details
Product data sheet
Go to OSRAM predecessor product

PRODUCT DETAILS

Electrical data

Nominal wattage 8 W
Construction wattage 8.00 W
Nominal voltage 25…40 V
Operating mode ECG 1)
Nominal current 330 mA
Type of current AC
Inrush current 24 A
Operating frequency 35…75 kHz
Mains frequency 35…75 kHz
Max. lamp number on MCB B10 A 17
Max. lamp number on MCB B16 A 28
Total harmonic distortion < 15 %
Power factor λ 0.80

1) Check ECG compatibility at ledvance.com/compatibility

Photometrical data

Luminous flux 900 lm
Luminous efficacy 112 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra 80
Light color 840
Standard deviation of color matching ≤5 sdcm
Rated LLMF at 6,000 h 0.90
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 190 °
Warm-up time (60 %) ‹ 2.00 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 603.00 mm
Length with base excl. base pins/connection 600.00 mm
Diameter 27.80 mm
Tube diameter 25,5 mm
Maximum diameter 28 mm
Product weight 137.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C 1)
Maximum temperature at tc test point 65 °C
Performance temp. acc. to IEC 62717 55 °C 2)

1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire
2) Tp rated. Tp point coincides with Tc point - marked on device

Lifespan

Lifespan L70/B50 at 25 °C 30000 h
Lifespan L80/B50 at 25 °C 30000 h
Number of switching cycles 200000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G13
Mercury content 0.0 mg
Mercury-free Yes
Product remark The declared values stated in the data sheet refer to the operation of the LED tube on the reference ECG OSRAM QTP-OPTIMAL 1x18-40 (AA509570755)

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class F 1)
Energy consumption 8.00 kWh/1000h
Type of protection IP20
Standards CE
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDTUBE T8 HF V

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) G13
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 603.00 mm
Height 27.80 mm
Width 27.80 mm
Chromaticity coordinate x 0.3818
Chromaticity coordinate y 0.3797
R9 Colour rendering index ˃0
Beam angle correspondence SPHERE_360
Survival factor ˃0.9
Displacement factor 0.8
LED light source replaces a fluorescent light source No
EPREL ID 1317764
Model number AC42574

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • No bending thanks to glass tube
  • Energy savings of up to 55 % (compared to T8 fluorescent lamp)
  • Quick, simple and safe replacement without rewiring
  • Very high resistance to switching loads
  • Also suitable for operation at low temperatures
Areas of application
  • General illumination within ambient temperatures from -20…+45 °C
  • Corridors, stairways, parking garages
  • Industry
  • Warehouses
  • Cooling and storage rooms
  • Domestic applications
  • Supermarkets and department stores
Product features
  • LED replacement for classic T8 fluorescent lamps with G13 socket for use in ECG luminaires
  • Compatible with many common electronic control gears (see also compatibility list)
  • Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
  • Tube made of glass
  • Uniform illumination
  • Mercury-free and RoHS compliant
  • Type of protection: IP20
  • Lifetime up to 30,000 h
Legal advice
  • When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
  • Not suitable for operation with low-loss and conventional control gears and main voltage.
  • Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
  • The operating temperature range of LED tube is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
  • All electrical connections must be made by a qualified person.
  • Not suitable for emergency lighting.
References / Links
  • For current information see www.ledvance.com/ledtube
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854026256 Sleeve
1		 610 mm x 31 mm x 31 mm 155.00 g 0.59 dm³
4099854026263 Shipping box
10		 662 mm x 210 mm x 115 mm 1910.00 g 15.99 dm³
User instruction / safety instructions
LEDTUBE T8 HF Ledvance PDF (2.97 MB)
Addon technical information
LED TUBE T8 UNIVERSAL T8 HF T5 HF Gen 11 bal last compatibility 202 3 PDF (1.37 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
LED TUBES T8 HF/UN PDF (385.95 KB)

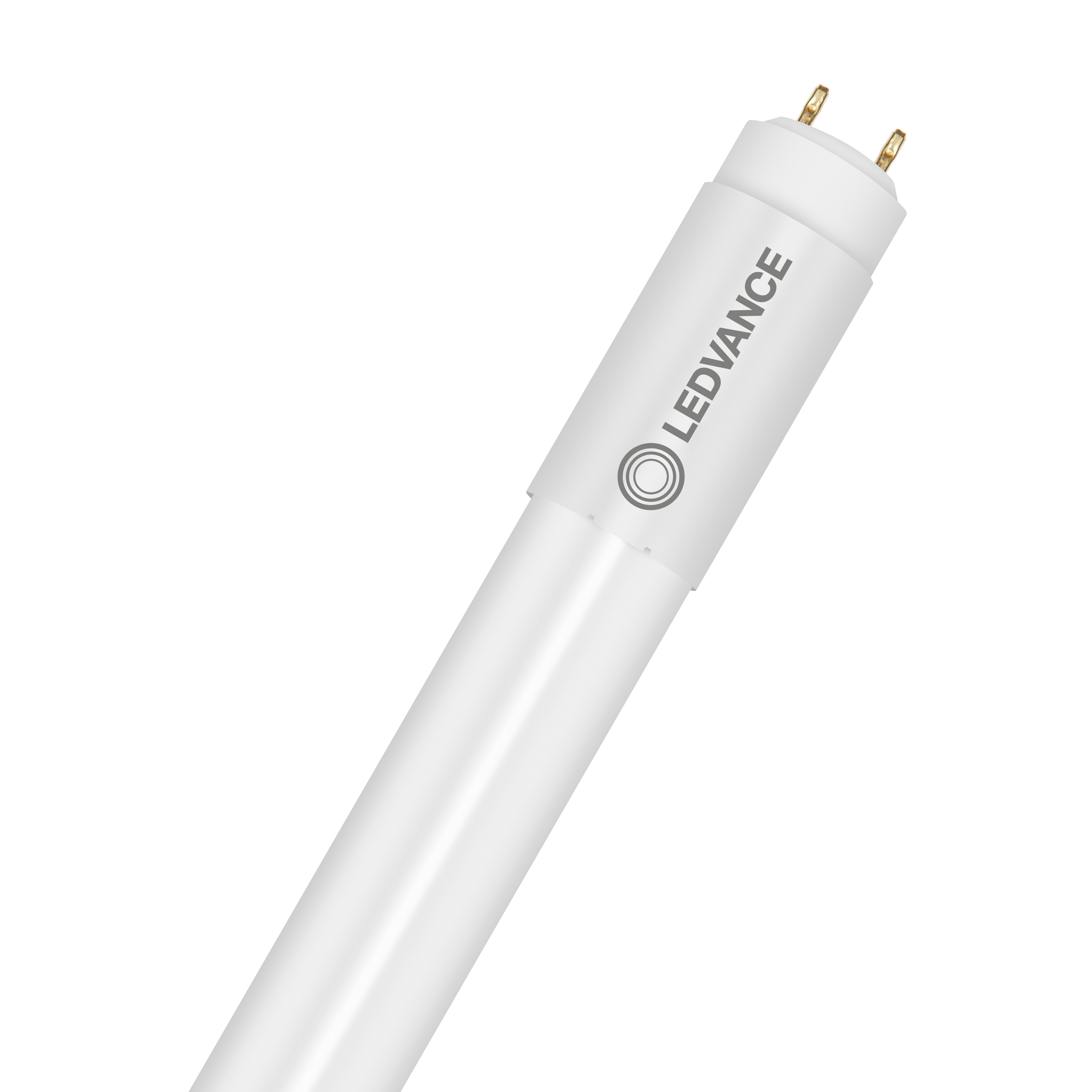

Product image: white background, diagonal with LEDVANCE logo
LED TUBE T8 HF UN LEDV ANCE 600 JPG (901.86 KB)
Product image: white background, upright LEDVANCE logo
LED TUBE T8 HF UN LEDV ANCE 600 JPG (667.22 KB)
Product line drawing with letters
LED TUBE T8 HF SVG (14.43 KB)
Product line drawing with numbers
LED TUBE T8 HF/UN 600 SVG (16.15 KB)
Catalog info 6
LIFETIME CURVE TC_LEDT UBE T8 HF V 600 8W JPG (1.19 MB)
Energy label
EL-4099854026256-AC425 74 PDF (21.47 KB)
Logos and pictos
F left SVG (1.83 KB)
Logos and pictos
F left BW SVG (1.07 KB)
Logos and pictos
F right SVG (1.81 KB)
Logos and pictos
F right BW SVG (1.06 KB)
IES file (IES)
LEDTUBE T8 HF V 600 8W 840 LEDV IES (14.41 KB)
LDT file (Eulumdat)
LEDTUBE T8 HF V 600 8W 840 LEDV LDT (11 KB)
UGR file (UGR table)
LEDTUBE T8 HF V 600 8W 840 LEDV PNG (64.03 KB)
Light distribution curve type polar
LEDTUBE T8 HF V 600 8W 840 LEDV SVG (19.63 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 4000K PNG (116.83 KB)
EAN SEG number STK number EFO number ELDAS number
4099854026256 8298527 4933351 3763252 941820100
