| Product description |
|---|

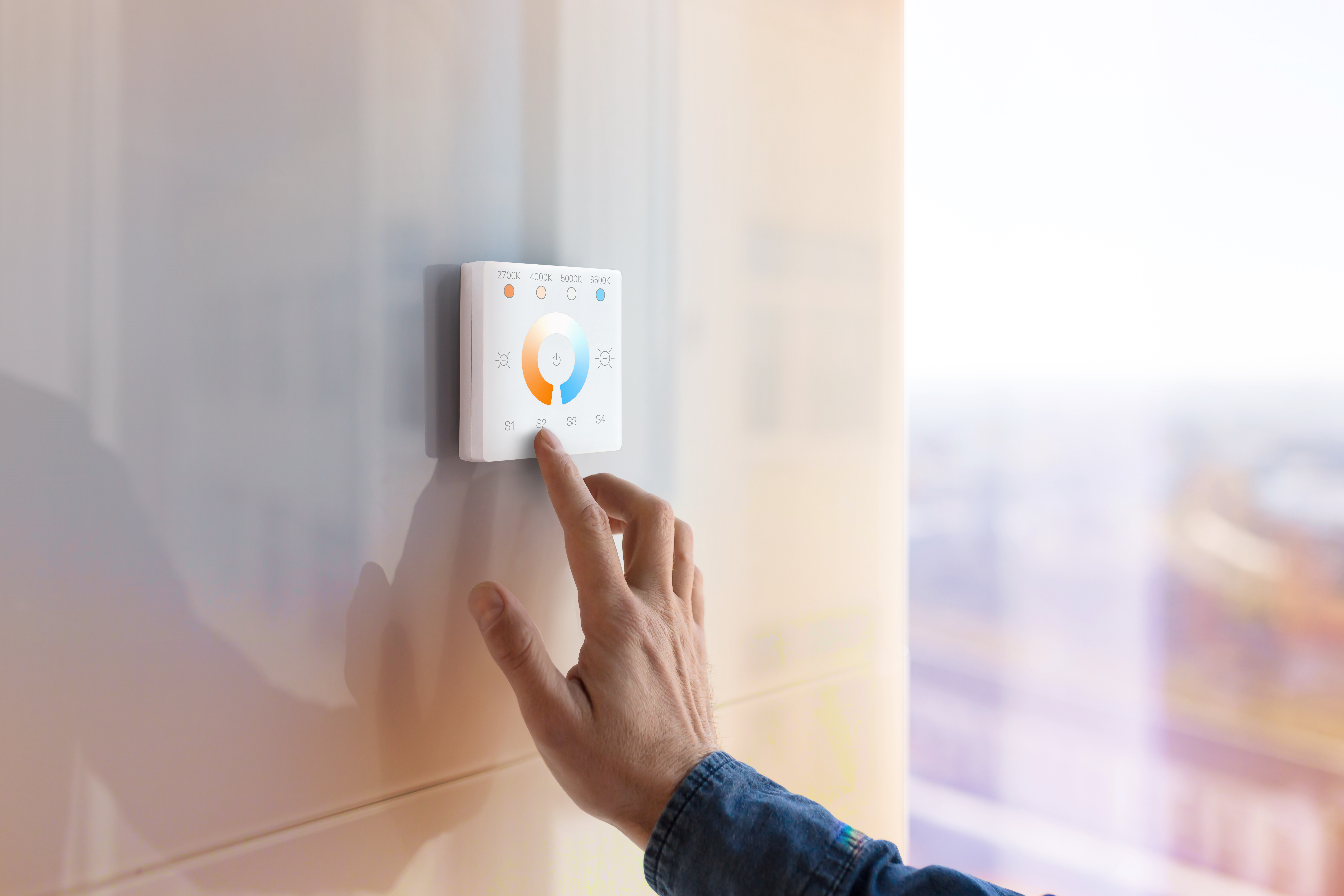

| MANUAL CONTROL UNIT TOUCH DALI-2 TW |
| Nominal wattage | 2.70 W |
| Nominal voltage | 100…240 V |
| Input current | 48 mA |
| Nominal output current | 65 mA |
| Mains frequency | 50…60 Hz |
| Length | 86.00 mm |
| Width | 86.00 mm |
| Height | 41.00 mm |
| Cable cross-section, input side | 0.5…1.5 mm² |
| Wire preparation length, input side | 6…7 mm |
| Product weight | 200.00 g |
| Product color | White |
| Ambient temperature range | -20…+50 °C |
| Maximum temperature at tc test point | 52 °C |
| Number of switching cycles | 30000 |
| Product remark | Only Sensors with mains switching contact |
| Number of control outputs | 1 |
| Max. connectable push button couplers / sensors | 16 |
| Max. number of connected drivers | 25 |
| Commissioning App | Ready to use |
| Light control tool App | No |
| Groups | 1 |
| Dimmable | Yes |
| Dimming interface | DALI-2 |
| Dimming range | 1…100 % |
| Number of control outputs | 1 |
| Type of installation | Integrated in flush device box |
| Approval marks – approval | CE, UKCA, EAC |
| Protection class | II |
| Type of protection | IP20 |
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075837560 | Folding box 1 |
102 mm x 112 mm x 55 mm | 244.00 g | 0.63 dm³ |
| 4099854334702 | Shipping box 30 |
320 mm x 320 mm x 250 mm | 7968.00 g | 25.60 dm³ |
| Product image | Product name | EAN |
|---|---|---|
|
SURFACE MOUNT FRAME | 4058075843561 |
| EAN | SEG number | STK number | EFO number |
|---|---|---|---|
| 4058075837560 | 1361087 | 2628016 | 1475254 |
