DAMP PROOF EMERGENCY

Choose your product version

1200 18W 840 IP65 GY

1200 18W 865 IP65 GY

1200 32W 830 IP65 GY

1200 32W 840 IP65 GY

1200 32W 865 IP65 GY

1500 46W 830 IP65 GY

1500 46W 840 IP65 GY

1500 81W 865 IP65 GY

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
DP EM 1200 18W 840 IP65 GY  18.00 W 100000 110 ° 2400 lm No
DP EM 1200 18W 865 IP65 GY        18.00 W 100000 110 ° 2400 lm No
DP EM 1200 32W 830 IP65 GY 32.00 W 100000 110 ° 4000 lm No
DP EM 1200 32W 840 IP65 GY 32.00 W 100000 110 ° 4400 lm No
DP EM 1200 32W 865 IP65 GY 32.00 W 100000 110 ° 4400 lm No
DP EM 1500 46W 830 IP65 GY 46.00 W 100000 110 ° 5750 lm No
DP EM 1500 46W 840 IP65 GY 46.00 W 100000 110 ° 6400 lm No
DP EM 1500 81W 865 IP65 GY   81 W / 69 W / 57 W / 46 W 100000 110 ° 11000 lm / 9600 lm / 8200 lm / 6600 lm No


DP EM 1200 18W 840 IP65 GY

Product benefits
  • Seamless integration of luminaires with emergency lighting function into general lighting
  • Easy wiring thanks to included prewired driver and battery for Emergency lighting function
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
  • Convenient visualization of results of automatic test with an included control LED
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • Uniform light distribution in normal operation
  • Energy savings of up to 60 % (compared to luminaires that use fluorescent lamps
  • Easy installation, no tools required for connection
  • 3 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 18.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 90 mA
Inrush current 12,2 A
Inrush current time Th50 154 µs
Max. number of luminaires per miniature circuit breaker B16 58
Max. number of luminaires per miniature circuit breaker C10 46
Max. number of luminaires per miniature circuit breaker C16 73
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 2400 lm
Luminous efficacy 133 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching 4 sdcm
Low flicker Yes
Flickering metric (Pst LM) ≤ 1
Stroboscope effect metric (SVM) ≤ 0.4
Photobiological safety group acc. to EN62778 RG0
Beam angle 110 °

Dimensions & Weight

Length 1200.00 mm
Height 68.00 mm
Width 82.00 mm
Product weight 1443.00 g

Materials & Colors

Product color Gray
Housing color Gray
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range 5…+35 °C
Temperature range at storage 5…+35 °C
Type of connection Screwless terminal, 5-Pole
Type of protection IP65
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Suspended/Surface
Mounting location Ceiling, Wall
Application environment Indoor
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 70000 h 1)
Lifespan L80/B10 at 25 °C 50000 h 1)
Lifespan L90/B10 at 25 °C 33000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 180 mA

BATTERY

Type of Battery LiFePO4
Battery size [GMS] Others
Nominal voltage of battery 3,2 V
Nominal capacity of battery 4500 mAh
Battery charging time < 24 h

Emergency lighting

Area of emergency application Anti-panic lighting, Escape route lighting
Type of emergency light operation Maintained, Non-maintained
Type of emergency operation test Automatic
Wattage in maintained operation mode 18 W
Wattage in emergency operation mode 3,0 W
Luminous flux in maintained operation mode 2400 lm
Luminous flux in emergency operation mode 500 lm
Battery life in emergency operation mode 3 h
Integrated test switch No

Certificates & Standards

Standards CE, CB, EAC, RoHS
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

Additional product data

Product remark When used in very cold applications as in cold storage, a special membrane might be required to ensure lifetime

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Additional info can be provided per individual request

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Seamless integration of luminaires with emergency lighting function into general lighting
  • Easy wiring thanks to included prewired driver and battery for Emergency lighting function
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
  • Convenient visualization of results of automatic test with an included control LED
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • Uniform light distribution in normal operation
  • Energy savings of up to 60 % (compared to luminaires that use fluorescent lamps
  • Easy installation, no tools required for connection
  • 3 years guarantee
Areas of application
  • Emergency illumination of escape routes
  • Antipanic lighting
  • Buildings requiring up to 3 h emergency light operation
  • Industrial and storage facilities
  • Car parks and underpasses
  • Garages
  • Workshops, assembly lines
Product features
  • Luminaire suited for normal lighting and emergency lighting
  • Certified according to European norms (EN 60598-1:2015; EN 60598-2-22:2014)
  • Self-contained luminaires
  • Emergency lighting function: battery discharge time of 3 h
  • Function test of emergency lighting: automatic (AT)
  • Battery technology: LiFePO4
  • High luminous efficacy: up to 139 lm/W
  • Type of protection: IP65
  • Beam angle: 110°
Equipment / Accessories
  • Stainless steel clamps with safety screws included
  • Mounting accessories included (suspension kit, theft protection kit)
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075541320 Folding box
1		 1,210 mm x 87 mm x 74 mm 1635.00 g 7.79 dm³
4058075541337 Shipping box
6		 1,232 mm x 191 mm x 245 mm 11680.00 g 57.65 dm³
User instruction / safety instructions
UI DampProof IP65 Emer gency Gen2 PDF (4.63 MB)
Legal information
Legal Insert DAMP PROO F IP65 EMERGENCY GEN2 PDF (5.84 MB)
Legal information
DP EM PDF (3.61 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
DP EM IP65 PDF (277.91 KB)
Product image: white background, spacial
DAMP PROOF 1200, DALI, EMERGENCY,SENSOR JPG (1.01 MB)
Product image: white background, with accessory, alternative image
Damp proof Gen 2 mount ing clips TIF (407.86 MB)
Product line drawing with letters
DP S 1200 32W 840 IP65 GY SVG (26.11 KB)
Product line drawing with numbers
DP S 1200 32W 840 IP65 GY SVG (33.25 KB)
Product line drawing, front, no dimensions
DP S 1200 32W 840 IP65 GY SVG (21.37 KB)
Combo Shot = Product Beauty Shot + Packaging Image
DP EM 1200 18W 840 IP6 5 GY LEDV JPG (444.15 KB)
Packaging image, frontal
DP EM 1200 18W 840 IP6 5 GY JPG (404.47 KB)

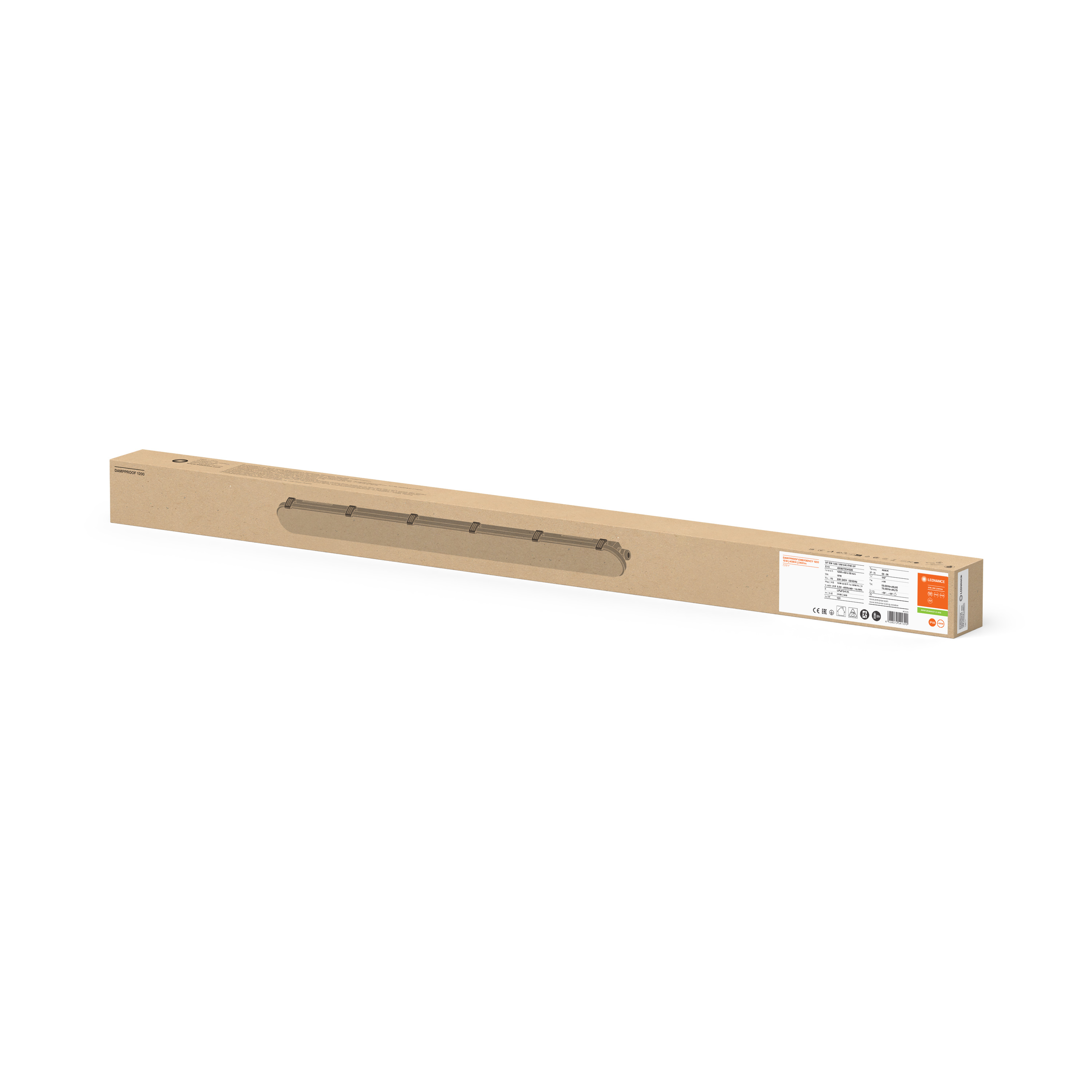

Packaging image, spacial
DampProof IP65 Gen2 12 00 MiCh JPG (436.93 KB)
IES file (IES)
DP EM 1200 18W 840 IP6 5 GY IES (14.42 KB)
LDT file (Eulumdat)
DP EM 1200 18W 840 IP6 5 GY LDT (10.61 KB)
ULD file (DIALux)
DP EM 1200 18W 840 IP6 5 ULD (464.9 KB)
ROLF file (RELUX)
DP EM 1200 18W 840 ROLF (334.59 KB)
UGR file (UGR table)
DP EM 1200 18W 840 IP6 5 GY PNG (61.38 KB)
Light distribution curve type cone
DP EM 1200 18W 840 IP6 5 GY SVG (16.76 KB)
Light distribution curve type polar
DP EM 1200 18W 840 IP6 5 GY SVG (17.4 KB)
BIM Revit 3D
Damp Proof G2 ZIP (11.46 MB)
CAD STEP 3D
DP Gen2 1200 STEP (491.58 KB)
Application pictures
Inter Cars JPG (15.64 MB)
Application pictures
Tente Rollen Wermelski rchen RET Dampproof JPG (24.42 MB)
Application pictures
DAMPPROOF GEN2 KeyVisu al JPG (3.07 MB)
EAN SEG number STK number ELDAS number
4058075541320 7216232 4315674 941001720
