Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|
| DP MAX 600 S 15W 840 VW IP69 | 15.00 W | > 200000 | 133 ° x 107 ° | 2000 lm | No |
| DP MAX 600 S 25W 840 VW IP69 | 25.00 W | > 200000 | 133 ° x 107 ° | 3500 lm | No |
| DP MAX 1200 S 27W 840 VW IP69 | 27.00 W | > 200000 | 133 ° x 107 ° | 4000 lm | No |
| DP MAX 1200 S 43W 840 VW IP69 | 43.00 W | > 200000 | 133 ° x 107 ° | 6500 lm | No |
| DP MAX 1500 S 38W 840 VW IP69 | 38.00 W | > 200000 | 133 ° x 107 ° | 6000 lm | No |
| DP MAX 1500 S 52W 840 VW IP69 | 52.00 W | > 200000 | 133 ° x 107 ° | 8000 lm | No |
| Nominal wattage | 15.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 0/50/60 Hz |
| Nominal current | 65 mA |
| Inrush current | 41 A |
| Inrush current time Th50 | 1300 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 26 |
| Max. number of luminaires per miniature circuit breaker C10 | 26 |
| Max. number of luminaires per miniature circuit breaker C16 | 43 |
| Power factor λ | 0.77 |
| Total harmonic distortion | 15 % |
| Protection class | I |
| Surge capability (L-N) | 4 kV |
| Operating mode | Integrated LED driver |
| Luminous flux | 2000 lm |
| Luminous efficacy | 133 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤3 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | ≤ 0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 133 ° x 107 ° |
| Length | 885.00 mm |
| Height | 138.00 mm |
| Width | 125.00 mm |
| Product weight | 3000.00 g |
| Product color | Gray |
| Housing color | Gray |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -25…+45 °C |
| Temperature range at storage | -40…+45 °C |
| Type of connection | Screwless terminal, 3-Pole |
| Type of protection | IP66/IP69K |
| Protection class IK (shock resistance) | IK10 |
| Dimmable | No |

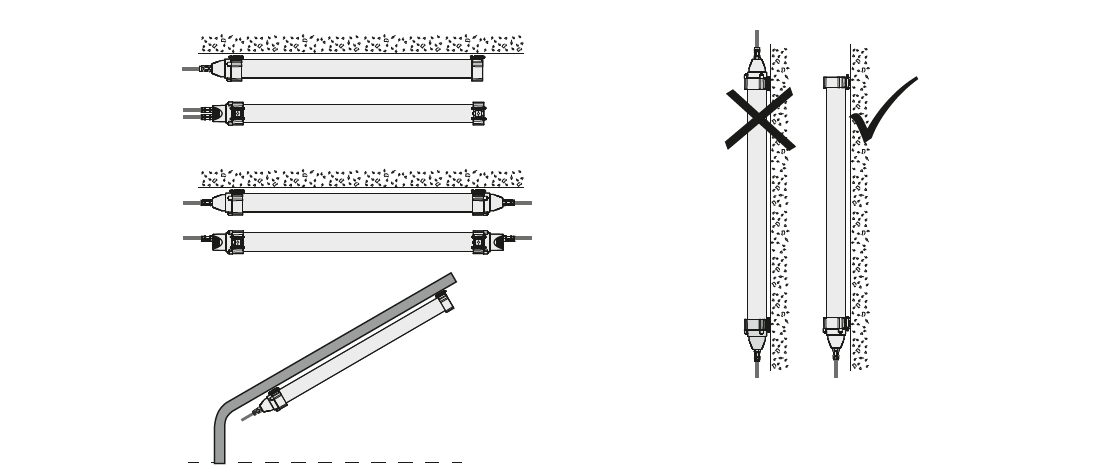

| Mounting type | Surface/Suspended |
| Mounting location | Ceiling, Wall |
| Application environment | Outdoor |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 100000 h 1) |
| Lifespan L80/B10 at 25 °C | 100000 h 1) |
| Number of switching cycles | > 200000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L80 / B50 @ 35 °C (Ta)
| ECG - Output ripple current | < 1 % |
| Recommended control gear | OT FIT 75/220-240/550 D NFC L |
| Type of emergency operation test | None |
| Standards | CE, CB, ENEC, UKCA, EAC |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
| Product remark | Available from April 2025 |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075849785 | Shipping box 1 |
1,016 mm x 165 mm x 146 mm | 3763.00 g | 24.48 dm³ |
