Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|
| LB FLEX BP DALI 1500 P 105W 840 W | 105 W | 50000 | 90 ° | 16275 lm | Yes |
| LB FLEX BP 1500 P 105W 840 W | 105 W | 50000 | 90 ° | 16275 lm | No |
| Nominal wattage | 105 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 450 mA |
| Inrush current | 35.35 A |
| Inrush current time Th50 | 290 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 21 |
| Max. number of luminaires per miniature circuit breaker C10 | 16 |
| Max. number of luminaires per miniature circuit breaker C16 | 27 |
| Power factor λ | ≥0.90 |
| Total harmonic distortion | ≤ 20 % |
| Protection class | I |
| Operating mode | ELECTRONIC CONTROL GEAR (ECG) |
| Luminous flux | 16275 lm |
| Luminous efficacy | 155 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 3 sdcm |
| Low flicker | Yes |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 90 ° |
| Length | 1527 mm |
| Height | 76.00 mm |
| Width | 117.00 mm |
| Product weight | 6000.00 g |
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -25…+50 °C |
| Temperature range at storage | -40…+80 °C |

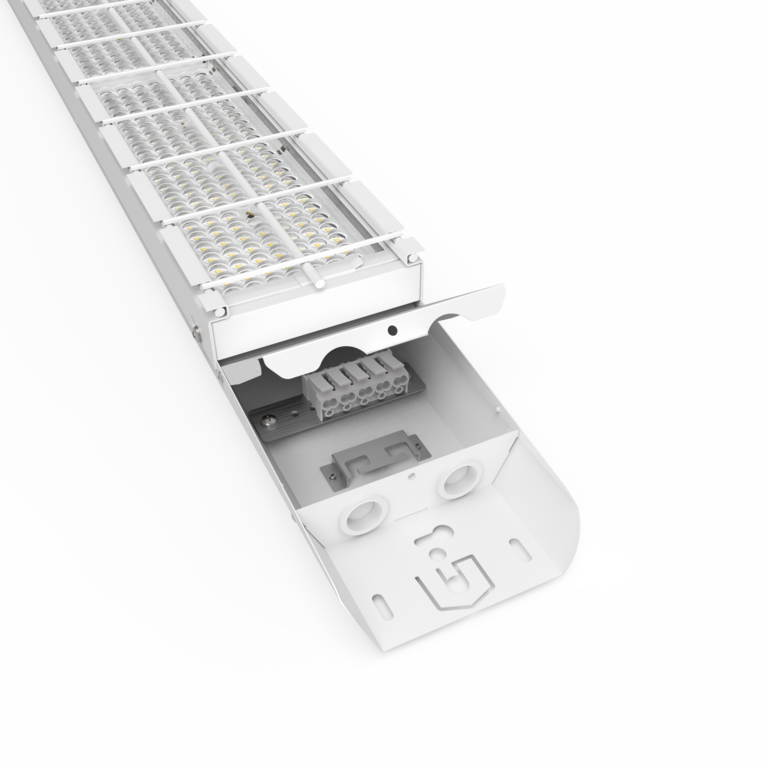

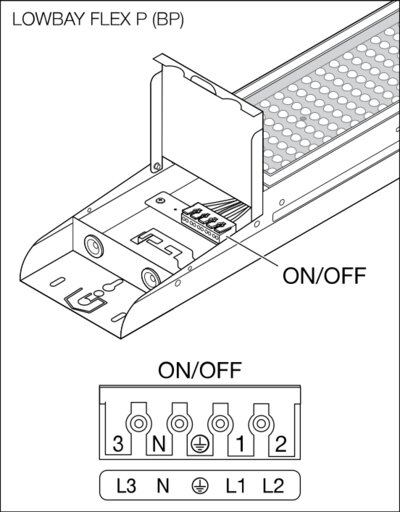

| Type of connection | Screwless terminal |
| Type of protection | IP23 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |

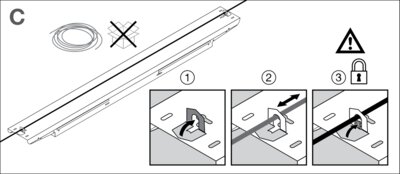

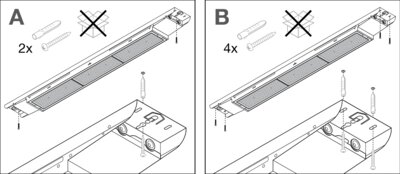

| Mounting type | Surface/Suspended |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Adjustable | No |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 100000 h 1) |
| Lifespan L80/B10 at 25 °C | 100000 h 1) |
| Lifespan L90/B10 at 25 °C | 82000 h |
| Number of switching cycles | 50000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Output current | 460 mA |
| ECG - Output ripple current | < 10 % |

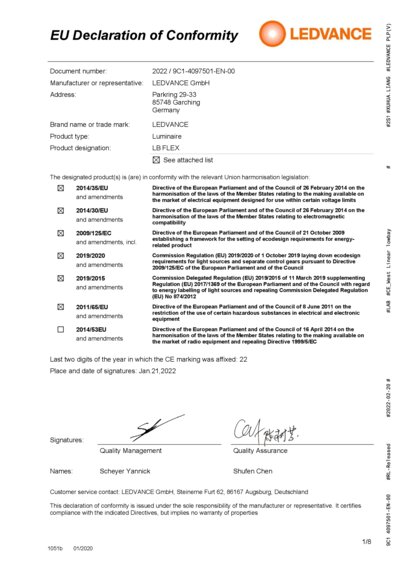

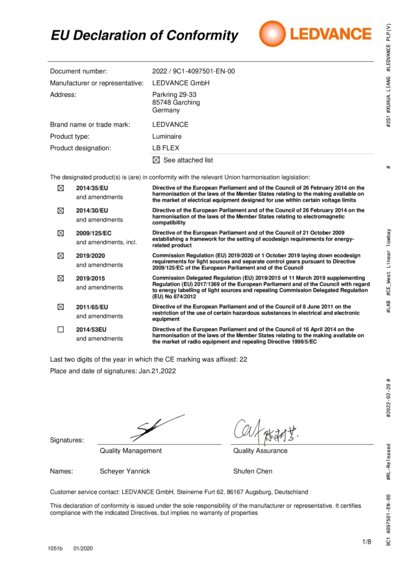

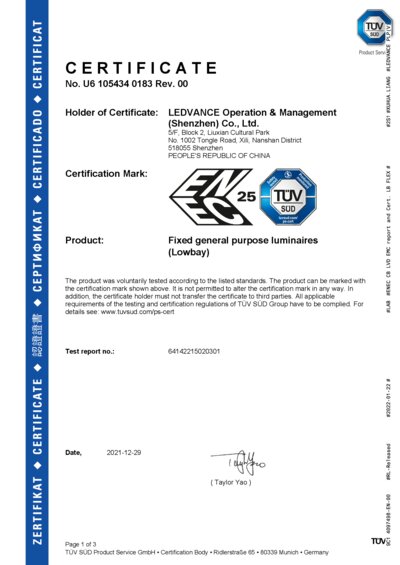

| Standards | CE, CB, ENEC, TÜV SÜD, EAC, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | Yes |

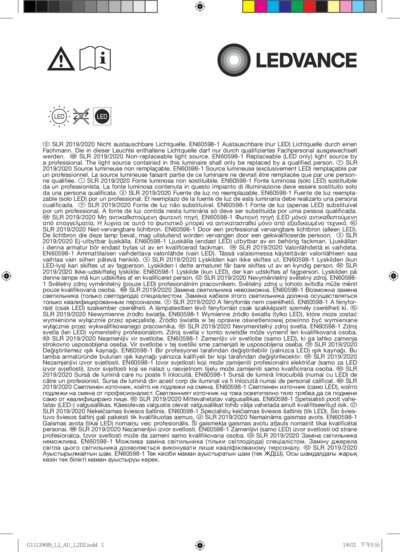

| Replaceable light source (EPREL) | Not replaceable |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

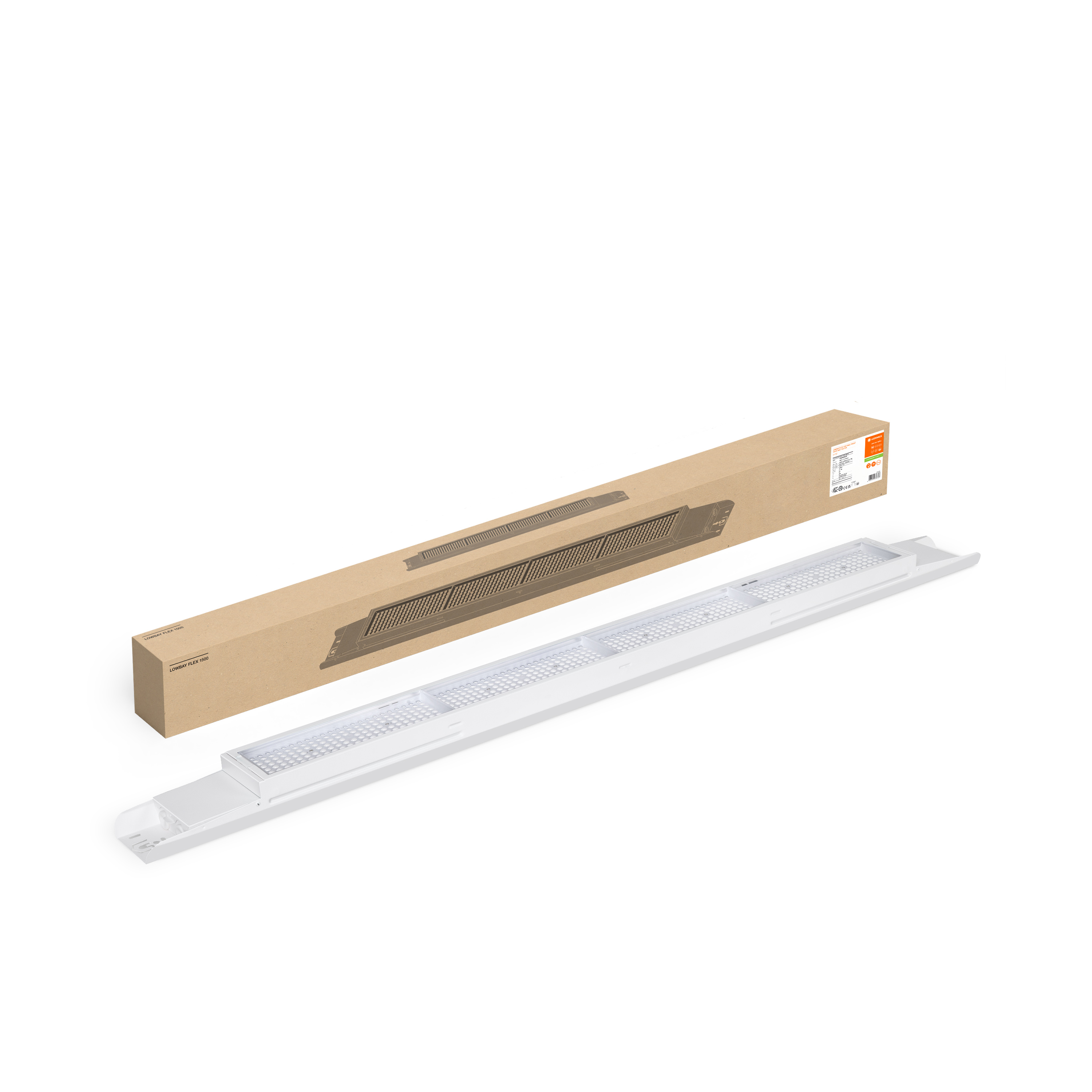

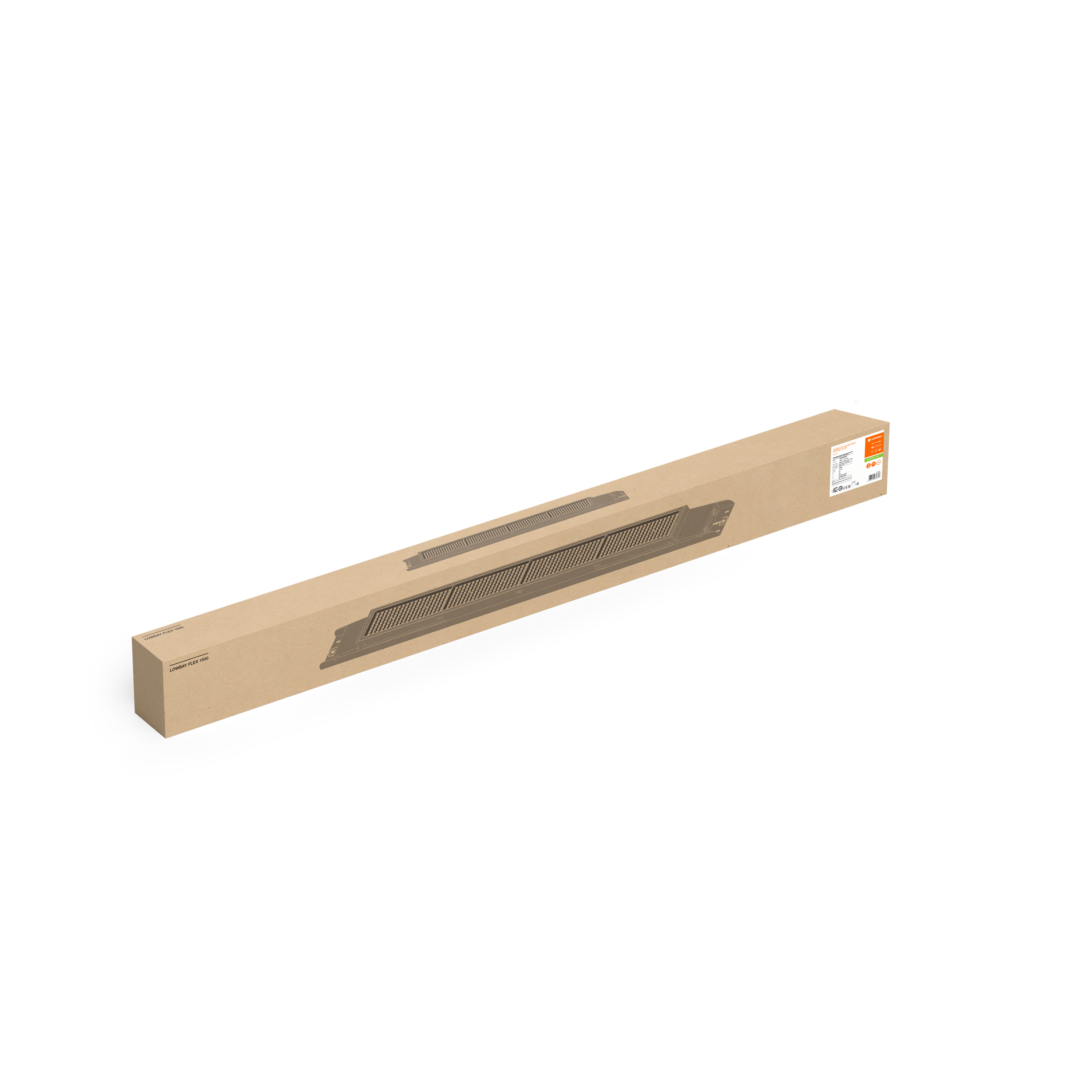

| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075676367 | Folding box 1 |
106 mm x 1,572 mm x 154 mm | 6433.00 g | 25.66 dm³ |
| 4058075676374 | Shipping box 3 |
1,602 mm x 488 mm x 143 mm | 21782.00 g | 111.79 dm³ |
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075676367 | 7216975 | 4324751 | 3310227 | 941386310 |
