PANEL PROTECT 625 UGR<19 PS

Choose your product version

36W 840 U19 PS

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
PL PROT 625 P 36W 840 U19 PS 36 W / 31 W / 26 W / 22 W 100000 90 ° 5040 lm / 4340 lm / 3640 lm / 3080 lm No


PL PROT 625 P 36W 840 U19 PS

Product benefits
  • Suitable for use in applications where a higher IP and IK protection is needed
  • Highly versatile due to selectable power steps (Power Select - PS) on the driver and up to 5040 lm
  • Tool-free electrical connection due to push button connector
  • Through-wiring possible with included connector box
  • Energy savings thanks to high system efficacy: up to 140 lm/W
  • High color consistency with SDCM 3
  • Extended services such as energy monitoring and remote maintenance possible with DALI versions
  • Good glare reduction (UGR ≤ 19)
  • Extended heat resistance of the diffuser with up to 850° C
  • Suitable for battery emergency installations acc. to EN 60598-2-22
  • Decentral emergency lighting possible with separately available LEDVANCE Emergency Conversion Box
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 36 W / 31 W / 26 W / 22 W 1)
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 165.000 mA
Inrush current 0,2 A
Inrush current time Th50 450 µs
Max. number of luminaires per miniature circuit breaker B16 16
Max. number of luminaires per miniature circuit breaker C10 24
Max. number of luminaires per miniature circuit breaker C16 38
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class II
Operating mode External LED driver

1) The Panel Protect family is fulfilling the technical minimum requirements according to the German BEG subsidy program for energy efficient luminaires

Photometrical data

Luminous flux 5040 lm / 4340 lm / 3640 lm / 3080 lm 1)
Luminous efficacy 140 lm/W 1)
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching 3 sdcm
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) < 0.4
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 90 °
UGR < 19

1) The Panel Protect family is fulfilling the technical minimum requirements according to the German BEG subsidy program for energy efficient luminaires

Dimensions & Weight

Length 620.00 mm
Height 34.00 mm
Width 620.00 mm
Product weight 2470.00 g

Materials & Colors

Product color White
Housing color White
Body material Steel
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -10…+50 °C
Temperature range at storage -20…+70 °C
Type of connection Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection IP54/IP20
Protection class IK (shock resistance) IK06
Dimmable No
Mounting type Recessed/Suspended/Surface
Mounting location Ceiling
Application environment Indoor
Mounting length 600 mm
Mounting width 600 mm
Mounting depth 50,0 mm
Adjustable No
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 70000 h 1)
Lifespan L90/B10 at 25 °C 50000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 800 mA
ECG - Output ripple current < 5 %
ECG - Length 125,0 mm
ECG - Width 60 mm
ECG - Height 26,7 mm
Recommended control gear OSRAM OTi_DALI_50/220-240/1A4 NFC / TRIDONIC LCA 45W 500–1400mA one4all SC PRE

Certificates & Standards

Standards CE, CB, ENEC, UKCA, EAC, EL
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

Additional product data

Added function MULTI SELECT

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Suitable for use in applications where a higher IP and IK protection is needed
  • Highly versatile due to selectable power steps (Power Select - PS) on the driver and up to 5040 lm
  • Tool-free electrical connection due to push button connector
  • Through-wiring possible with included connector box
  • Energy savings thanks to high system efficacy: up to 140 lm/W
  • High color consistency with SDCM 3
  • Extended services such as energy monitoring and remote maintenance possible with DALI versions
  • Good glare reduction (UGR ≤ 19)
  • Extended heat resistance of the diffuser with up to 850° C
  • Suitable for battery emergency installations acc. to EN 60598-2-22
  • Decentral emergency lighting possible with separately available LEDVANCE Emergency Conversion Box
  • 5 years guarantee
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Suitable for recessed ceiling systems with grid size of 625 x 625 mm
  • Hospitals
  • Laboratories
  • Kitchens, canteens, workspaces
Product features
  • Type of protection: IP54 (frontside), IP20 (backside)
  • Steel housing with notch in the backside for the driver to allow maximum height of 34 mm
  • Polycarbonate (PC) diffuser
  • 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
  • Luminaire versions with IoT-ready DALI-2 driver available
  • Lifetime (L90/B10): 50,000 h (at 25° C)
  • Panel can be customized with optical sensors on individual request
Equipment / Accessories
  • Accessories for several mounting options available
  • Connector box with 5-pole terminal pre-installed
  • Security brackets preinstalled
  • External control gear included
  • Suitable for use with seperate Emergency Conversion Box
  • Special mounting frame with an overall height of only 50 mm available separately
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854083488 Folding box
1		 41 mm x 627 mm x 627 mm 2898.00 g 16.12 dm³
4099854083495 Shipping box
5		 645 mm x 229 mm x 656 mm 15588.00 g 96.89 dm³
User instruction / safety instructions
UI PL PROT 600 P 36W a nd PL PROT 625 P 36W PDF (2.03 MB)
Legal information
LSI PL PROT P 36W PDF (2.65 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information
EM Insert PL PROTECT PDF (3.15 MB)
Declarations of conformity
CE Declaration PL PROT PDF (379.16 KB)
EPD
ENVIRONMENTAL PRODUCT DECLARATION PANEL PROT ECT PDF (668.81 KB)
Product image: white background, diagonal
PL PROT P 36W 840 U19 JPG (1.16 MB)
Product image: white background, upright
PL PROT P 36W 840 U19 JPG (2.44 MB)
Product image: white background, spacial
PL PROT P 36W 840 U19 JPG (1.01 MB)
Product image: white background, spacial
Panel Protect with opt ional SF Mount Kit H50 JPG (1.08 MB)
Product line drawing with letters
PL PROT 600 P 36W SVG (58.34 KB)
Product line drawing with numbers
PL PROT 625 P 36W SVG (8.49 KB)
Product line drawing with numbers
PL PROT 625 P 36W SVG (65.24 KB)
Product line drawing - technical
PL PROT 600 P 36W SVG (55.03 KB)
Packaging image, frontal
Panel PROTECT 625 36W MiCh JPG (3.85 MB)
Packaging image, spacial
Panel PROTECT 625 36W MiCh JPG (2.5 MB)
Catalog info 1
PL PROT 600 P and PL P ROT 625 P PNG (88.48 KB)
Catalog info 2
PL CMFT PNG (101.28 KB)
Catalog info 3
PL PROT 600 P and PL P ROT 625 P PNG (125.37 KB)
Catalog info 4
PL PROT 600 P and PL P ROT 625 P PNG (99.2 KB)
IES file (IES)
PL PROT 625 P 22W 840 U19 PS 3080LM IES (14.43 KB)
LDT file (Eulumdat)
PL PROT 625 P 22W 840 U19 PS 3080lm LDT (10.48 KB)
ULD file (DIALux)
PL PROT 625 P 36W 840 U19 PS ULD (230.91 KB)
ROLF file (RELUX)
PL PROT 600 P 36W 840 U19 PS ROLF (240.77 KB)

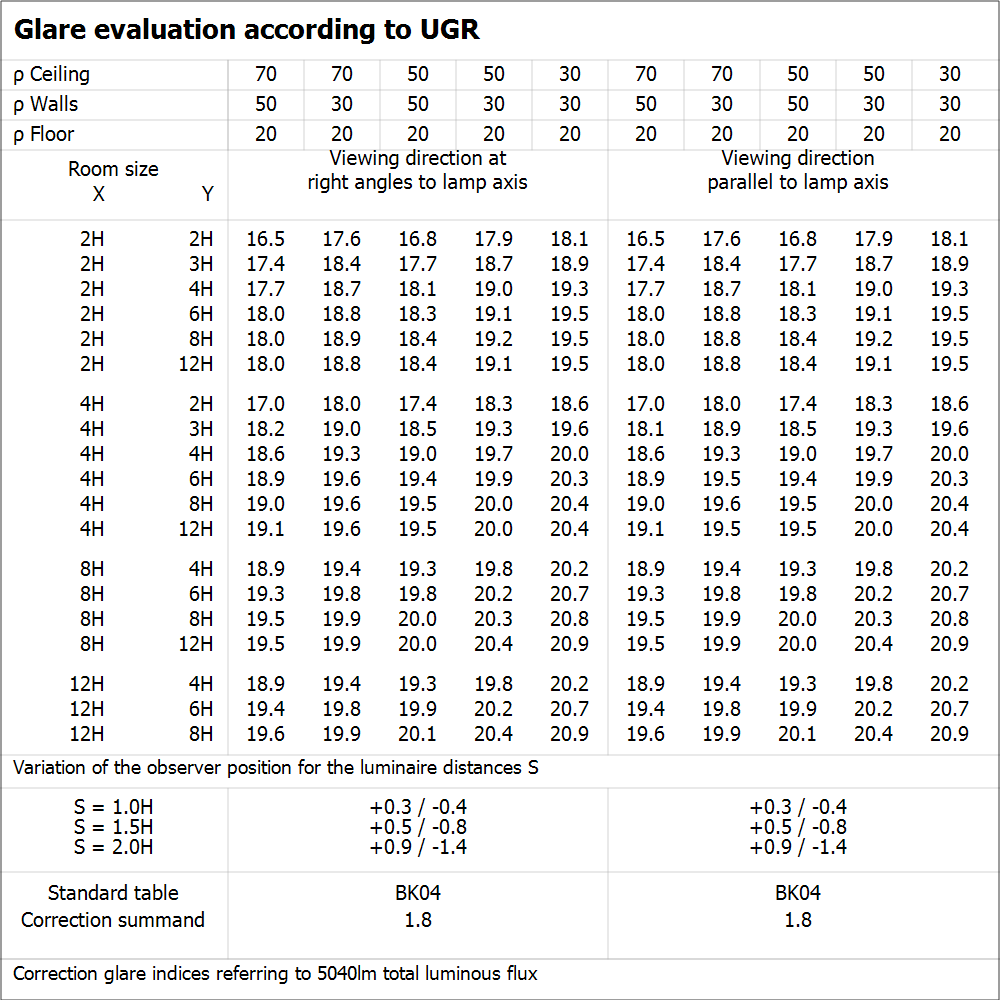

UGR file (UGR table)
PL PROT 625 P 22W 840 U19 PS 3080LM PNG (56.63 KB)
Light distribution curve type cone
PL PROT 625 P 22W 840 U19 PS 3080LM SVG (16.78 KB)
Light distribution curve type polar
PL PROT 625 P 22W 840 U19 PS 3080LM SVG (17.59 KB)
BIM Revit 3D
PL PROT ZIP (1.88 MB)
CAD STEP 3D
PL PROT 625 STEP (518.83 KB)
Application pictures
Canteen lounge area Pa nel Protect JPG (9.58 MB)
Application pictures Getty
Patient admission area Panel Protect JPG (8.59 MB)
Application pictures Getty
Hospital area Panel Pr otect JPG (5.9 MB)
Application pictures Getty
Hospital corridor area Panel Protect JPG (18.19 MB)
EAN ELDAS number
4099854083488 941005610
