Choose your product version
| Product description | Nominal wattage | Dimmable |
|---|---|---|

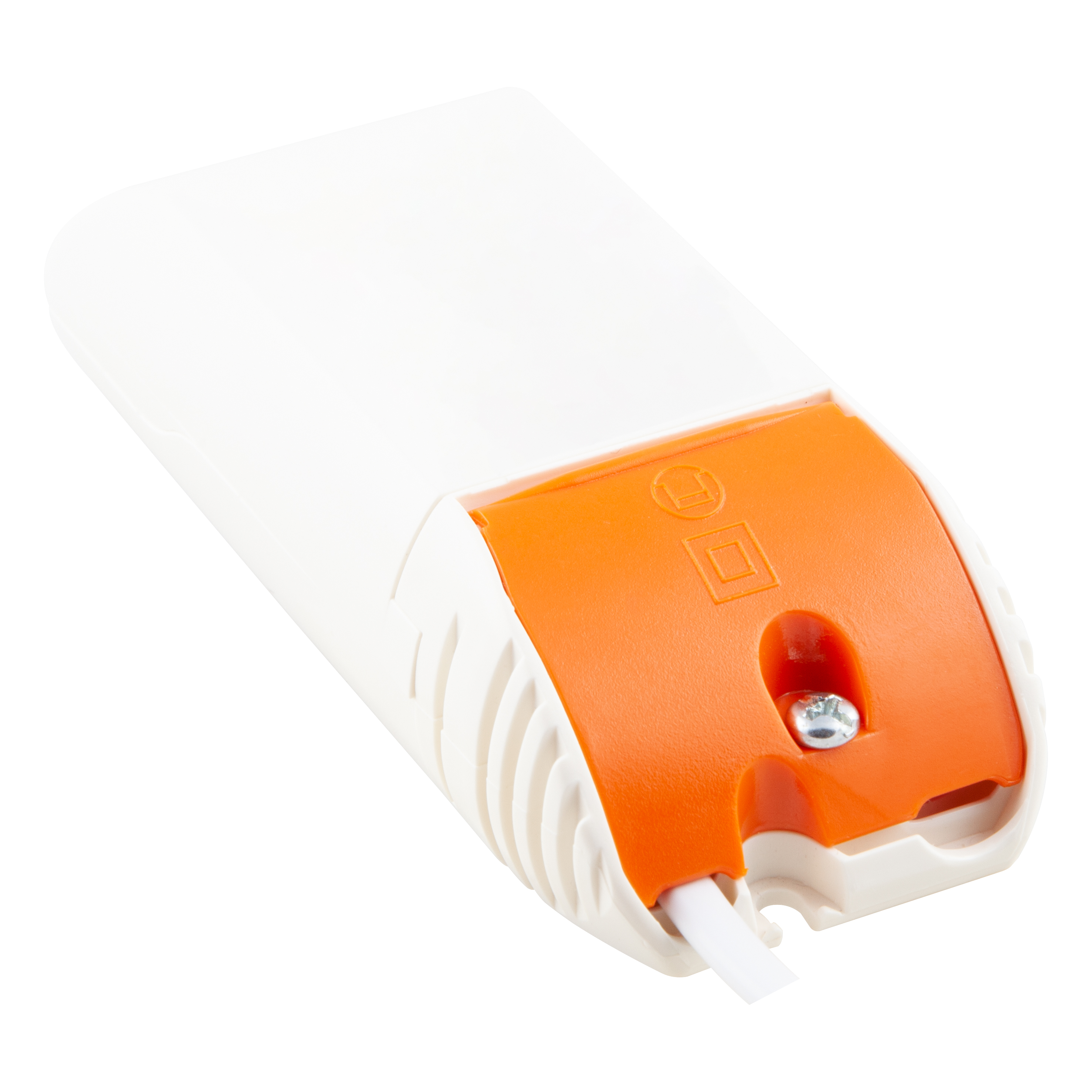

| SP DRIVER DALI 8W | 8.00 W | Yes |
| Nominal wattage | 8.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50/60 Hz |
| Max. number of luminaires per miniature circuit breaker B16 | 130 |
| Power factor λ | 0.90 |
| Protection class | II |
| Length | 120.00 mm |
| Height | 30.00 mm |
| Width | 53.00 mm |
| Product weight | 100.00 g |
| Product color | Grey |
| Body material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -42…+80 °C |
| Type of protection | IP20 |
| Dimmable | Yes |
| Type of dimming | DALI2 |
| Output current | 180 mA |
| Wattage in emergency operation mode | 3,0 W |
| Luminous flux in emergency operation mode | 120 lm |
| Standards | CE, UKCA, EAC |
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854089558 | Folding box 1 |
35 mm x 220 mm x 62 mm | 205.00 g | 0.48 dm³ |
| 4099854089565 | Shipping box 4 |
227 mm x 155 mm x 74 mm | 1025.00 g | 2.60 dm³ |
| EAN | SEG number |
|---|---|
| 4099854089558 | 7982578 |
