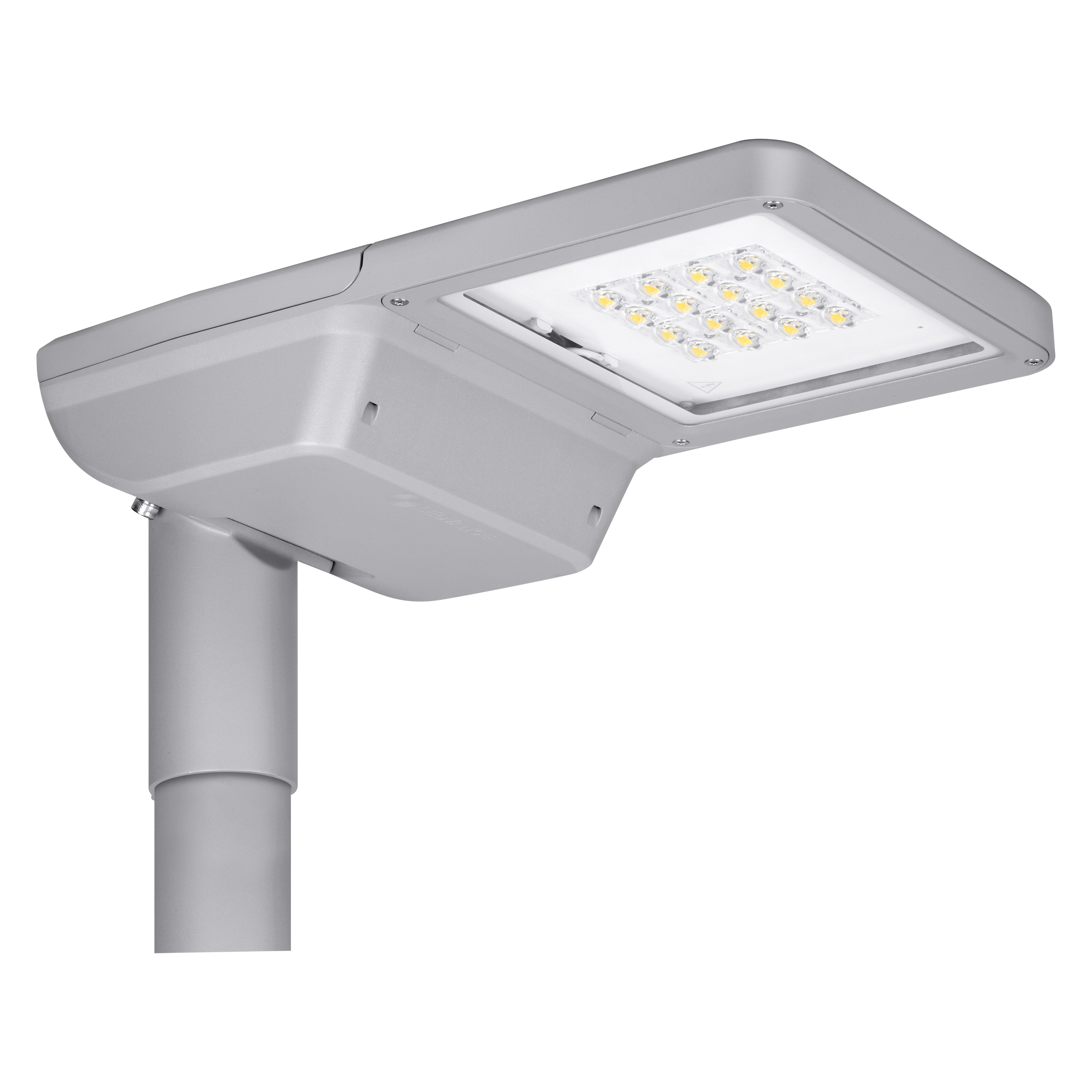

STREETLIGHT FLEX SMALL RV25ST

Choose your product version

P 13W 727 WAL

P 13W 730 WAL

P 13W 740 WAL

P 25W 727 WAL

P 25W 730 WAL

P 25W 740 WAL

P 36W 727 WAL

P 36W 730 WAL

P 36W 740 WAL

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
SL FLEX SM RV25ST P 13W 727 WAL 13.00 W 100000 25 ° x 145 ° 1650 lm No
SL FLEX SM RV25ST P 13W 730 WAL 13.00 W 100000 25 ° x 145 ° 1700 lm No
SL FLEX SM RV25ST P 13W 740 WAL 13.00 W 100000 25 ° x 145 ° 1780 lm No
SL FLEX SM RV25ST P 25W 727 WAL 25.00 W 100000 25 ° x 145 ° 3270 lm No
SL FLEX SM RV25ST P 25W 730 WAL 25.00 W 100000 25 ° x 145 ° 3370 lm No
SL FLEX SM RV25ST P 25W 740 WAL 25.00 W 100000 25 ° x 145 ° 3550 lm No
SL FLEX SM RV25ST P 36W 727 WAL 36.00 W 100000 25 ° x 145 ° 4850 lm No
SL FLEX SM RV25ST P 36W 730 WAL 36.00 W 100000 25 ° x 145 ° 4950 lm No
SL FLEX SM RV25ST P 36W 740 WAL 36.00 W 100000 25 ° x 145 ° 5180 lm No


SL FLEX SM RV25ST P 13W 727 WAL

Product benefits
  • Durable design and highest quality component selection for long lasting performance
  • Quick and easy wiring, due to tool-free housing opening and push button terminal
  • High light uniformity
  • 3 light colors available, perfectly suited to illuminate highly diverse surroundings
  • No upper light output ratio (ULOR 0%) when mounted at 0° tilt
  • Automatic mains disconnection when opening the housing
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 13.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 60 mA
Inrush current 25 A
Inrush current time Th50 150 µs
Max. number of luminaires per miniature circuit breaker B16 36
Max. number of luminaires per miniature circuit breaker C10 40
Max. number of luminaires per miniature circuit breaker C16 70
Power factor λ > 0.90
Total harmonic distortion < 10 %
Protection class II
Operating mode Integrated LED driver

Photometrical data

Luminous flux 1650 lm
Luminous efficacy 127 lm/W
Color temperature 2700 K
Light color (designation) Warm White
Color rendering index Ra 70
Standard deviation of color matching < 5 sdcm
Low flicker Yes
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG1
Beam angle 25 ° x 145 °

Dimensions & Weight

Length 445.00 mm
Height 90.00 mm
Width 250.00 mm
Product weight 4400.00 g

Materials & Colors

Product color White aluminum
Housing color White aluminum
Body material Aluminum
Cover material Tempered glass
Light emitting surface material Glass
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -40…+50 °C
Temperature range at storage -30…+80 °C
Type of connection Screwless terminal
Type of protection IP66
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Post top
Mounting location Pole
Application environment Outdoor
Adjustable Yes
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 100000 h 1)
Lifespan L90/B10 at 25 °C 100000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 480 mA
ECG - Output ripple current ≤ 10 %

Certificates & Standards

Standards CE, ENEC, EAC, EPD
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
EPD LEDV-00023-V01.01-EN
Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Durable design and highest quality component selection for long lasting performance
  • Quick and easy wiring, due to tool-free housing opening and push button terminal
  • High light uniformity
  • 3 light colors available, perfectly suited to illuminate highly diverse surroundings
  • No upper light output ratio (ULOR 0%) when mounted at 0° tilt
  • Automatic mains disconnection when opening the housing
  • 5 years guarantee
Areas of application
  • Outdoor use (IP66)
  • M-, C- and P-class roads acc. to EN 13201
  • Parking
  • Public areas
  • Industry
Product features
  • Light distributions optimized for streets of similar width to the pole height
  • Very long lifetime (L90/B10): Up to 100,000 h (at 25 °C)
  • Spigot for 48-60 mm poles included
  • Additional reduction for 42 mm and adapter for 76 mm poles available separately
  • Adjustable spigot for both side-entry and post-top installation
  • +/- 15° tilt angle adjustment without opening the housing
  • High luminous efficacy: up to 144 lm/W
  • Operating temperature: -40...50 °C
  • High surge protection: up to 10 kV (L/N-GND)
  • Protection class: II
Equipment / Accessories
  • Spigot for 42 and 76 mm poles available separately
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075552234 Shipping box
1		 502 mm x 330 mm x 235 mm 5235.00 g 38.93 dm³
Product image Product name EAN
SL FLEX SPIGOT 76MM WAL 4058075552531
SL FLEX REDUCTION 60 TO 42MM WAL 4058075552579
User instruction / safety instructions
SL FLEX WAL PDF (5.51 MB)
Legal information
LSI SL FLEX LA P PDF (2.41 MB)
Legal information
Legal insert SL FLEX W AL PDF (2.88 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information
Safety Insert G1121881 0 PDF (244.72 KB)
Declarations of conformity
SL FLEX MD PDF (272.98 KB)
EPD
ENVIRONMENTAL PRODUCT DECLARATION STREETLIGH T FLEX PDF (709.02 KB)
Product image: white background, diagonal
SL FLEX SM JPG (2.04 MB)
Product image: white background, horizontal
SL FLEX SM JPG (1.4 MB)
Product image: white background, upright
SL FLEX SM JPG (1.31 MB)
Product image: white background, upright, alternative image
SL FLEX SM JPG (1.26 MB)
Product image: white background, spacial
SL FLEX SM JPG (1.74 MB)
Product line drawing with letters
SL FLEX SM EPS (1.26 MB)
Product line drawing with numbers
SL FLEX SM EPS (1.29 MB)
Product line drawing - technical
SL FLEX SM EPS (1.2 MB)
Packaging image, spacial
Streetlight Flex SM Mi Ch JPG (1.76 MB)
Catalog info 1
SL FLEX P WALL SVG (23.69 KB)
Catalog info 2
SL FLEX P WALL SVG (20.46 KB)
Catalog info 3
SL FLEX P WALL SVG (104.59 KB)
Catalog info 4
SL FLEX P WALL SVG (70.21 KB)
Catalog info 5
SL FLEX P WALL SVG (37.08 KB)
IES file (IES)
SL FLEX SM P 13W 727 R V25ST WAL IES (45.92 KB)
LDT file (Eulumdat)
SL FLEX SM P 13W 727 R V25ST WAL LDT (61.78 KB)
ULD file (DIALux)
SL FLEX SM P 13W 727 ULD (316.42 KB)
ROLF file (RELUX)
SL FLEX SM P 13W 727 ROLF (678.33 KB)
Light distribution curve type polar
SL FLEX SM P 13W 727 R V25ST WAL SVG (17.21 KB)
BIM Revit 3D
SL FLEX SM ZIP (4.89 MB)
CAD STEP 3D
SL_FLEX_SM STEP (13.99 MB)
Application pictures
Streetlighting Case St udy Vernerovice 1 JPG (5.16 MB)
Application pictures
Streetlighting Case St udy Vernerovice 2 JPG (2.91 MB)
Application pictures
Streetlighting Case St udy Vernerovice 3 JPG (5.81 MB)
Application pictures
Streetlighting Case S tudy Vernerovice 4 JPG (4.59 MB)
Application pictures
Streetlighting Case S tudy Vernerovice 5 JPG (2.35 MB)
Application pictures
Streetlighting Case St udy Vernerovice 6 JPG (3.26 MB)
Application pictures
Streetlighting case st udy vernerovice 4 with blurry vehicle regist ration plate JPG (8.27 MB)
EAN STK number EFO number ELDAS number
4058075552234 4529730 3503500 941700270
