Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|
| TRUSYS FLEX P 35W 840 N CL WT | 35.00 W | 100000 | 60 ° | 6000 lm | No |
| TRUSYS FLEX P 50W 840 N CL WT | 50.00 W | 100000 | 60 ° | 8600 lm | No |
| TRUSYS FLEX P 70W 840 N CL WT | 70.00 W | 100000 | 60 ° | 12100 lm | No |
| TRUSYS FLEX P 35W 865 N CL WT | 35.00 W | 100000 | 60 ° | 6000 lm | No |
| TRUSYS FLEX P 50W 865 N CL WT | 50.00 W | 100000 | 60 ° | 8600 lm | No |
| TRUSYS FLEX P 70W 865 N CL WT | 70.00 W | 100000 | 60 ° | 12100 lm | No |
| TRUSYS FLEX P 35W 840 N CL WT DALI | 35.00 W | 100000 | 60 ° | 5800 lm | Yes |
| TRUSYS FLEX P 50W 840 N CL WT DALI | 50.00 W | 100000 | 60 ° | 8600 lm | Yes |
| TRUSYS FLEX P 70W 840 N CL WT DALI | 70.00 W | 100000 | 60 ° | 12100 lm | Yes |
| TRUSYS FLEX P 35W 865 N CL WT DALI | 35.00 W | 100000 | 60 ° | 5800 lm | Yes |
| TRUSYS FLEX P 50W 865 N CL WT DALI | 50.00 W | 100000 | 60 ° | 8600 lm | Yes |
| TRUSYS FLEX P 70W 865 N CL WT DALI | 70.00 W | 100000 | 60 ° | 12100 lm | Yes |
| Nominal wattage | 50.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 0/50/60 Hz |
| Nominal current | 230.000 mA |
| Inrush current | 43.8 A |
| Inrush current time Th50 | 188 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 9 |
| Max. number of luminaires per miniature circuit breaker C10 | 7 |
| Max. number of luminaires per miniature circuit breaker C16 | 12 |
| Power factor λ | ≥0.94 |
| Total harmonic distortion | ≤ 15 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
| Luminous flux | 8600 lm |
| Luminous efficacy | 175 lm/W |
| Color temperature | 6500 K |
| Light color (designation) | Cool Daylight |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | 3 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | ≤1 |
| Stroboscope effect metric (SVM) | ≤0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 60 ° |
| Length | 1500.00 mm |
| Height | 39.40 mm |
| Width | 77.70 mm |
| Product weight | 1750.00 g |
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Cover material | Polymethylmethacrylate (PMMA) |
| Light emitting surface material | Polymethylmethacrylate (PMMA) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -25…+40 °C |
| Temperature range at storage | -40…+80 °C |
| Type of connection | Plug-In connection |
| Type of protection | IP40 |
| Protection class IK (shock resistance) | IK04 |
| Dimmable | Yes |
| Type of dimming | DALI |
| Mounting type | Suspended/Surface |
| Mounting location | Mounting rail |
| Application environment | Indoor |
| Adjustable | No |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 100000 h 1) |
| Lifespan L80/B10 at 25 °C | 76000 h 1) |
| Lifespan L90/B10 at 25 °C | 43000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Output current | 1050 mA |
| ECG - Output ripple current | < 10 % |
| Standards | CE, CB, UKCA, ENEC, EAC |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
| Added function | VIVARES |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1), Nonafluorobutanesulphonic acid (375-73-5),2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329)(3147-75-9) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|

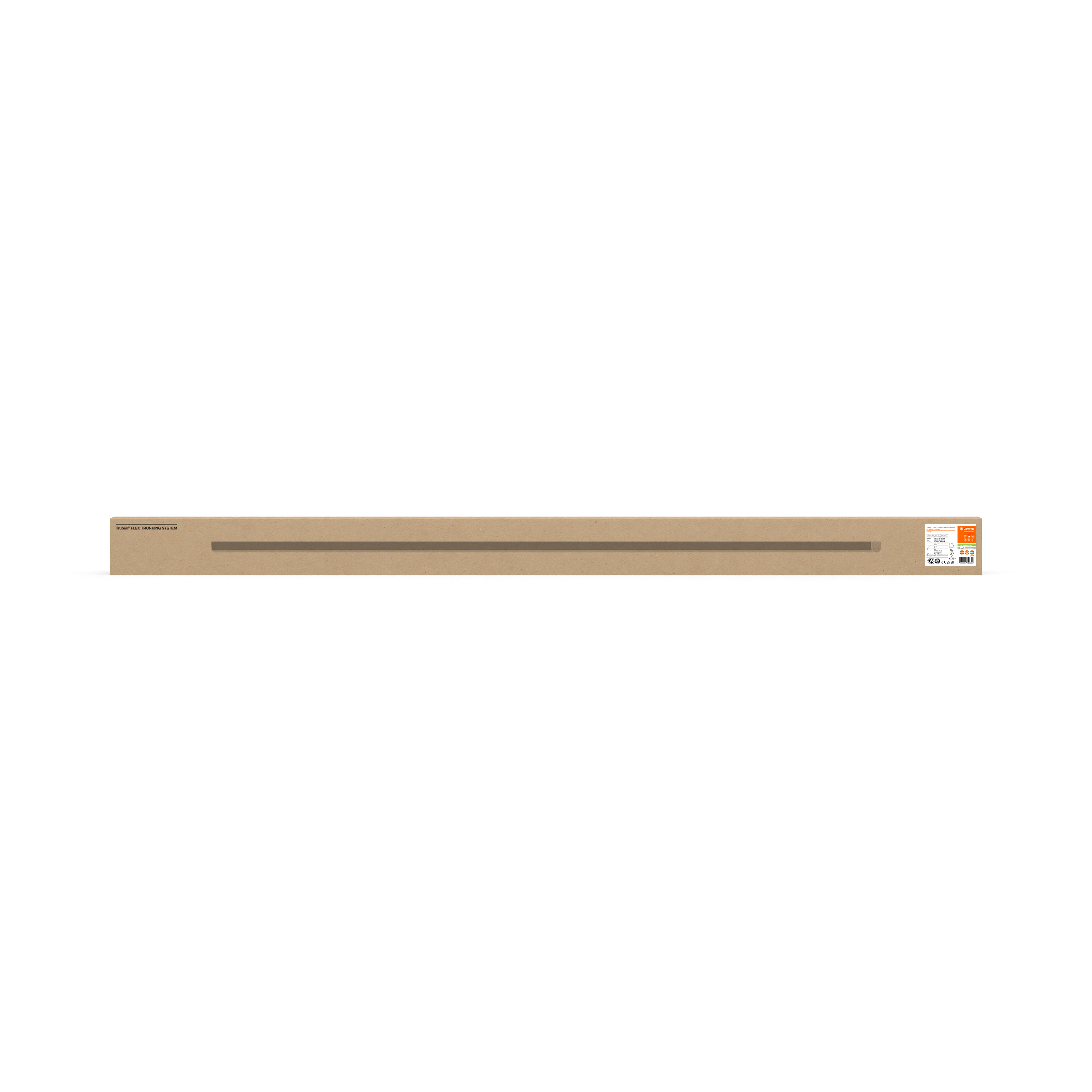

| 4099854191336 | Folding box 1 |
108 mm x 1,534 mm x 102 mm | 1925.00 g | 16.90 dm³ |
| 4099854191343 | Shipping box 4 |
1,547 mm x 218 mm x 231 mm | 8493.00 g | 77.90 dm³ |
