TruSys FLEX ENERGY RAIL 8-POLE

Choose your product version

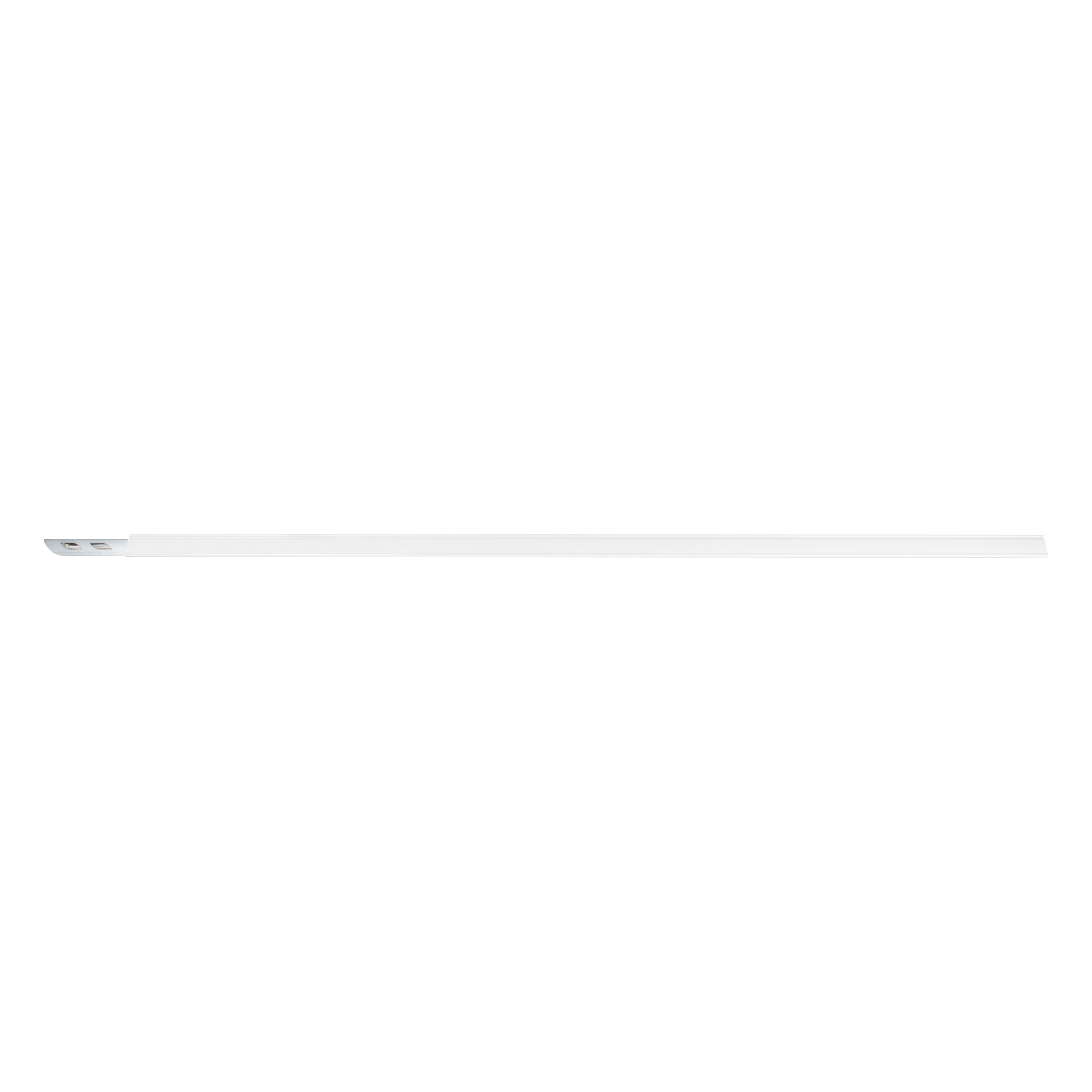

TRUSYS FLEX P RAIL 3000 8P WT

Product benefits
  • Simple installation
  • High flexibility thanks to three available lengths (1500 mm, 3000 mm, 4500 mm and 1500 mm end rail)
  • Version of 600 mm rail to be used with TRUSYS FLEX SENSOR TRACK

PRODUCT DETAILS

Dimensions & Weight

Length 3150 mm
Height 38.8 mm
Width 70.2 mm
Product weight 3250.00 g

Materials & Colors

Product color White
Body material Steel

Application & Mounting

Mounting location Ceiling
With light source No

Certificates & Standards

Standards CE, CB, UKCA, ENEC, EAC

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1), Nonafluorobutanesulphonic acid (375-73-5),2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329)(3147-75-9)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Simple installation
  • High flexibility thanks to three available lengths (1500 mm, 3000 mm, 4500 mm and 1500 mm end rail)
  • Version of 600 mm rail to be used with TRUSYS FLEX SENSOR TRACK
Areas of application
  • Industry halls, high rack warehouse, hardware stores
Product features
  • Through wired with 8 core cable
  • Different lenghts available
  • Electrical connection internal at the first luminaire, no external connection unit required
  • Steel-sheet housing
  • End-Rail without electrical and mechanical connectors
Equipment / Accessories
  • Various accessories available
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075781771 Sleeve
1
43 mm x 52 mm x 3,190 mm 3262.00 g 7.13 dm³
4058075781788 Shipping box
4
3,230 mm x 191 mm x 141 mm 14938.00 g 86.68 dm³
EAN STK number ELDAS number
4058075781771 4324843 941964730
