SURFACE CIRCULAR 500 DALI

Choose your product version

42W 830 IP44 DALI

42W 840 IP44 DALI

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
SF CIRC 500 V 42W 830 IP44 DALI 42.00 W 100000 120 ° 3500 lm Yes
SF CIRC 500 V 42W 840 IP44 DALI  42.00 W 100000 120 ° 3500 lm Yes


SF CIRC 500 V 42W 830 IP44 DALI

Product benefits
  • Indoor luminaire with high luminous efficacy
  • Integrated DALI-2 driver for extended functionalities
  • Energy savings of up to 55 % compared to luminaires that use CFL
  • Easy and quick installation
  • Very homogenous light
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 42.00 W
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 180.000 mA
Inrush current 10.90 A
Inrush current time Th50 330 µs
Max. number of luminaires per miniature circuit breaker B16 25
Max. number of luminaires per miniature circuit breaker C10 26
Max. number of luminaires per miniature circuit breaker C16 43
Power factor λ > 0.90
Total harmonic distortion < 10 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 3500 lm
Luminous efficacy 83 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching < 5 sdcm
Low flicker Yes
Flickering metric (Pst LM) < 1
Stroboscope effect metric (SVM) < 0.4
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °

Dimensions & Weight

Diameter 500.00 mm
Height 105.00 mm
Product weight 1260.00 g

Materials & Colors

Product color White
Housing color White
Body material Steel
Cover material Polymethylmethacrylate (PMMA)
Light emitting surface material Polymethylmethacrylate (PMMA)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+45 °C
Temperature range at storage -20…+80 °C
Type of connection Terminal, 5-pin
Type of protection IP44
Protection class IK (shock resistance) IK03
Dimmable Yes
Type of dimming DALI2
Mounting type Surface
Mounting location Ceiling, Wall
Application environment Indoor
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 45000 h 1)
Lifespan L90/B10 at 25 °C 40000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 1000 mA
ECG - Output ripple current < 30 %

Emergency lighting

Wattage in emergency operation mode 6 W
Luminous flux in emergency operation mode 550 lm

Certificates & Standards

Standards CE, CB, TÜV, UKCA, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

Additional product data

Added function VIVARES

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Indoor luminaire with high luminous efficacy
  • Integrated DALI-2 driver for extended functionalities
  • Energy savings of up to 55 % compared to luminaires that use CFL
  • Easy and quick installation
  • Very homogenous light
  • 5 years guarantee
Areas of application
  • Corridors
  • Stairways
  • Bathrooms
  • Foyers
Product features
  • Type of protection: IP44 (ceiling mounting), IP20 (wall mounting)
  • Suitable for central battery emergency installations acc. to EN 60598-2-22
  • Push DIM function for dimming and switching directly on a pushbutton
  • Extended lifetime (L70/B10): up to 50,000 h (at 25°C)
  • Impact resistance: IK03
  • Metal housing, PMMA cover
  • Ambient temperature in operation: -20…+40 °C
  • Indoor use only, not suitable for outdoor use
Equipment / Accessories
  • Replacement cover optionally available
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854077890 Folding box
1		 112 mm x 527 mm x 534 mm 1732.00 g 31.52 dm³
4099854077906 Shipping box
5		 582 mm x 547 mm x 564 mm 10699.00 g 179.55 dm³
User instruction / safety instructions
SF CIRC 500 PDF (4.31 MB)
Legal information
LISO Insert SF CIRCULA R 500 PDF (2.65 MB)
Legal information
Legal Insert SF CIRCUL AR 500 PDF (3.31 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
SF CIRCULAR PDF (237.43 KB)
Product image: white background, diagonal
SF CIRC 500 V 42W IP44 PS and SF CIRC 500 SE N V 42W IP44 PS JPG (938.26 KB)
Product image: white background, horizontal
SF CIRC 500 V 42W IP44 PS and SF CIRC 500 SE N V 42W IP44 PS JPG (852.81 KB)
Product image: white background, upright
SF CIRC 500 V 42W IP44 PS and SF CIRC 500 SE N V 42W IP44 PS JPG (1.52 MB)
Product line drawing with letters
SF CIRC 500 V 42W IP44 PS and SF CIRC 500 SE N V 42W IP44 PS SVG (7.95 KB)
Product line drawing with numbers
SF CIRC 500 V 42W IP44 PS and SF CIRC 500 SE N V 42W IP44 PS SVG (9.96 KB)
Product line drawing, front, no dimensions
SF CIRC 500 V 42W IP44 PS and SF CIRC 500 SE N V 42W IP44 PS SVG (3.54 KB)
Combo Shot = Product Beauty Shot + Packaging Image
Surface Circular 500 D ALI 42W 830 JPG (1.33 MB)
Packaging image, frontal
Surface Circular 500 D ALI 42W 830 JPG (1.8 MB)
Packaging image, spacial
Surface Circular 500 D ALI 42W 830 JPG (1.67 MB)
Catalog info 1
SF CIRC 500 PNG (50.08 KB)
Catalog info 2
SF CIRC 500 V PS and S F CIRC 500 SEN V PS PNG (167.47 KB)
IES file (IES)
SF CIRC 500 V 42W 830 IP44 PS 3500LM DALI IES (14.43 KB)
LDT file (Eulumdat)
SF CIRC 500 V 42W 830 IP44 PS 3500LM DALI LDT (11.22 KB)
ULD file (DIALux)
SF CIRC 500V 42W 830 I P44 DALI ULD (136.19 KB)
ROLF file (RELUX)
SURFACE CIRCULAR 500 D ALI 42W 830 ROLF (707.9 KB)

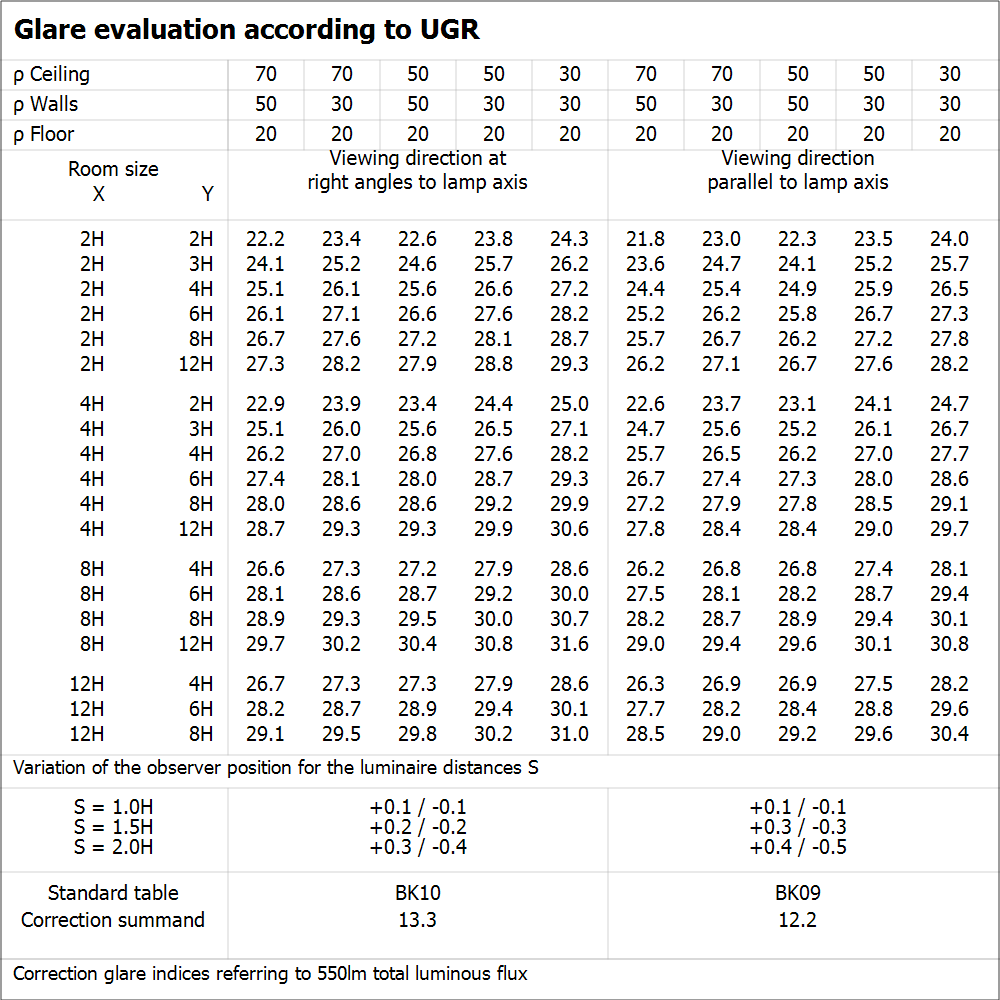

UGR file (UGR table)
SF CIRC 500 V 42W 830 IP44 PS 3500LM DALI PNG (61.43 KB)
Light distribution curve type cone
SF CIRC 500 V 42W 830 IP44 PS 3500LM DALI SVG (16.75 KB)
Light distribution curve type polar
SF CIRC 500 V 42W 830 IP44 PS 3500LM DALI SVG (20.41 KB)
BIM Revit 3D
SURFACE CIRCULAR ZIP (2.93 MB)
CAD STEP 3D
SF CIRC 500 STEP (153.42 KB)
Application pictures
Surface Circular with frame in the office li ghts on JPG (3.6 MB)
Application pictures
Surface Circular with frame in the office li ghts off JPG (3.35 MB)
Application pictures
Surface Circular with frame in a lobby light s off JPG (27.52 MB)
Application pictures Getty
Modern design interior area Surface Circular 500 JPG (7.76 MB)
Application pictures Getty
Surface Circular with frame in lobby lights on JPG (26.85 MB)
Application pictures Getty
Surface Circular with frame in a hospital JPG (5.79 MB)
Application pictures Getty
Surface Circular with frame in a hospital JPG (5.14 MB)
EAN SEG number STK number EFO number ELDAS number
4099854077890 7510658 4136277 3310306 941005500
