SURFACE CIRCULAR 250 SENSOR

Choose your product version

13W 830 IP44

13W 840 IP44

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
SF CIRC 250 SEN V 13W 830 IP44 13.00 W 50000 120 ° 920 lm No
SF CIRC 250 SEN V 13W 840 IP44 13.00 W 50000 120 ° 960 lm No


SF CIRC 250 SEN V 13W 830 IP44

Product benefits
  • Easy adjustment of sensor range, daylight detection and hold time
  • Indoor luminaire with high luminous efficacy
  • Energy savings of up to 55 % compared to luminaires that use CFL
  • Easy and quick installation
  • Very homogenous light
  • 3 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 13.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 100 mA
Inrush current 6.7 A
Inrush current time Th50 228 µs
Max. number of luminaires per miniature circuit breaker B16 75
Max. number of luminaires per miniature circuit breaker C10 58
Max. number of luminaires per miniature circuit breaker C16 94
Power factor λ > 0.55
Total harmonic distortion < 120 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 920 lm
Luminous efficacy 70 lm/W
Color temperature 3000 K
Light color (designation) Warm white
Color rendering index Ra > 80
Standard deviation of color matching < 6 sdcm
Luminous intensity -
Low flicker Yes
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 120 °
UGR ≤ 23

Dimensions & Weight

Diameter 250.00 mm
Height 91.00 mm
Product weight 390.00 g

Materials & Colors

Product color White
Housing color White
Body material Steel
Cover material Polymethylmethacrylate (PMMA)
Light emitting surface material PMMA
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Terminal, 3-pin
Type of protection IP44 1)
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Surface
Mounting location Ceiling, Wall
Application environment Indoor
With light source Yes

1) Type of protection: IP44 (ceiling mounting), IP20 (wall mounting)

Lifespan

Lifespan L70/B50 at 25 °C 30000 h 1)
Lifespan L80/B10 at 25 °C 22000 h 1)
Lifespan L90/B10 at 25 °C 15000 h
Number of switching cycles 50000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 145 mA

Sensor

Type of sensor Motion, Light
Sensor technology Microwave
Sensor detection angle 120 °
Sensor controlled switching time 5 s…30 min
Detection range of motion sensor 4…7 m
Detection threshold of daylight sensor 2…50 lx
Sensor IP rating IP44

Certificates & Standards

Standards CE, CB, TÜV SÜD, EAC, EPD
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
EPD LEDV-00010-V01.01-EN
Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Easy adjustment of sensor range, daylight detection and hold time
  • Indoor luminaire with high luminous efficacy
  • Energy savings of up to 55 % compared to luminaires that use CFL
  • Easy and quick installation
  • Very homogenous light
  • 3 years guarantee
Areas of application
  • Corridors
  • Stairways
  • Bathrooms
  • Foyers
Product features
  • High frequency sensor for daylight and motion detection
  • Type of protection: IP44 (ceiling mounting), IP20 (wall mounting)
  • Impact resistance: IK03
  • Metal housing, PMMA cover
  • Ambient temperature in operation: -20…+40 °C
  • Indoor use only, not suitable for outdoor use
Equipment / Accessories
  • Replacement cover optional available
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075617902 Folding box
1		 280 mm x 282 mm x 98 mm 308.00 g 7.74 dm³
4058075617919 Shipping box
5		 525 mm x 305 mm x 315 mm 2162.00 g 50.44 dm³
User instruction / safety instructions
SURFACE CIRCULAR SENSO R PDF (4.06 MB)
Legal information
LS Insert SF Circular PDF (1.3 MB)
Legal information
LS Insert SF Circular PDF (1.3 MB)
Legal information
Legal Insert SF CIRC S EN V IP44 PDF (2.96 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
CE Declaration SF CIRC SEN PDF (239.22 KB)
EPD
ENVIRONMENTAL PRODUCT DECLARATION SF Circula r PDF (640.76 KB)
Product image: white background, diagonal
SF CIRCULAR 250 S TIF (90.87 MB)
Product image: white background, horizontal
SF CIRCULAR 250 S TIF (90.87 MB)
Product line drawing with letters
SF CIRCULAR 250 S SVG (6.2 KB)
Product line drawing with numbers
SF CIRCULAR 250 S SVG (10.36 KB)
Product line drawing, front, no dimensions
SF CIRCULAR 250 S SVG (4.17 KB)
Combo Shot = Product Beauty Shot + Packaging Image
SF CIRC 250 SEN V 13W 830 IP44 JPG (1.01 MB)
Packaging image, spacial
Surface Circular LED 2 50 13W MiCh JPG (1.54 MB)
Catalog info 1
Surface Circular 250 3 50 400 S SVG (108.34 KB)
Catalog info 2
Surface Circular 250 3 50 400 S SVG (45.85 KB)
IES file (IES)
SF CIRC 250 SEN V 13W 830 IP44 IES (9.97 KB)
LDT file (Eulumdat)
SF CIRC 250 SEN V 13W 830 IP44 LDT (10.47 KB)
ULD file (DIALux)
SF CIRC 250 SEN V 13W 830 IP44 ULD (498.69 KB)
ROLF file (RELUX)
SF CIRC 250 SEN V 13W 830 ROLF (626.22 KB)

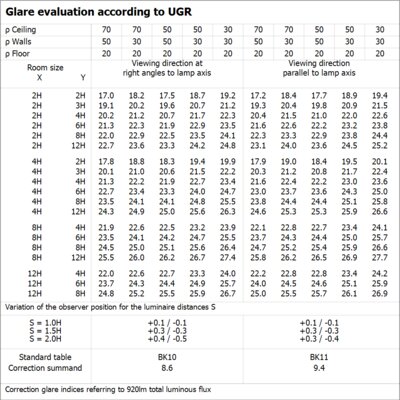

UGR file (UGR table)
SF CIRC 250 SEN V 13W 830 IP44 PNG (60.95 KB)
Light distribution curve type cone
SF CIRC 250 SEN V 13W 830 IP44 SVG (16.76 KB)
Light distribution curve type polar
SF CIRC 250 SEN V 13W 830 IP44 SVG (20.41 KB)
BIM Revit 3D
SURFACE CIRCULAR ZIP (2.93 MB)
CAD STEP 3D
SF CIRC 250 STEP (30.31 KB)
EAN SEG number STK number EFO number ELDAS number
4058075617902 7508139 4127147 3004870 941003030
