Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|

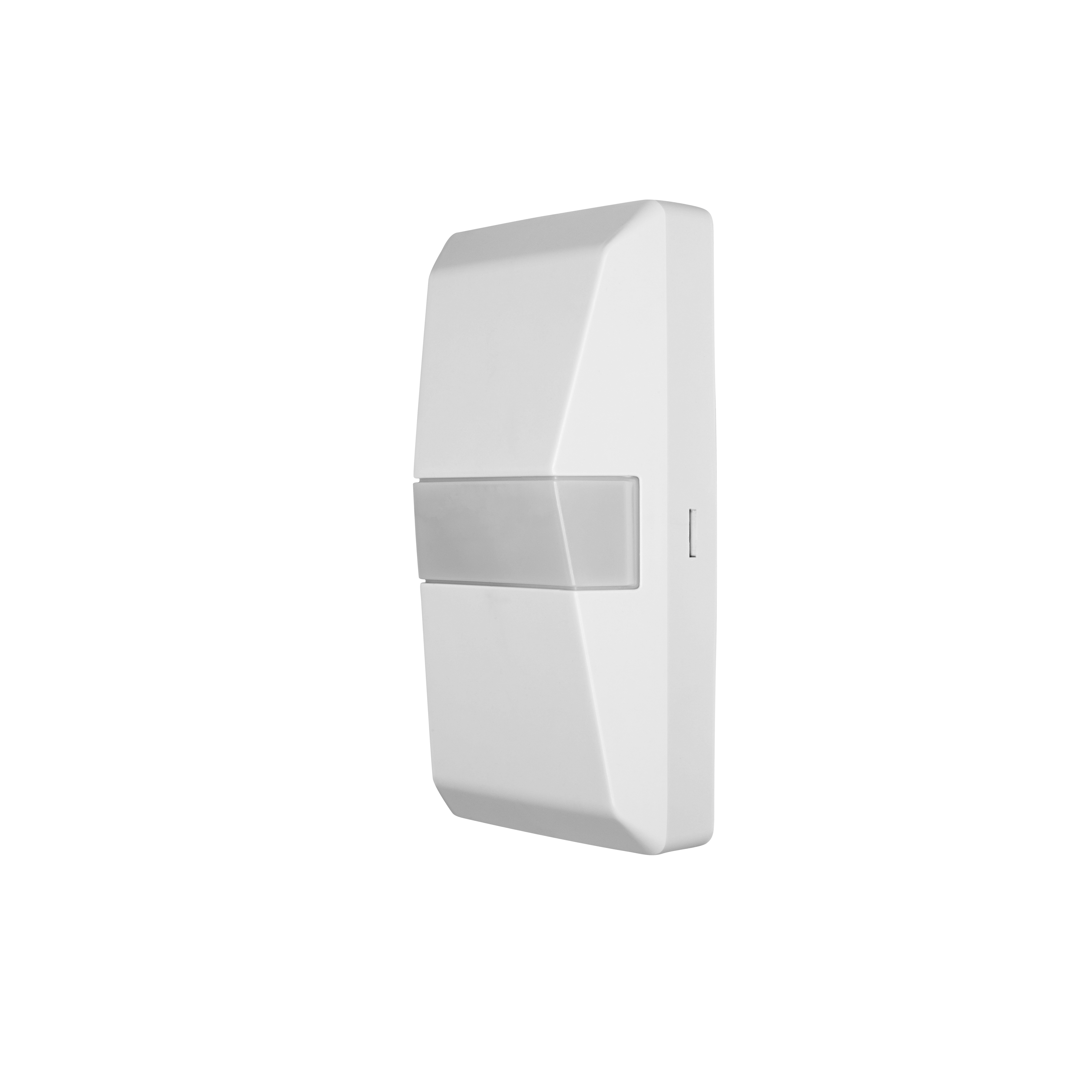

| ENDURA PRO UpDown Sensor 10W 4000K IP55 White | 10.00 W | 12500 | 60 ° x 85 ° | 1000 lm | No |
| Nominal wattage | 10.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 55.000 mA |
| Inrush current | 4 A |
| Inrush current time Th50 | < 10 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 150 |
| Max. number of luminaires per miniature circuit breaker C10 | 120 |
| Max. number of luminaires per miniature circuit breaker C16 | 192 |
| Power factor λ | > 0.85 |
| Protection class | II |
| Operating mode | Mains voltage |
| Luminous flux | 1000 lm |
| Total luminous flux of contained light sources | 1360 lm |
| Luminous efficacy | 91 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | ≤6 sdcm |
| Flickering metric (Pst LM) | <=1 |
| Stroboscope effect metric (SVM) | <=0.9 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 60 ° x 85 ° |
| Length | 87.00 mm |
| Height | 180.00 mm |
| Width | 55.00 mm |
| Product weight | 312.00 g |
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -30…+70 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP55 |
| Protection class IK (shock resistance) | IK05 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall |
| Application environment | Outdoor |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 12500 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Output current | 223…247 mA |
| Type of sensor | Light, Motion |
| Sensor technology | Passive infrared (PIR) |
| Sensor detection angle | 180 ° |
| Sensor controlled switching time | 5 s…15 min |
| Detection range of motion sensor | 12 m |
| Detection threshold of daylight sensor | 1…1000 lx |
| Standards | CE, EAC, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075228948 | Folding box 1 |
75 mm x 95 mm x 189 mm | 351.00 g | 1.35 dm³ |
| 4058075228955 | Shipping box 6 |
225 mm x 200 mm x 206 mm | 2314.00 g | 9.27 dm³ |
| EAN | ELDAS number |
|---|---|
| 4058075228948 | 941200210 |
