PANEL COMFORT 1200 DALI

Choose your product version

33W 830 DALIVR

33W 840 DALIVR

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
PL CMFT 1200 P 33W 830 DALIVR 33.00 W 50000 110 ° 4320 lm Yes
PL CMFT 1200 P 33W 840 DALIVR 33.00 W 50000 110 ° 4320 lm Yes


PL CMFT 1200 P 33W 830 DALIVR

Product benefits
  • Suitable luminaire for VIVARES and other DALI-2 Light Management Systems
  • Tool-free electrical connection due to push button connector
  • Through-wiring possible with included connector box
  • Energy savings thanks to high system efficacy: up to 130 lm/W
  • High color consistency with SDCM 3
  • Extended services such as energy monitoring and remote maintenance possible with DALI versions
  • External driver for extended flexibility and easy installation
  • Low flicker light thanks to special electronic control gear
  • Suitable for emergency lighting
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 33.00 W 1)
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 155.000 mA
Inrush current 4,4 A
Inrush current time Th50 440 µs
Max. number of luminaires per miniature circuit breaker B16 40
Max. number of luminaires per miniature circuit breaker C10 40
Max. number of luminaires per miniature circuit breaker C16 65
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class II
Operating mode External LED driver

1) CRI80 versions of the Panel Comfort family are fulfilling the technical minimum requirements according to the German BEG subsidy program for energy efficient luminaires

Photometrical data

Luminous flux 4320 lm 1)
Luminous efficacy 130 lm/W 1)
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching ≤3 sdcm
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) < 0.4
Photobiological safety group acc. to EN62778 RG0
Beam angle 110 °

1) CRI80 versions of the Panel Comfort family are fulfilling the technical minimum requirements according to the German BEG subsidy program for energy efficient luminaires

Dimensions & Weight

Length 1195.00 mm
Height 11.00 mm
Width 295.00 mm
Product weight 3000.00 g

Materials & Colors

Product color White
Housing color White
Body material Steel
Cover material Polystyrene (PS)
Light emitting surface material Polystyrene
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -10…+50 °C
Temperature range at storage -20…+80 °C
Type of connection Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection IP40/IP20
Protection class IK (shock resistance) IK02
Dimmable Yes
Type of dimming DALI2
Mounting type Recessed/Suspended/Surface
Mounting location Ceiling
Application environment Indoor
Mounting length 1185 mm
Mounting width 285 mm
Mounting depth 50,0 mm
Adjustable No
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 70000 h 1)
Lifespan L90/B10 at 25 °C 48000 h
Number of switching cycles 50000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 750 mA
ECG - Output ripple current < 5 %
ECG - Length 209,00 mm
ECG - Width 42,5 mm
ECG - Height 30 mm
Recommended control gear OSRAM OTI DALI 50/220-240/1A4 NFC; Tridonic LCA 45W 500-1400mA one4all SC PRE

Emergency lighting

Wattage in emergency operation mode 6,5 W
Luminous flux in emergency operation mode 600 lm

Certificates & Standards

Standards CE, CB, ENEC, UKCA, EAC, EPD
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
EPD LEDV-00012-V01.01-EN
Replaceable light source (EPREL) Not replaceable

Additional product data

Added function VIVARES

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Additional info can be provided per individual request

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Suitable luminaire for VIVARES and other DALI-2 Light Management Systems
  • Tool-free electrical connection due to push button connector
  • Through-wiring possible with included connector box
  • Energy savings thanks to high system efficacy: up to 130 lm/W
  • High color consistency with SDCM 3
  • Extended services such as energy monitoring and remote maintenance possible with DALI versions
  • External driver for extended flexibility and easy installation
  • Low flicker light thanks to special electronic control gear
  • Suitable for emergency lighting
  • 5 years guarantee
Areas of application
  • Direct replacement for recessed luminaires with fluorescent lamps
  • Offices, conference rooms
  • Reception areas, foyers, corridors, elevators
  • Suitable for recessed ceiling systems with grid size of 1200 x 300 mm
Product features
  • IoT-ready luminaire with DALI-2 technology
  • Suitable for central battery emergency installations acc. to EN 60598-2-22
  • Push DIM function for dimming and switching directly on a pushbutton
  • Extruded aluminum frame
  • Polystyrene diffuser
  • 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
  • Lifetime (L80/B10): 70,000 h (at 25 °C)
Equipment / Accessories
  • Accessories for several mounting options available
  • Connector box with 5-pole terminal included
  • Security rope for luminaire included
  • Security brackets preinstalled
  • External control gear included
  • Separate DC twist lock cable extension available
  • Suitable for use with seperate Emergency Conversion Box
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854004001 Folding box
1		 37 mm x 344 mm x 1,322 mm 3452.00 g 16.83 dm³
4099854004018 Shipping box
4		 1,352 mm x 167 mm x 379 mm 14140.00 g 85.57 dm³
Product image Product name EAN
PANEL 1200 CABLE EXT TWIST LOCK 4099854018510
EM CONVERSION BOX 4058075237025
PANEL 1200x300 RECESSED MOUNT FRAME 4058075472976
PANEL 1200 Surface Mount Kit 4058075108820
PANEL RECESSED MOUNT CLIPS VAL 4x 4058075409859
PANEL Suspension Kit 4058075402928
PANEL 1200 X 300 SF MOUNT KIT H70 VAL 4099854018497
User instruction / safety instructions
PL CMFT 1200 P PDF (3.55 MB)
Legal information
LISO Insert Panel CMFT 1200 P PDF (2.66 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information
EM Insert PL COMFORT PDF (3.17 MB)
Declarations of conformity
CE Declaration PL CMFT 1200 DALIVR PDF (300.95 KB)
Declarations of conformity
CE Declaration PL CMFT 1200 DALIVR PDF (299.78 KB)
EPD
EPD PANEL COMFORT EDGE LIT PDF (631.42 KB)
Product image: white background, diagonal
PL PFM 1200 33W JPG (690.64 KB)
Product image: white background, upright
PL PFM 1200 33W JPG (647.51 KB)
Product line drawing with letters
Panel LED 1200 ml k SVG (10.17 KB)
Product line drawing with numbers
PL COMP 1200 PNG (21.62 KB)
Product line drawing, front, no dimensions
Panel LED 1200 k SVG (6.73 KB)
Combo Shot = Product Beauty Shot + Packaging Image
PL CMFT 1200 P 33W 830 DALIVR JPG (884.89 KB)

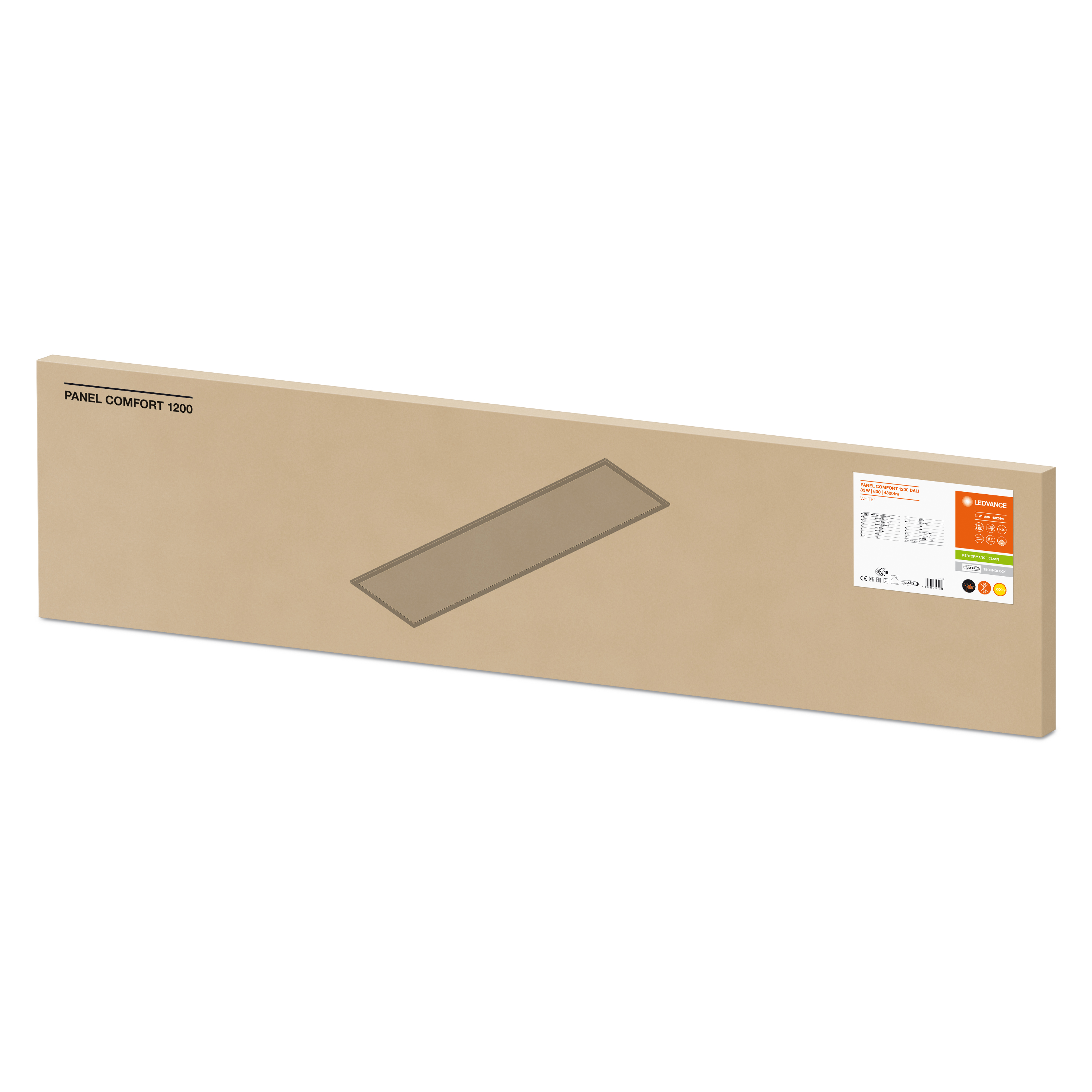

Packaging image, spacial
PANEL COMFORT 1200 DAL I 33W 830 JPG (1.36 MB)
Catalog info 2
PL CMFT PNG (101.28 KB)
Catalog info 3
CIA3_PL CMFT 1200 PNG (45.61 KB)
IES file (IES)
PL CMFT 1200 P 33W 830 DALIVR IES (7.9 KB)
LDT file (Eulumdat)
PL CMFT 1200 P 33W 830 DALIVR LDT (9.81 KB)
ULD file (DIALux)
PL CMFT 1200 P 33W 830 DALI ULD (118.78 KB)
ROLF file (RELUX)
PL CMFT 1200 P 33W 830 DALI ROLF (101.16 KB)
UGR file (UGR table)
PL CMFT 1200 P 33W 830 DALIVR EM CONVERSION BOX PNG (58.53 KB)
UGR file (UGR table)
PL CMFT 1200 P 33W 830 DALIVR EM PNG (58.95 KB)
UGR file (UGR table)
PL CMFT 1200 P 33W 830 DALIVR PNG (59.58 KB)
Light distribution curve type cone
PL CMFT 1200 P 33W 830 DALIVR EM CONVERSION BOX SVG (16.75 KB)
Light distribution curve type cone
PL CMFT 1200 P 33W 830 DALIVR EM SVG (16.76 KB)
Light distribution curve type cone
PL CMFT 1200 P 33W 830 DALIVR SVG (16.77 KB)
Light distribution curve type polar
PL CMFT 1200 P 33W 830 DALIVR EM CONVERSION BOX SVG (17.43 KB)
Light distribution curve type polar
PL CMFT 1200 P 33W 830 DALIVR EM SVG (17.43 KB)
Light distribution curve type polar
PL CMFT 1200 P 33W 830 DALIVR SVG (18.01 KB)
BIM Revit 3D
PL_CMFT ZIP (3.06 MB)
CAD STEP 3D
PL_CMFT_1200 STEP (24.51 KB)
Application pictures
2019 EHH car center ca se study No:21 from 29 JPG (7.97 MB)
EAN SEG number STK number EFO number ELDAS number
4099854004001 7024378 4136221 3310259 941322340
