LOW BAY FLEX 1200 DALI

Choose your product version

DALI P 42W 840 N

DALI P 42W 840 W

DALI P 42W 840 VW

DALI P 42W 840 OV

DALI P 73W 840 N

DALI P 73W 840 W

DALI P 73W 840 VW

DALI P 73W 840 OV

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
LB FLEX 1200 DALI P 42W 840 N 42 W 50000 60 ° 6510 lm Yes
LB FLEX 1200 DALI P 42W 840 W 42 W 50000 90 ° 6510 lm Yes
LB FLEX 1200 DALI P 42W 840 VW 42 W 50000 120 ° 6510 lm Yes
LB FLEX 1200 DALI P 42W 840 OV 42 W 50000 40 ° x 90 ° 6510 lm Yes
LB FLEX 1200 DALI P 73W 840 N 73 W 50000 60 ° 11315 lm Yes
LB FLEX 1200 DALI P 73W 840 W 73 W 50000 90 ° 11315 lm Yes
LB FLEX 1200 DALI P 73W 840 VW 73 W 50000 120 ° 11315 lm Yes
LB FLEX 1200 DALI P 73W 840 OV 73 W 50000 40 ° x 90 ° 11315 lm Yes


LB FLEX 1200 DALI P 42W 840 N

Product benefits
  • High compatibility thanks to DALI-2 certification
  • Economical thanks to high luminous efficacy up to 155 lm/W
  • Easy and quick installation thanks to toolless connector box with 5- and 7-pole terminals
  • Modern and robust design
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 42 W
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 190 mA
Inrush current 22.4 A
Inrush current time Th50 176 µs
Max. number of luminaires per miniature circuit breaker B16 16
Max. number of luminaires per miniature circuit breaker C10 16
Max. number of luminaires per miniature circuit breaker C16 16
Power factor λ ≥0.90
Total harmonic distortion ≤ 20 %
Protection class I
Operating mode Electronic control gear (ECG)

Photometrical data

Luminous flux 6510 lm
Luminous efficacy 155 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra ≥80
Standard deviation of color matching < 3 sdcm
Low flicker Yes
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG1
Beam angle 60 °

Dimensions & Weight

Length 1236.00 mm
Height 65.00 mm
Width 115.00 mm
Product weight 3300.00 g

Materials & Colors

Product color White
Housing color White
Body material Steel
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -25…+50 °C
Temperature range at storage -20…+80 °C
Type of connection SCREWLESS TERMINAL, 7-POLE (L1, L2, L3, N, PE, DA, DA)
Type of protection IP23
Protection class IK (shock resistance) IK08
Dimmable Yes
Type of dimming DALI2
Mounting type Surface/Suspended
Mounting location Ceiling
Application environment Indoor
Adjustable No
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 100000 h 1)
Lifespan L90/B10 at 25 °C 83000 h
Number of switching cycles 50000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 370 mA
ECG - Output ripple current < 10 %
Recommended control gear TRIDONIC/LCA 50W 100-400mA one4all lp PRE

Emergency lighting

Wattage in emergency operation mode 7,5 W
Luminous flux in emergency operation mode 999 lm

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD, EAC, UKCA
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

Additional product data

Added function VIVARES

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • High compatibility thanks to DALI-2 certification
  • Economical thanks to high luminous efficacy up to 155 lm/W
  • Easy and quick installation thanks to toolless connector box with 5- and 7-pole terminals
  • Modern and robust design
  • 5 years guarantee
Areas of application
  • Replacement for luminaires with mercury vapor or metal halide lamps
  • Warehouses
  • Logistics halls
  • Industrial and storage facilities
  • Discounters, supermarkets
  • Sports halls
  • Indoor sports facilities
Product features
  • DALI-2 certified
  • Different luminous flux and beam angle for mounting heights of ~ 4 m to ~10 m in 4000 K
  • Through-wiring cable already installed
  • Long Lifetime (L80/B10): up to 100,000 h
  • High color consistency: ≤ 3 SDCM
Equipment / Accessories
  • Suspension kit, ball-proof cover and angulation mounting kit available as separate accessory
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854164132 Folding box
1		 106 mm x 1,282 mm x 154 mm 3688.00 g 20.93 dm³
4099854164149 Shipping box
3		 1,312 mm x 488 mm x 143 mm 13163.00 g 91.56 dm³
User instruction / safety instructions
UI Lowbay Flex PDF (6.19 MB)
Legal information
Legal Insert LB FLEX D ALI PDF (293.47 KB)
Legal information
LS Insert LB FLEX DALI PDF (2.69 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
LB FLEX PDF (283.75 KB)
Product image: white background, diagonal
LOW BAY FLEX 1200 JPG (992.19 KB)
Product image: white background, diagonal
LB FLEX 1200 PNG (2.22 MB)
Product image: white background, diagonal, alternative image
LOW BAY FLEX 1200 JPG (972.79 KB)
Product image: white background, diagonal, alternative image
LOW BAY FLEX 1200 JPG (887.02 KB)
Product image: white background, diagonal, alternative image
LB FLEX 1500 Endcap op en PNG (4.78 MB)
Product image: white background, diagonal, alternative image
LB FLEX 1500 Endcap cl osed PNG (4.39 MB)

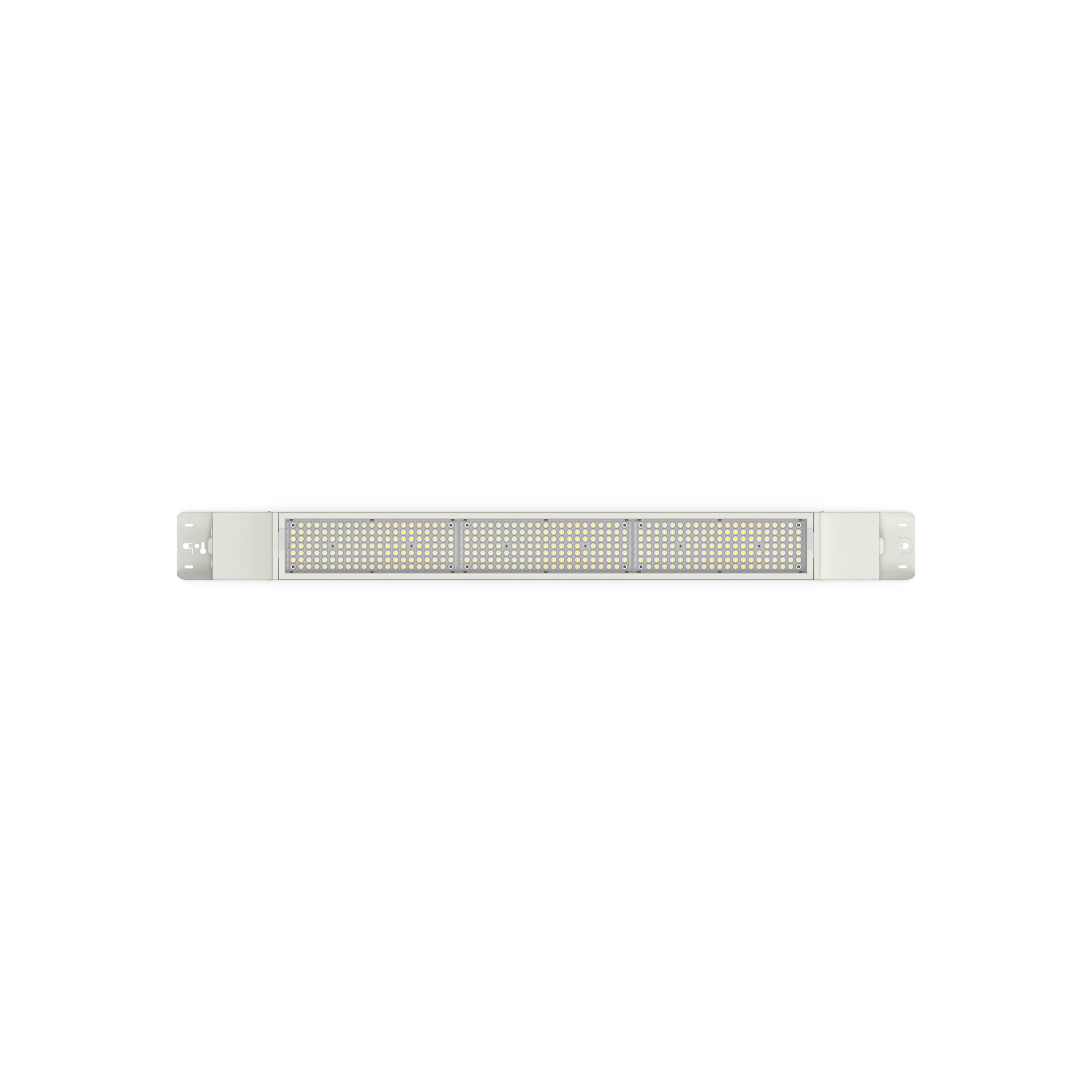

Product image: white background, horizontal
LB FLEX 1200 PNG (664.95 KB)
Product image: white background, upright
LOW BAY FLEX 1200 JPG (971.88 KB)
Product image: white background, upright
LOW BAY FLEX 1200 JPG (1.38 MB)
Product line drawing with letters
LOW BAY FLEX 1200 SVG (383.82 KB)
Product line drawing with numbers
LOW BAY FLEX 1200 SVG (389.54 KB)
Product line drawing - technical
LOW BAY FLEX 1200 SVG (379.4 KB)
Combo Shot = Product Beauty Shot + Packaging Image
LB FLEX 1200 DALI P 42 W 840 N JPG (921.72 KB)
Packaging image, frontal
LB FLEX 1200 DALI P 42 W 840 N JPG (762.65 KB)
Packaging image, spacial
LB FLEX 1200 DALI P 42 W 840 N JPG (806.12 KB)
Catalog info 1
Lowbay 1200 1500 ON OF F PNG (122.18 KB)
Catalog info 2
Lowbay 1200 1500 TH PNG (138.64 KB)
Catalog info 3
Lowbay 1200 1500 mount ing1 PNG (270.34 KB)
Catalog info 4
Lowbay 1200 1500 mount ing2 PNG (129.18 KB)
IES file (IES)
LB FLEX 1200 DALI P 42 W 840 N IES (10.7 KB)
LDT file (Eulumdat)
LB FLEX 1200 DALI P 42 W 840 N LDT (7.87 KB)
ULD file (DIALux)
LB FLEX 1200 DALI P 42 W 840 N ULD (187.39 KB)
ROLF file (RELUX)
LB FLEX 1200 DALI P 42 W 840 N ROLF (280.36 KB)
UGR file (UGR table)
LB FLEX 1200 DALI P 42 W 840 N PNG (60.77 KB)
Light distribution curve type cone
LB FLEX 1200 DALI P 42 W 840 N SVG (16.79 KB)
Light distribution curve type polar
LB FLEX 1200 DALI P 42 W 840 N SVG (17.79 KB)
BIM Revit 3D
LOW BAY FLEX ZIP (2.83 MB)
CAD STEP 3D
LB FLEX 1200 STEP (2.42 MB)
Application pictures
LEDVANCE luminaires Lo wBay Storage Corner JPG (12.1 MB)
EAN SEG number STK number EFO number
4099854164132 7219409 4324913 3361433
