LOW BAY FLEX 1200 DALI

Choose your product version

DALI P 42W 840 N

DALI P 42W 840 W

DALI P 42W 840 VW

DALI P 42W 840 OV

DALI P 73W 840 N

DALI P 73W 840 W

DALI P 73W 840 VW

DALI P 73W 840 OV

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
LB FLEX 1200 DALI P 42W 840 N 42 W 50000 60 ° 6510 lm Yes
LB FLEX 1200 DALI P 42W 840 W 42 W 50000 90 ° 6510 lm Yes
LB FLEX 1200 DALI P 42W 840 VW 42 W 50000 120 ° 6510 lm Yes
LB FLEX 1200 DALI P 42W 840 OV 42 W 50000 40 ° x 90 ° 6510 lm Yes
LB FLEX 1200 DALI P 73W 840 N 73 W 50000 60 ° 11315 lm Yes
LB FLEX 1200 DALI P 73W 840 W 73 W 50000 90 ° 11315 lm Yes
LB FLEX 1200 DALI P 73W 840 VW 73 W 50000 120 ° 11315 lm Yes
LB FLEX 1200 DALI P 73W 840 OV 73 W 50000 40 ° x 90 ° 11315 lm Yes


LB FLEX 1200 DALI P 73W 840 VW

Product benefits
  • Economical thanks to high luminous efficacy up to 155 lm/W
  • Easy and quick installation thanks to toolless connector box with 5- and 7-pole terminals
  • Modern and robust design
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 73 W
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 320 mA
Inrush current 17.3 A
Inrush current time Th50 164 µs
Max. number of luminaires per miniature circuit breaker B16 27
Max. number of luminaires per miniature circuit breaker C10 23
Max. number of luminaires per miniature circuit breaker C16 36
Power factor λ ≥0.90
Total harmonic distortion ≤ 20 %
Protection class I
Operating mode ELECTRONIC CONTROL GEAR (ECG)

Photometrical data

Luminous flux 11315 lm
Luminous efficacy 155 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra ≥80
Standard deviation of color matching < 3 sdcm
Low flicker Yes
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG1
Beam angle 120 °

Dimensions & Weight

Length 1236 mm
Height 65.00 mm
Width 115.00 mm
Product weight 3300.00 g

Materials & Colors

Product color White
Housing color White
Body material Steel
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -25…+50 °C
Temperature range at storage -20…+80 °C
Type of connection Screwless terminal
Type of protection IP23
Protection class IK (shock resistance) IK08
Dimmable Yes
Type of dimming DALI2
Mounting type Surface/Suspended
Mounting location Ceiling
Application environment Indoor
Adjustable No
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 100000 h 1)
Lifespan L90/B10 at 25 °C 83000 h
Number of switching cycles 50000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 310 mA
ECG - Output ripple current < 10 %
Recommended control gear TRIDONIC/LCA 50W 100-400mA one4all lp PRE

Emergency lighting

Wattage in emergency operation mode 14.7 W
Luminous flux in emergency operation mode 1787 lm

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD, EAC, UKCA
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

Additional product data

Added function VIVARES

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Economical thanks to high luminous efficacy up to 155 lm/W
  • Easy and quick installation thanks to toolless connector box with 5- and 7-pole terminals
  • Modern and robust design
  • 5 years guarantee
Areas of application
  • Replacement for luminaires with mercury vapor or metal halide lamps
  • Warehouses
  • Logistics halls
  • Industrial and storage facilities
  • Discounters, supermarkets
  • Sports halls
  • Indoor sports facilities
Product features
  • Different luminous flux and beam angle for mounting heights of ~ 4 m to ~10 m in 4000 K
  • Through-wiring cable already installed
  • Long Lifetime (L80/B10): up to 100,000 h
  • High color consistency: ≤ 3 SDCM
Equipment / Accessories
  • Suspension kit, ball-proof cover and angulation mounting kit available as separate accessory
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075676220 Folding box
1		 106 mm x 1,282 mm x 154 mm 3688.00 g 20.93 dm³
4058075676237 Shipping box
3		 1,312 mm x 488 mm x 143 mm 13163.00 g 91.56 dm³
Product image Product name EAN
LB FLEX SUSPENSION KIT 4058075693722
User instruction / safety instructions
UI Lowbay Flex PDF (6.19 MB)
Legal information
Legal Insert LB FLEX D ALI PDF (293.47 KB)
Legal information
LS Insert LB FLEX DALI PDF (2.69 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
EU Declaration of conf ormity LB FLEX DALI PDF (299.59 KB)
Product image: white background, diagonal
LOW BAY FLEX 1200 JPG (992.19 KB)
Product image: white background, diagonal
LB FLEX 1200 PNG (2.22 MB)
Product image: white background, diagonal, alternative image
LOW BAY FLEX 1200 JPG (972.79 KB)
Product image: white background, diagonal, alternative image
LOW BAY FLEX 1200 JPG (887.02 KB)
Product image: white background, horizontal
LB FLEX 1200 PNG (664.95 KB)
Product image: white background, upright
LOW BAY FLEX 1200 JPG (971.88 KB)
Product image: white background, upright
LOW BAY FLEX 1200 JPG (1.38 MB)
Product line drawing with letters
LOW BAY FLEX 1200 SVG (383.82 KB)
Product line drawing with numbers
LOW BAY FLEX 1200 SVG (389.54 KB)
Product line drawing - technical
LOW BAY FLEX 1200 SVG (379.4 KB)

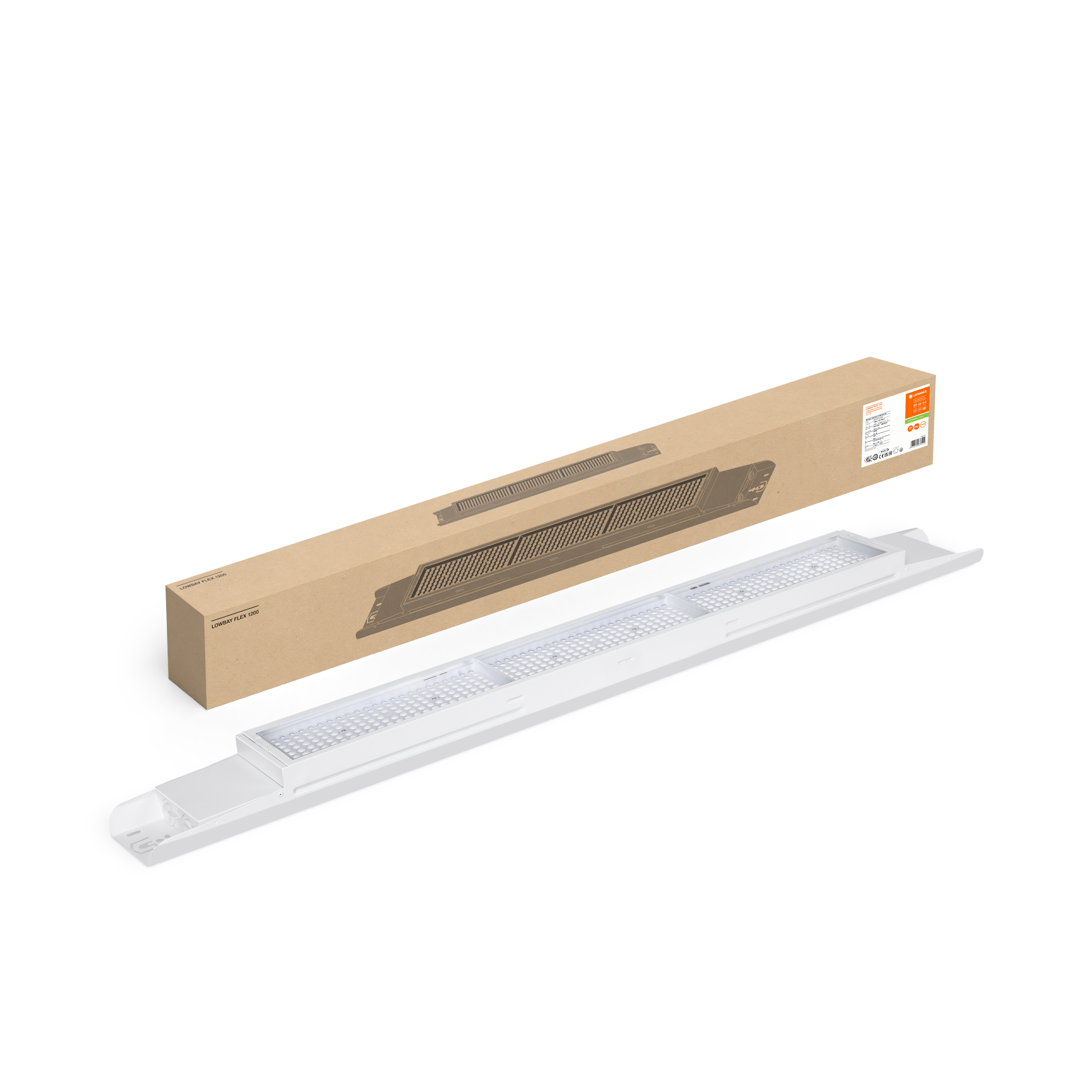

Combo Shot = Product Beauty Shot + Packaging Image
LB FLEX 1200 DALI P 73 W 840 VW JPG (921.73 KB)
Packaging image, frontal
FB Flex 1200 DALI P 73 W 840 VW JPG (762.64 KB)
Packaging image, spacial
LowBay Flex 1200 P WT MiCh JPG (806.14 KB)
Catalog info 1
Lowbay 1200 1500 DALI PNG (131.05 KB)
Catalog info 2
Lowbay 1200 1500 TH PNG (138.64 KB)
Catalog info 3
Lowbay 1200 1500 mount ing1 PNG (270.34 KB)
Catalog info 4
Lowbay 1200 1500 mount ing2 PNG (129.18 KB)
IES file (IES)
LB FLEX 1200 DALI P 73 W 840 VW IES (10.7 KB)
LDT file (Eulumdat)
LB FLEX 1200 DALI P 73 W 840 VW LDT (7.87 KB)
ULD file (DIALux)
LB FLEX 1200 DALI P 7 3W ULD (170.5 KB)
ROLF file (RELUX)
LB FLEX 1200 DALI ROLF (276.24 KB)

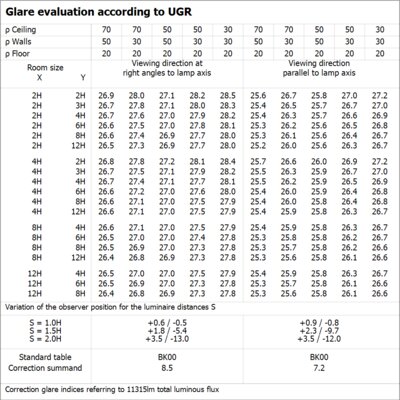

UGR file (UGR table)
LB FLEX 1200 DALI P 73 W 840 VW PNG (62.61 KB)
Light distribution curve type cone
LB FLEX 1200 DALI P 73 W 840 VW SVG (16.78 KB)
Light distribution curve type polar
LB FLEX 1200 DALI P 73 W 840 VW SVG (17.4 KB)
BIM Revit 3D
LOW BAY FLEX ZIP (2.83 MB)
CAD STEP 3D
LB FLEX 1200 STEP (2.42 MB)
Application pictures
LEDVANCE luminaires Lo wBay Storage Corner JPG (12.1 MB)
Application pictures
LEDVANCE luminaires Lo wBay Modern Production line JPG (4.39 MB)
EAN SEG number STK number EFO number ELDAS number
4058075676220 7216979 4324747 3311411 941309880
