Product description	Nominal wattage	Number of switching cycles	Beam angle	Luminous flux	Dimmable
BIOLUX HCL PL 1200 S 37W TW ZB	37.00 W	50000	90 °	4100 lm	Yes
BIOLUX HCL PL 600 S 40W TW ZB	40.00 W	50000	90 °	4400 lm	Yes
BIOLUX HCL PL 625 S 40W TW ZB	40.00 W	50000	90 °	4400 lm	Yes

BIOLUX HCL PL 1200 S 37W TW ZB

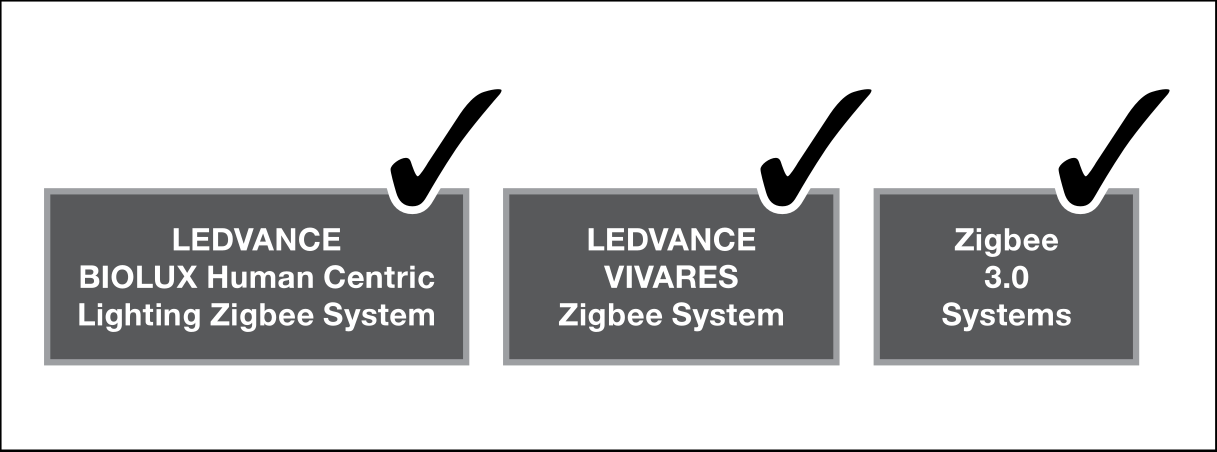

Suitable luminaire for BIOLUX, VIVARES and other Zigbee 3.0 light management systems for simple integration into partner systems
Compatible with VIVARES cloud services
Through-wiring possible with included connector box
Good glare reduction (UGR ≤ 19)
Low flicker light thanks to special electronic control gear
7 year system guarantee when operated in a BIOLUX HCL or VIVARES ZIGBEE system

Nominal wattage	37.00 W
Nominal voltage	220…240 V
Mains frequency	50…60 Hz
Nominal current	190.000 mA
Inrush current	8.8 A
Inrush current time T_h50	88 µs
Max. number of luminaires per miniature circuit breaker B16	74
Max. number of luminaires per miniature circuit breaker C10	46
Max. number of luminaires per miniature circuit breaker C16	74
Power factor λ	> 0.90
Total harmonic distortion	< 20 %
Protection class	II
Operating mode	External LED driver

Luminous flux	4100 lm
Luminous efficacy	110 lm/W
Color temperature	2700…6500 K
Light color (designation)	Tunable White
Color rendering index Ra	≥90
Standard deviation of color matching	3 sdcm
Low flicker	Yes
Flickering metric (Pst LM)	≤1
Stroboscope effect metric (SVM)	≤ 0.4
Photobiological safety group acc. to EN62778	RG0
Beam angle	90 °
UGR	< 19

Product color	White
Housing color	White
Body material	Aluminum
Cover material	Polymethylmethacrylate (PMMA)
Light emitting surface material	PMMA
Glow Wire Test according to IEC 60695-2-12	650 °C
Mercury content	0.0 mg

Ambient temperature range	-20…+40 °C
Temperature range at storage	-20…+80 °C
Type of connection	Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection	IP20/IP20
Protection class IK (shock resistance)	IK02
Dimmable	Yes
Type of dimming	ZIGBEE
Dimming range	0…100 %
Mounting type	Recessed
Mounting location	Ceiling
Application environment	Indoor
Mounting length	1190 mm
Mounting width	290,0 mm
Mounting depth	50,0 mm
Adjustable	No
With light source	Yes

Standards	CE, CB, ENEC, UKCA, EAC
Luminaire with limited surface temperature, "D sign"	No
Ball shot safe	No
Replaceable light source (EPREL)	Not replaceable

Added function

VIVARES, BIOLUX

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits

Suitable luminaire for BIOLUX, VIVARES and other Zigbee 3.0 light management systems for simple integration into partner systems
Compatible with VIVARES cloud services
Through-wiring possible with included connector box
Good glare reduction (UGR ≤ 19)
Low flicker light thanks to special electronic control gear
7 year system guarantee when operated in a BIOLUX HCL or VIVARES ZIGBEE system

Areas of application

Available for grid sizes of 600 x 600 mm, 625 x 625 mm and 1200 x 300 mm
BIOLUX HCL system: Lighting solution for single office areas with up to 48 BIOLUX HCL products
VIVARES Zigbee system: Open-plan office solution for up to 200 BIOLUX HCL products
Hotel and office rooms with little daylight
Nursery and elderly homes

Product features

Equipment / Accessories

Connector box with 5-pole terminal included
External control gear included
LEDVANCE BIOLUX app required for commissioning of the BIOLUX HCL system only (available for Android and iOS)
LEDVANCE VIVARES app for project planning and required for commissioning of the VIVARES ZIGBEE system only (available for Android and iOS)
Accessories for several mounting options available

Legal advice

The use of the LEDVANCE BIOLUX- / VIVARES-app is exclusively subject to the LEDVANCE BIOLUX- - VIVARES-app Terms of Use, which are displayed during installation of the app and are available in the app

Safety advice

Important operating notice and legal disclaimer: This product is intended for operation as part of a BIOLUX HCL system (BIOLUX HCL- or VIVARES ZIGBEE control unit in combination with BIOLUX HCL-Luminaire(s) / BIOLUX HCL LED strips including built-in or supplied firmware/software). LEDVANCE GmbH assumes no responsibility, liability, warranty or guarantee for the operation of the product in combination or conjunction with third-party products or other products that are not BIOLUX HCL- / VIVARES ZIGBEE system products.

References / Links

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075724587	Folding box 1	1,308 mm x 51 mm x 374 mm	3816.00 g	24.95 dm³
4058075724594	Shipping box 2	1,328 mm x 123 mm x 397 mm	8582.00 g	64.85 dm³

Product image	Product name	EAN
	PANEL 1200x300 RECESSED MOUNT FRAME	4058075472976
	PANEL 1200 Surface Mount Kit	4058075108820
	PANEL RECESSED MOUNT CLIPS VAL 4x	4058075409859
	PANEL Suspension Kit	4058075402928
	PANEL 1200 X 300 SF MOUNT KIT H70 VAL	4099854018497
	PANEL SECURITY KIT 4x	4058075472990
	BIOLUX HCL CONTROL UNIT S ZB	4058075724624
	ZIGBEE 3.0 DALI CONV LI	4062172044776
	VIVARES ZB O SENS 220-240	4058075544222
	VIVARES ZB CONTROL	4058075427488
	VIVARES ZB COUPLER	4058075463806
	VIVARES ZB L/O SENS 220-240	4058075446182
